Technical specifications

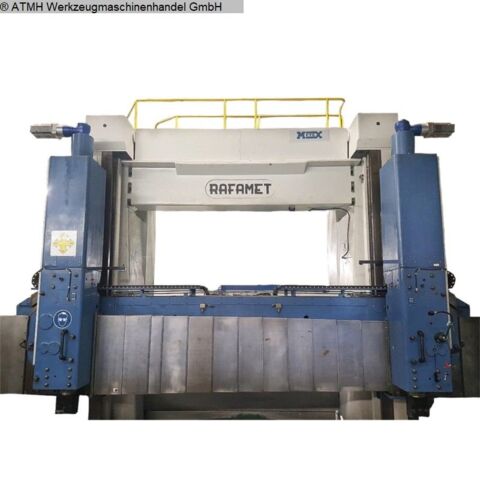

Machine type: CNC vertical lathe
Manufacturer: Rafamet
Year of manufacture: 1973 conventional
General overhaul with control retrofit 2010
Control upgrade 2016
Control: Siemens 840 D Sl
Condition: very good
faceplate
Turning diameter of the faceplate 3,200 mm
Number of rotation stages of the face plate 3 (infinitely variable)
Speed ??ranges of the faceplate 0.8 - 40 rpm
Level I 0.8 – 3 rpm
Level II 0.8 - 11 rpm
Level III 0.8 – 40 rpm
processing of workpieces
Max. turning diameter 3,500 mm
Max. turning height of the workpieces above the faceplate 2,200 mm
vertical supports
Smallest axis distance between the vertical supports 470 mm
Largest ram travel of the left vertical support 985 mm
Largest ram travel of the right vertical support 985 mm
Axis Feeds - Infinitely variable feed
Max.: X1.2 3m/min
max.: z1.2 2.5 m/min
Plunger cannot be pivoted
Support crossbar
Rapid feed of the cross beam 600 mm/min
Larger distance of the cross beam to the faceplate 2,300 mm
load sizes
+Permissible turning force when turning workpieces with a
turning diameter of 2,000 mm and a turning speed
of 20 m/min. 8,000kg
+Largest chip cross-section for workpieces made of steel Fz = 50 kg/mm²
at a turning speed of 20 m/min for all supports 45 mm²
+Largest chip cross-section for workpieces made of steel Fz = 50 kg/mm²
at a rotation speed of 20 m/min for a vertical support
with max. plunger length 985 mm 2.5 mm²
+Largest chip cross-section for cast iron workpieces HB = 160 kg/mm²
at a turning speed of 20 m/min for all supports 120 mm²
+Largest chip cross-section for cast iron workpieces HB = 160 kg/mm²
at a rotation speed of 20 m/min for a vertical support
with max. plunger length 985 mm 22.5 mm²
+Largest permitted workpiece weight at 0.8 - 3.15 rpm 17,500 kg
+Largest permitted workpiece weight at 4 - 40 rpm 7,500 kg
electric motors
Main drive motor power and revolutions 51 kW
Power of the feed motors of:
- Vertical support beam (2 pieces) 16 Nm (gear 1:10)
- Tappet (2 pieces) 16 Nm (gear 1:12)
Power and revolutions of the drive motor
of the hydraulic pumps (2 pieces) 3kW - 1,500 rpm
Power and revolutions of the clamp hydraulic motor
of the vertical support beam 1.5 kW - 1,500 rpm
Power and rotation for crossbar adjustment 15 kW - 1500 rpm
3.5 Information on the compressed air supply and other consumables
Compressed air connection: 6 bar free of oil and water
3.6 Energy Consumption Conditions
Voltage: 3 x 400V
Control Voltage: 24V
Frequency: 50Hz
Fusing: 315 A
Main dimensions and weight of the machine
Length 7,730mm
Width 6,240mm
Height: 6,700mm
Weight: 85,750 kg
Tool:
Capto 60 recording
Not powered
front panel
Turning diameter of the front plate 3,200 mm
Clamping disc diameter 3,400 mm
Number of rotation levels of the front panel 3 (continuously adjustable)
Front panel speed ranges 0.8 - 40 rpm
Level I 0.8 - 3 rpm
Level II 0.8 - 11 rpm
Level III 0.8 - 40 rpm
processing of workpieces
Max. turning diameter 3,500 mm
Max. turning height of the workpieces above the front panel 2,200 mm
Vertical supports
Smallest center distance between the vertical supports 470 mm
Largest glide path of the left vertical support 985 mm
Maximum glide path of the right vertical support 985 mm
Axis feed - stepless feed
max.: X1.2 3m/min
max.: z1.2 2.5 m / min
Support - mirror
Fast feeding of the crossbeam 600 mm/min
Greater distance between the crossbar and the front panel 2,300 mm
loading sizes
Permissible torque when turning workpieces with a
Turning diameter of 2,000 mm and turning speed
from 20 m / min. 8,000 kg
Largest chip cross-section for workpieces made of steel Fz = 50 kg / mm2
at a speed of 20 m / min for all supports 45 mm2
Largest chip cross-section for workpieces made of steel Fz = 50 kg / mm2
at a speed of 20 m / min for a vertical support
at max. piston length 985 mm 2.5 mm2
Largest chip cross section for workpieces made of cast iron HB = 160 kg / mm2
at a speed of 20 m / min for all supports 120 mm2
Largest chip cross section for workpieces made of cast iron HB = 160 kg / mm2
at a speed of 20 m / min for a vertical support
with max. piston length 985 mm 22.5 mm2
Largest permissible workpiece weight at 0.8 - 3.15 rpm 17,500 kg
Largest permissible workpiece weight at 4 - 40 rpm 7,500 kg
electric motors
Main drive motor power and revolutions 51 kW
Power of the feed motors of:
- Vertical support rod (2 pieces) 16 Nm (gear 1:10)
- Tappet (2 pieces) 16 Nm (gear 1:12)
Power and revolutions of the drive motor
of hydraulic pumps (2 pieces) 3 kW - 1,500 rpm
Power and revolutions of the clamp hydraulic motor
of the vertical support rod 1.5 kW - 1,500 rpm
Power and rotation to adjust the crossbar 15 kW - 1500 rpm
Information on compressed air supply and other consumables
Compressed air connection: 6 bar free of oil and water
Energy consumption, conditions
Voltage: 3 x 400V
Control Voltage: 24V
Frequency: 50Hz
Protection: 315 A
noise and waste emissions
Noise level under load 80.4 dB (A)
Sinumerik control: Type 840 D sl
Main dimensions and weight of the machine
Length 7,730mm
Width 6,240mm
Height: 6,700mm
Weight: 85,750 kg
Weight clamp disc: 7,500 kg
