GERD WOLFF KLY 2DT 650
Bandsaw - Horizontal
- BRAND NEW -
| Order-No. | 16125 |
| Make | GERD WOLFF |
| Built in | 2022 |
| Origin | Turkey |
| Condition | NEW |
| Location | Ennepetal |
| Delivery Terms | as per agreement |
| Quotation | Free on truck from location |
| Price | upon request |
| cutting diameter |
|---|
| 660 mm |
| saw band length |
|---|
| 9000 x 54 mm |
| cutting width |
|---|
| 1,6 mm |
| Capacity 90° - round |
|---|
| 660 mm |
| Capacity 90° - square |
|---|
| 650 x 650 mm |
| Capacity 90° - rectangle |
|---|
| 650 x 1080 mm |
| Capacity 45° - round |
|---|
| 660 mm |
| Capacity 45° - square |
|---|
| 650 x 650 mm |
| Capacity 45° - rectangle |
|---|
| 650 x 670 mm |
| Capacity 30° - round |
|---|
| 410 mm |
| Capacity 30° - square |
|---|
| 410 x 410 mm |
| Capacity 30° - rectangle |
|---|
| 650 x 410 mm |
| total power requirement |
|---|
| 5,5 kW / 2775 Nm |
| weight of the machine ca. |
|---|
| 7100 kg |
| dimensions of the machine ca. |
|---|
| 2500 x 2200 x 4500 mm |

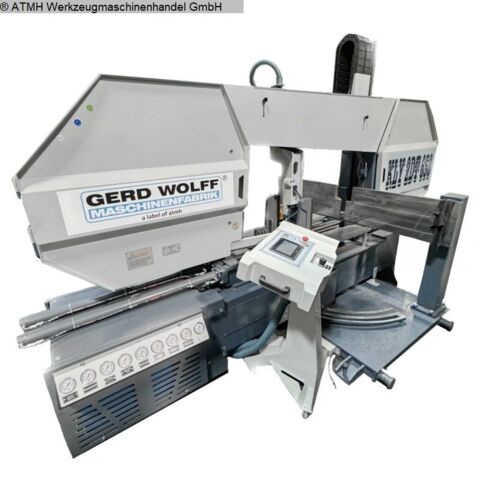

The KSY 2DT 650 is a semi-automatic and column-guided horizontal bandsaw.
The machine also has a driven roller table, which is 2 metres long on the front
has a spray mist has a spray mist cooling system. Equipped with a linear
guided saw blade, the KSY 2DT 650 can perform precise and fast Mitre cuts.
Standard Specifications
- Swarf Brush
- Hydraulic Blade Guide
- Hydraulic Vice
- Hydraulic Blade Tension
- Automatic Angle Rotation
- PLC TouchScreen
- Blade Breakage Switch / Stop System
- Led Lighting
- Swarf Conveyor
- Carrying
- 2 Pieces 2 Meter Roller Table
- USB Connection Output
Optional Specifications
- Motorized system for roller table
- Laser Line
- Lubrication mist
- Extra double roller table
The pictures are for orientation only and do not represent a true-to-scale
image of the machine.
