T-slot clamping plates & customised modular clamping fields
Large-dimensioned cast iron clamping plates for mechanical engineering and heavy industry
We supply high-precision T-slot clamping plates and complete modular clamping fields made of high-quality HT250 / EN-GJL-250 cast iron for industrial applications.
In addition to standard sizes, we also carry out large special projects and complete clamping surfaces consisting of several precision-machined cast iron plates that are assembled to form an exact and stable overall surface.

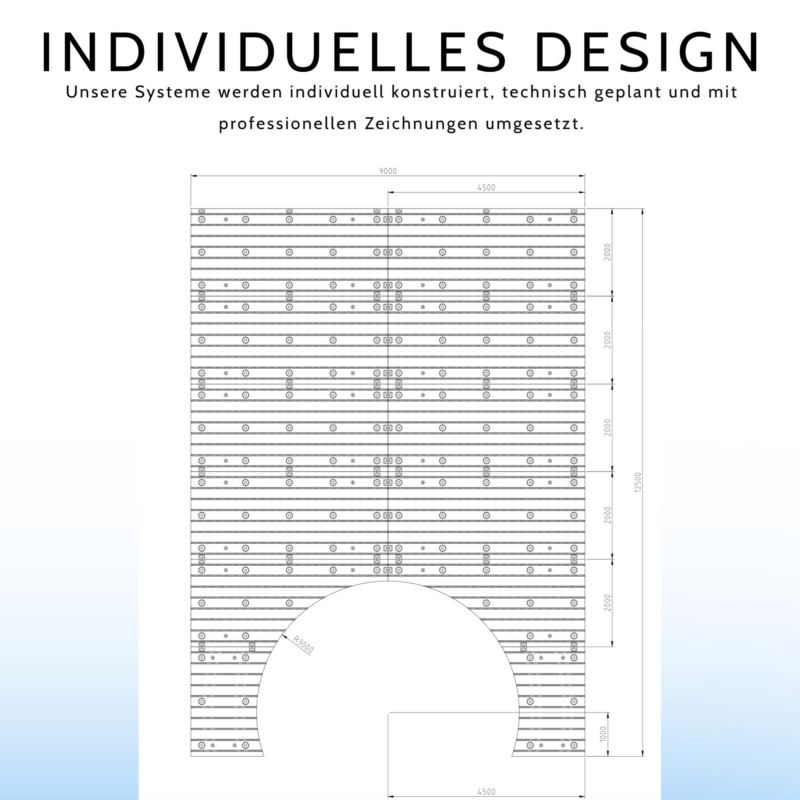

Our systems are individually designed, technically planned and implemented with professional drawings.
Modular clamping plates – creating large plate fields
Large work surfaces are constructed economically using modular cast iron plates.
Example of a current project:
Plate field:
12,000 × 12,000 × 300 mm
Construction:
18 individual plates
each 4,000 × 2,000 × 300 mm

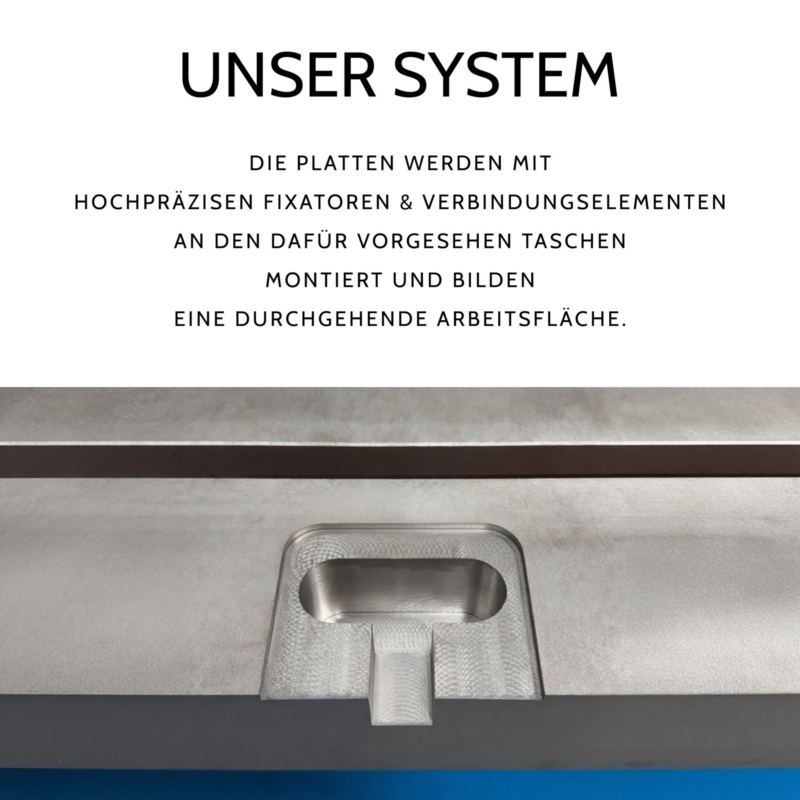

The panels are assembled using high-precision fixings and connecting elements to form a continuous work surface that looks and functions like a single large clamping plate.

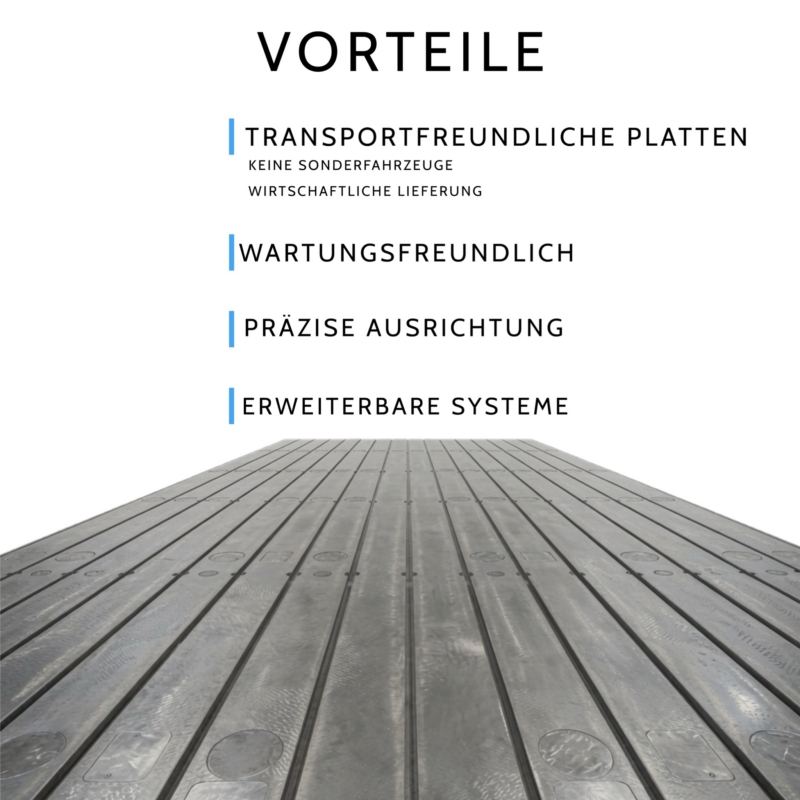

Advantages of the modular system:
Easy-to-transport individual panels
Precise alignment on site
Expandable systems
Cost-effective production of large work surfaces
Easy to maintain
Technical properties
Material:
HT250 / EN-GJL-250 grey cast iron
Manufacturing:
Low-stress annealed
Artificial ageing
Precise CNC machining
High-quality surface finishing
Surface quality:
DIN 876 / III
T-slots:
According to DIN 650
Flatness:
= 0.12 mm
Casting quality:
No cracks
No pores
No cavities
No sand holes
The castings are additionally cleaned, deburred and treated with corrosion protection.
Individual configuration
All mounting plates can be manufactured entirely according to customer requirements.
Freely selectable:
T-slot width
T-slot depth
T-slot spacing
Number of slots
Edge distances
Bores
Fitting bores
Fixator positions

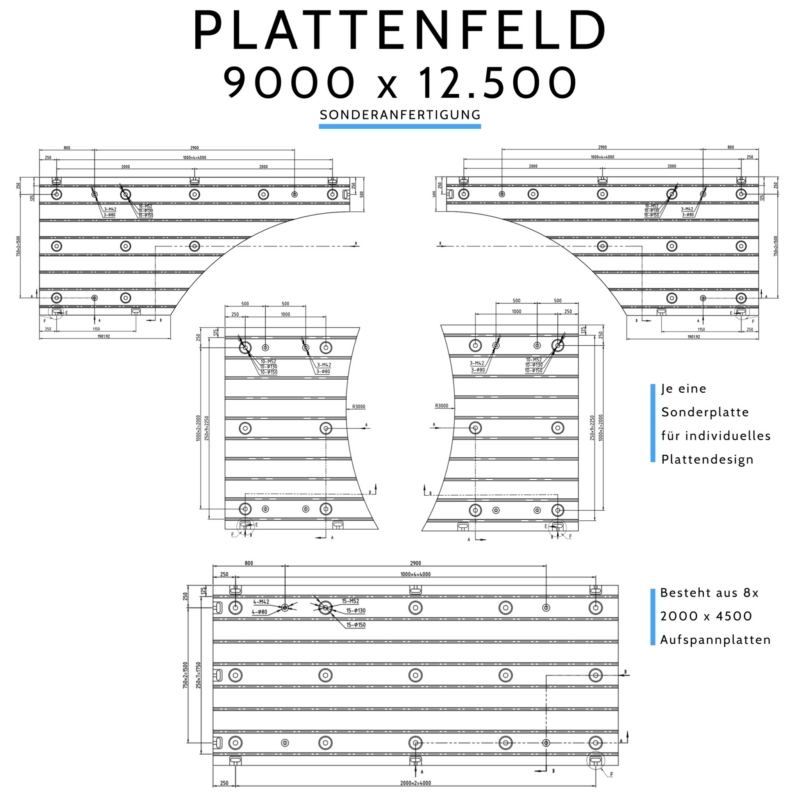

Customised clamping plates – examples
1000 × 1000 × 300 mm
2000 × 2000 × 200 / 300 mm
3000 × 1500 × 500 mm
3500 × 2500 × 400 mm
4000 × 3000 × 300 mm
5000 × 1500 × 300 mm
6000 × 1500 × 300 mm
7000 × 3000 × 300 mm
Large-scale systems:
8000 × 8000 × 300 mm
10000 × 10000 × 300 mm
12000 × 12000 × 300 mm
20000 × 20000 × 300 mm
30000 × 30000 × 300 mm
Plate width: freely selectable
Plate depth: freely selectable
Plate height: freely selectable
Complete solution for industrial projects
We offer more than just individual clamping plates.
Our services:
? Technical consulting
? Customised design
? Technical drawings
? Manufacture of cast plates
? Delivery of fixators and connection systems
? Planning of foundation anchors
? Support with assembly and alignment
Typical areas of application
Mechanical engineering
Heavy industry
Welding systems
Large-scale machining
Fixture construction
Assembly systems
Testing and measuring systems
Our project process
To ensure that every project can be implemented exactly according to customer requirements, planning is carried out in a clearly structured process:
1. Enquiry from the customer
The customer briefly describes their requirements.
2. Technical form
We send the customer a form in which all important technical data is entered:
Desired plate size
Plate height
T-slot layout
Groove spacing
Load
Area of application
3. Technical drawing
Based on this information, our design department creates a technical drawing of the clamping system.
4. Quotation
Along with the drawing, the customer receives a detailed quotation for the complete system.
This ensures that the geometry, function and price are precisely tailored to the project.
