GILDEMEISTER NEF-280
Center Lathe
| Order-No. | TT2028 |
| Make | GILDEMEISTER |
| Built in | 1980 |
| Condition | excellent (used) |
| Delivery Terms | According to the arrangement |
| Quotation | Free on truck from location |
| Price | upon request |
| turning length |
|---|
| 750 mm |
| greates pass round over bed |
|---|
| 280 mm |
| weight of the machine ca. |
|---|
| 1,2 t |
| required space |
|---|
| 2,70 x 1,00 x 1,70 m |

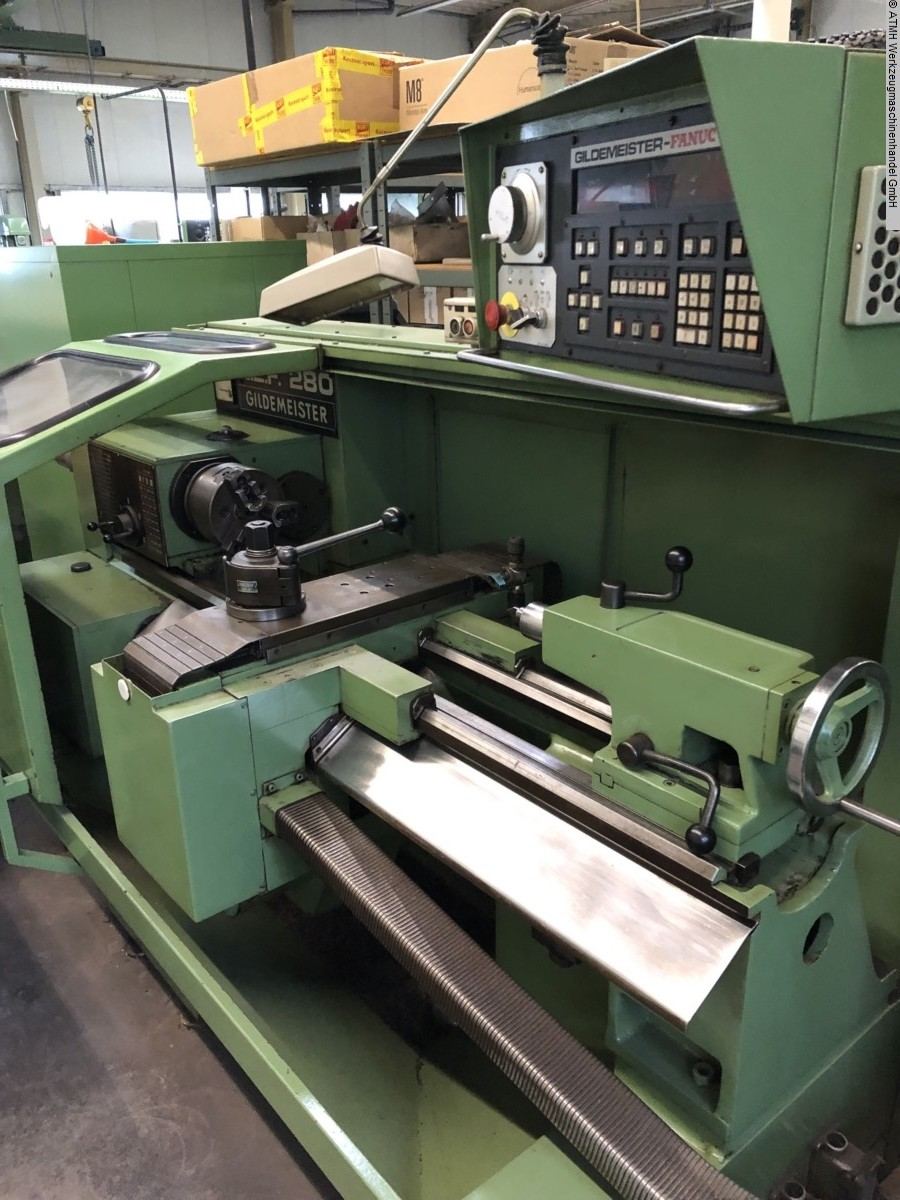

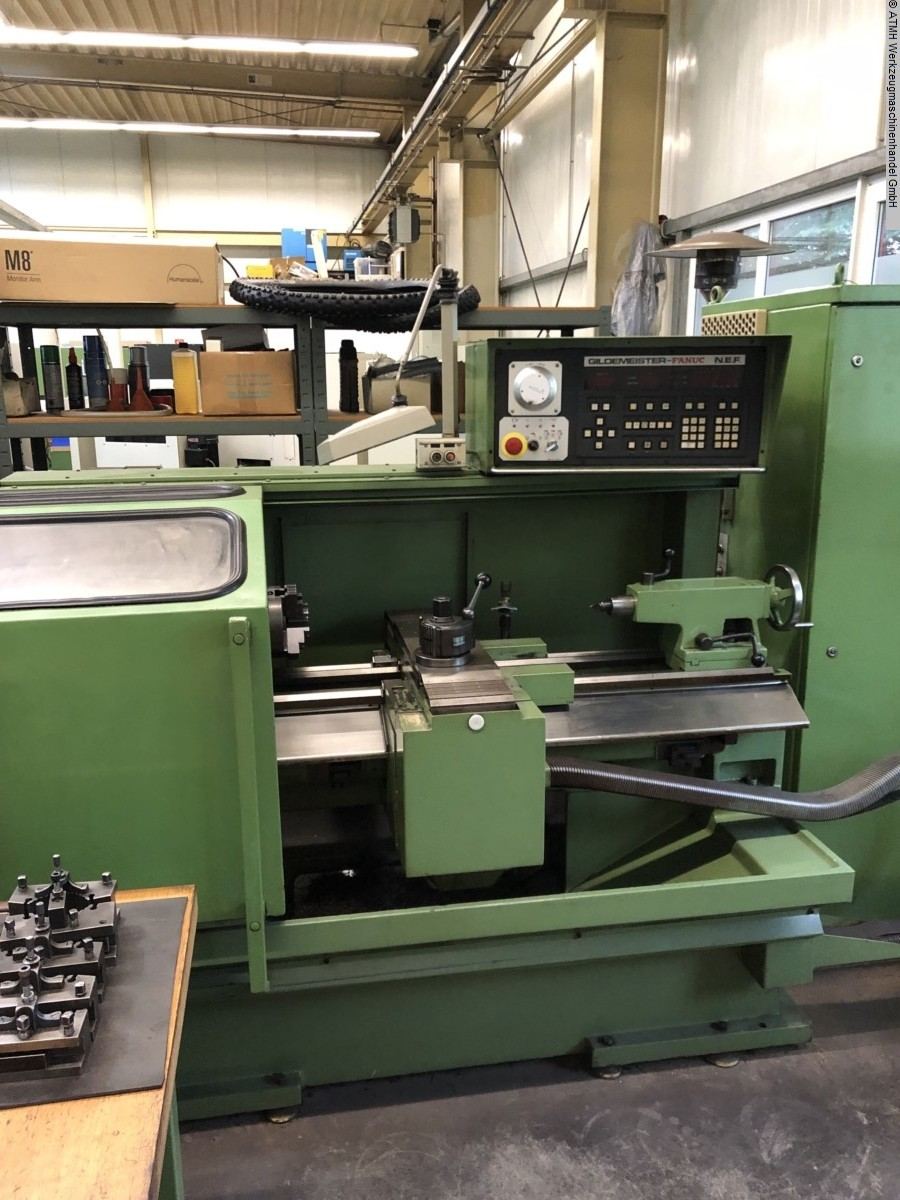

Universal lathe Gildemeister
Model: NEF 280
Year of construction: 1980
Weight: 1200 kg
Rotation over bed: D 280mm
Turning length: 750 mm
Spindle bore : D 32 mm
Tailstock: MK3
Quill adjustment by hand 120mm
Electric cooling pump : 52l/min
Power clamping device : Electric forkard chuck type AZLE 140
Cassette recorder terminal (programme archiving
Condition : (used) ready for use only used in toolmaking
External dimensions :
Width : 2700 Depth : 1000 Height: 1700
Weight : 1700 kg
