Sawing diameter (round): 260 mm
Sawing diameter (square): 260 mm
Sawing diameter (rectangular): 300 x 260 mm
Saw blade dimensions: 4200 x 34 x 1.1 mm

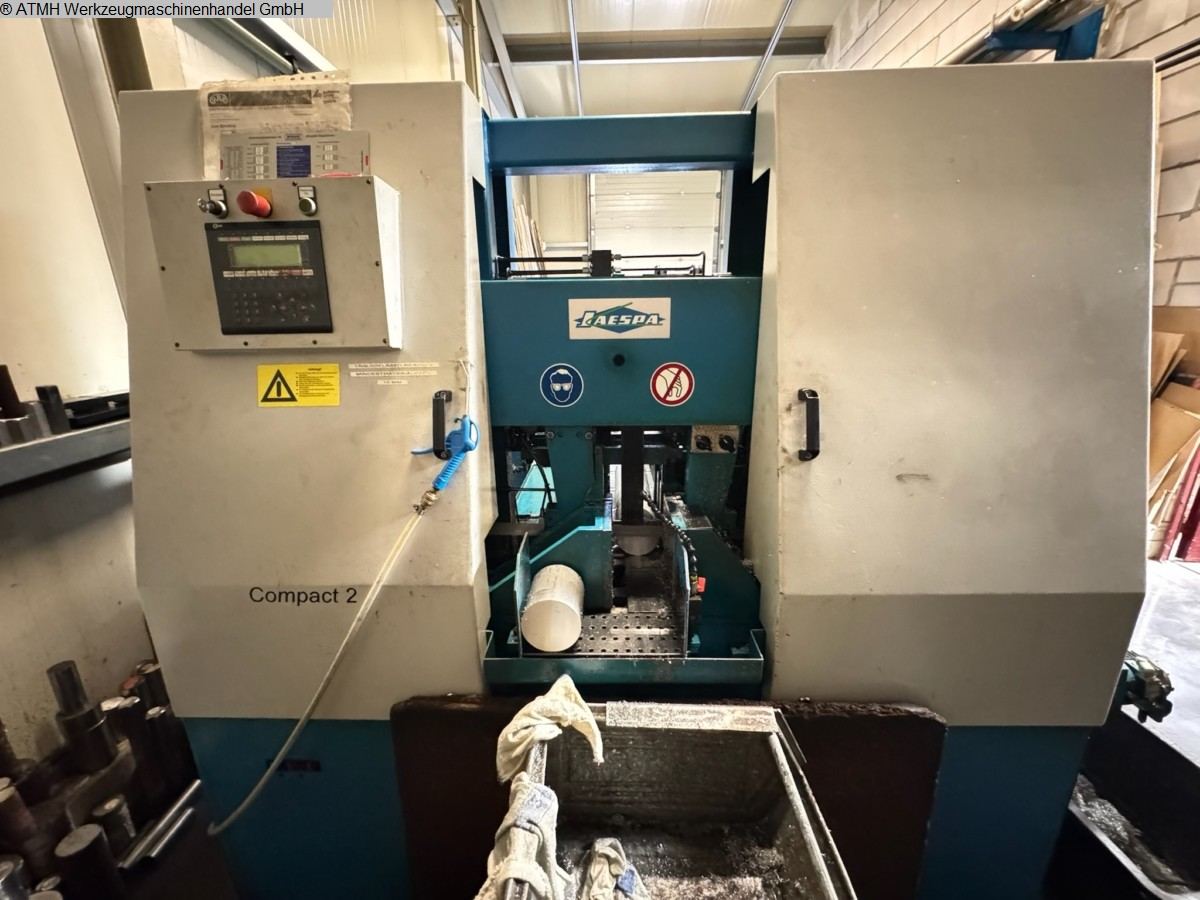

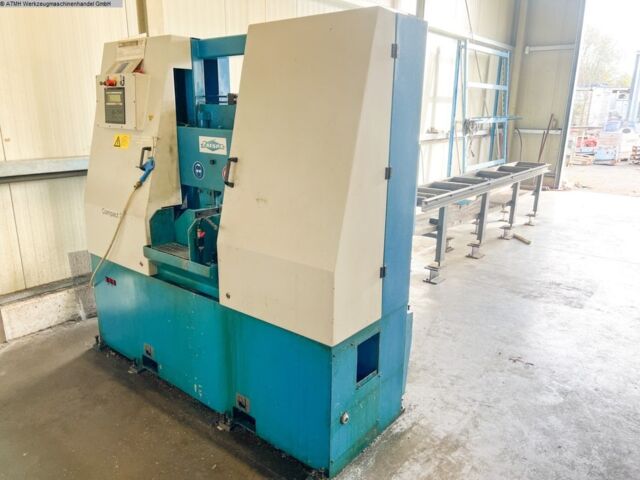

High-performance band saw automatic machine, heavy-duty hydraulic
production band saw
Parallel sawing feed system in profile guide rails
Mitsubishi NC program control E1032 for preselection of 90 sets, each with
a specific quantity and corresponding cut length
PLC control Mitsubishi
With Siko incremental encoder
Material feed with ball screw spindle 950 mm in one stroke, any desired cut
length from 3 mm – 9999 mm

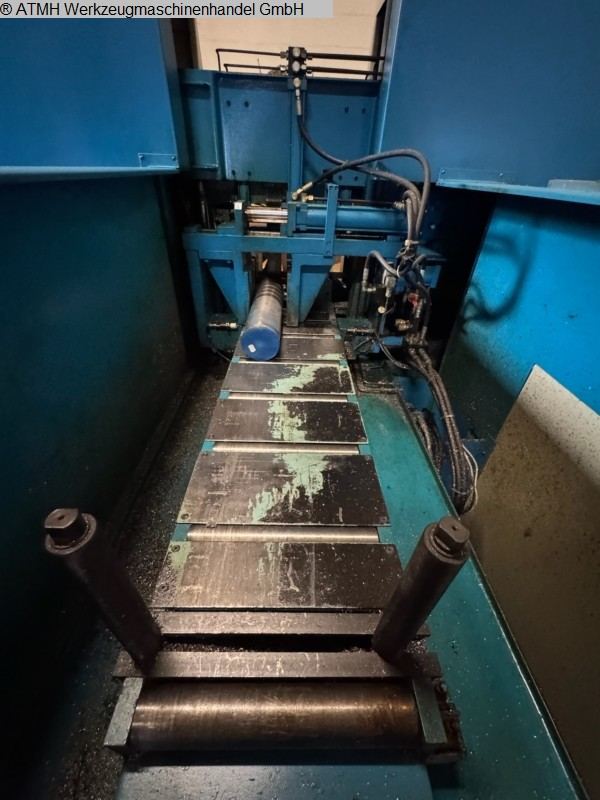

Hydraulic material clamping with long-stroke cylinder, opening on both sides
Material clamping with double vice in front of and behind the saw blade
Remaining piece length in automatic mode: 90 mm
Max. cutting length in automatic mode: unlimited
Material support height: 850 mm
Net weight: 2300 kg
Dimensions W x H x D mm: 2580 x 2000 x 2000
