PADOVANI - LABOR 230
PADOVANI - LABOR 230

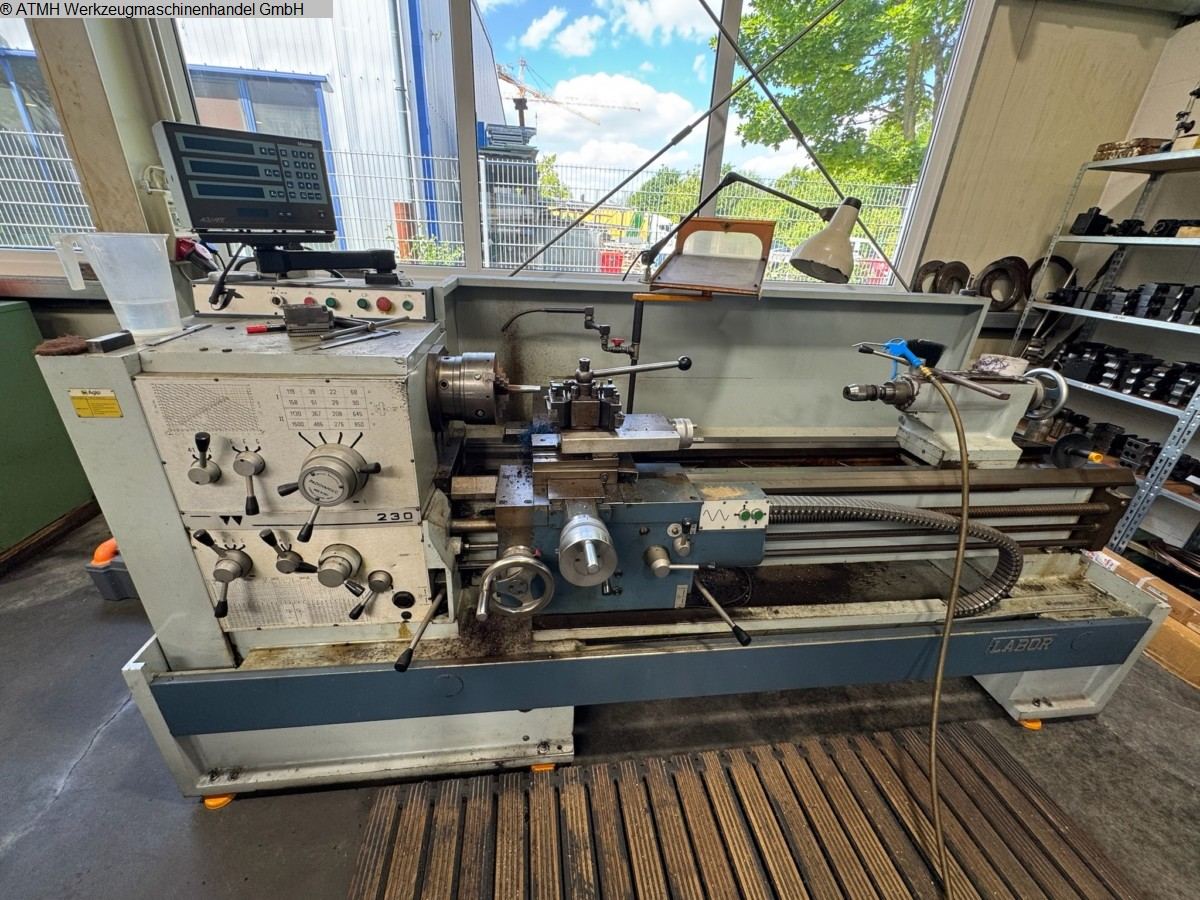

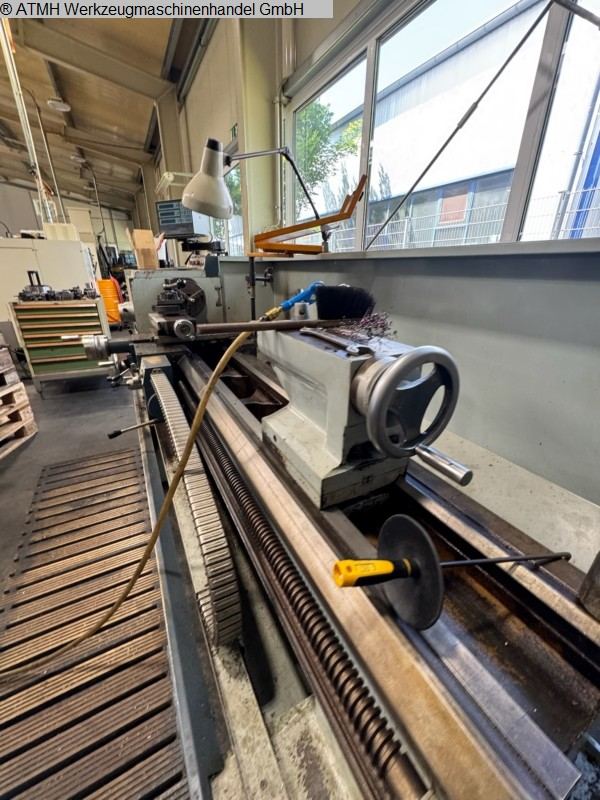

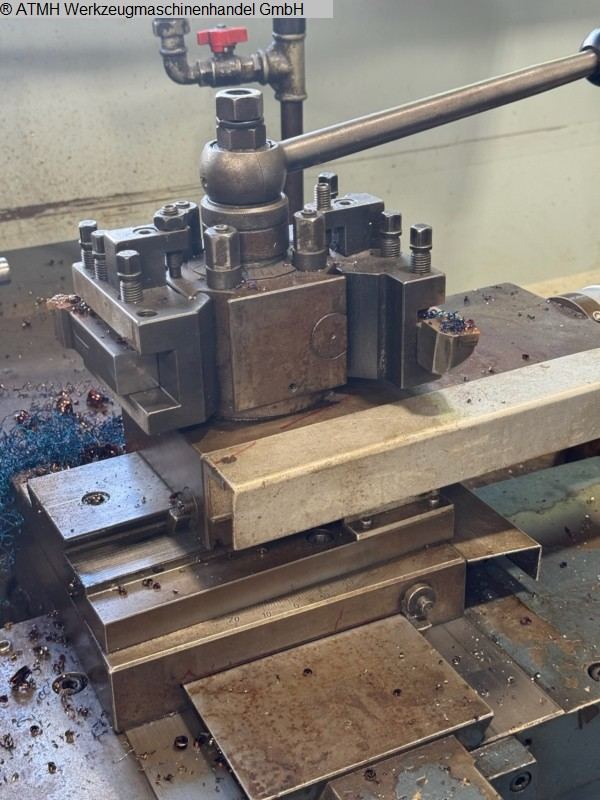

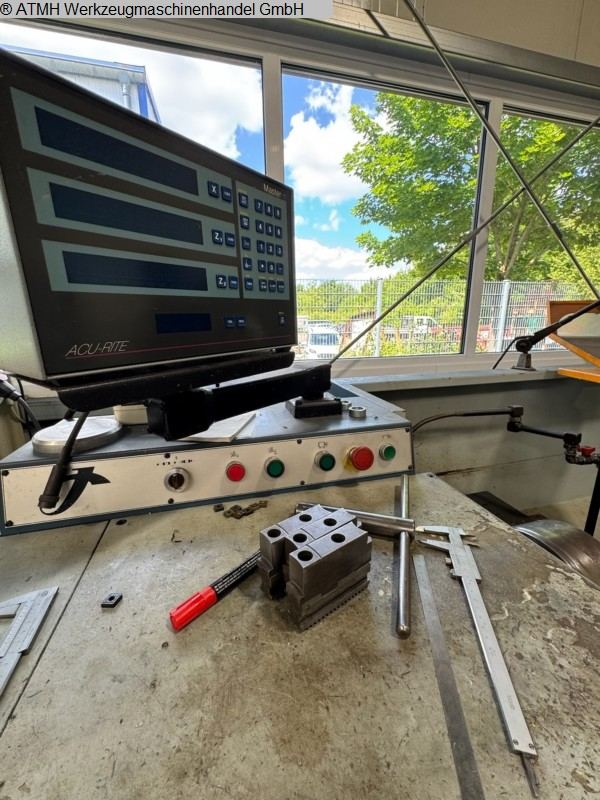

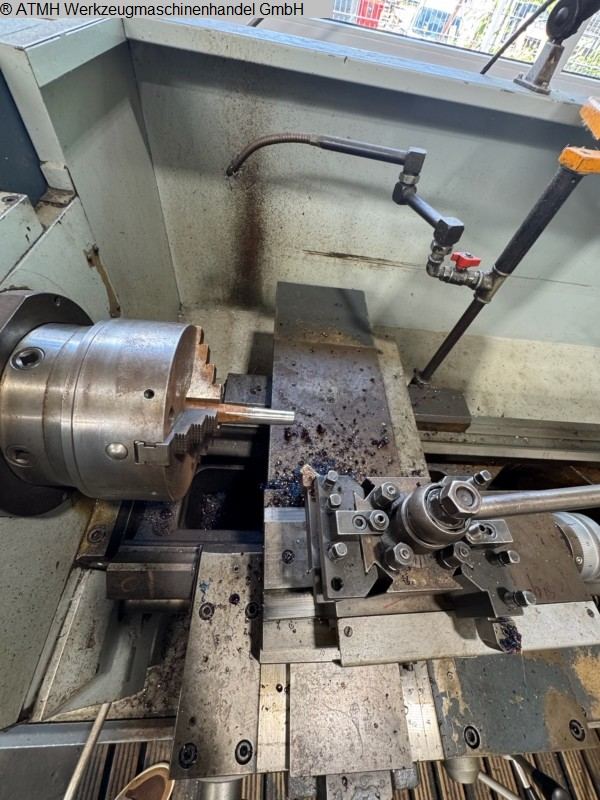

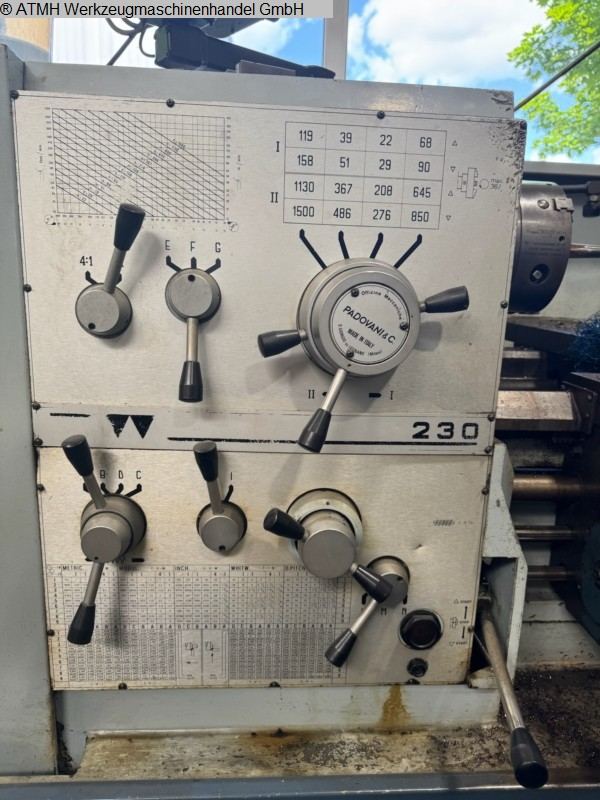

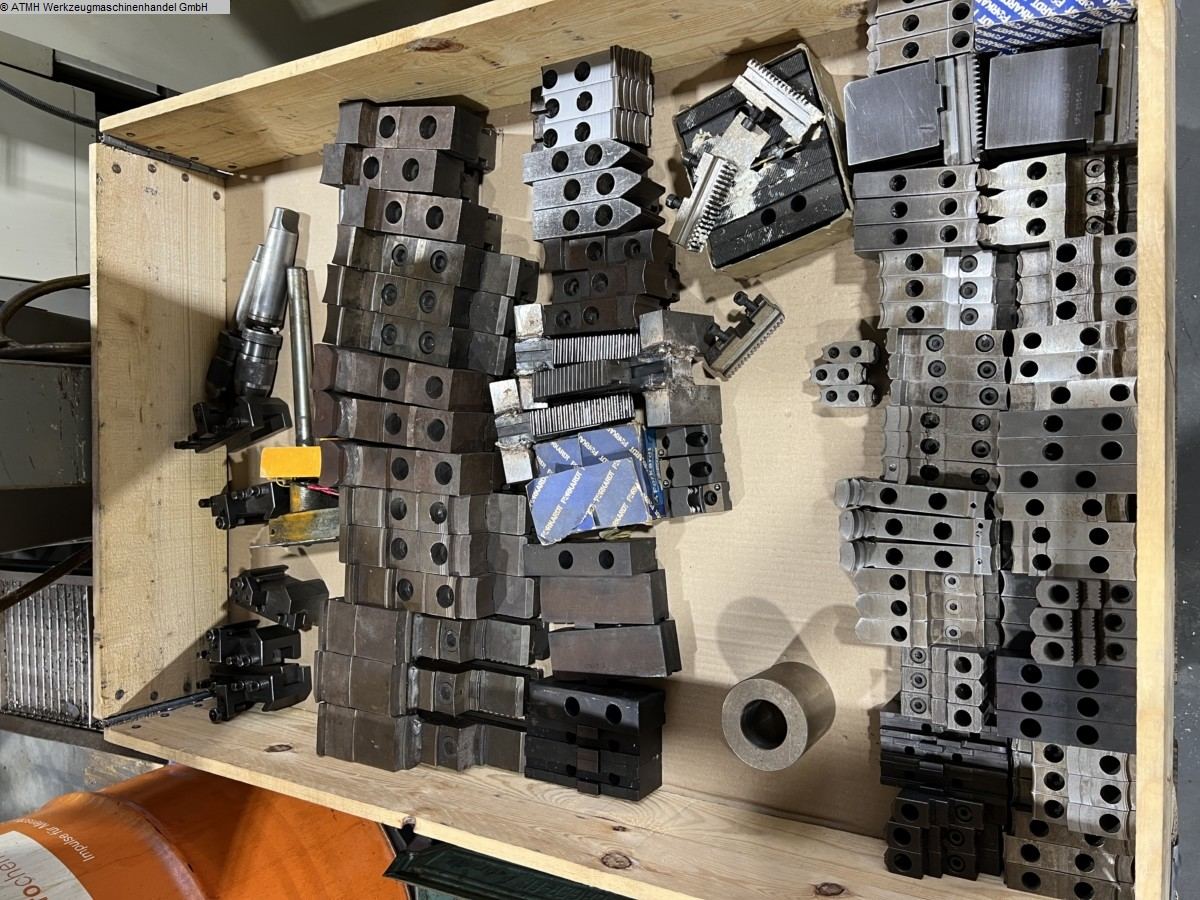

PADOVANI LABOR 230

lathe-conventional-electronic

Order-No.TT2013
MakePADOVANI
OriginDeutschland
Conditionused
LocationGermany
Delivery Termsimmediately
QuotationFree on truck from location
Priceupon request

Technical data - Model 230

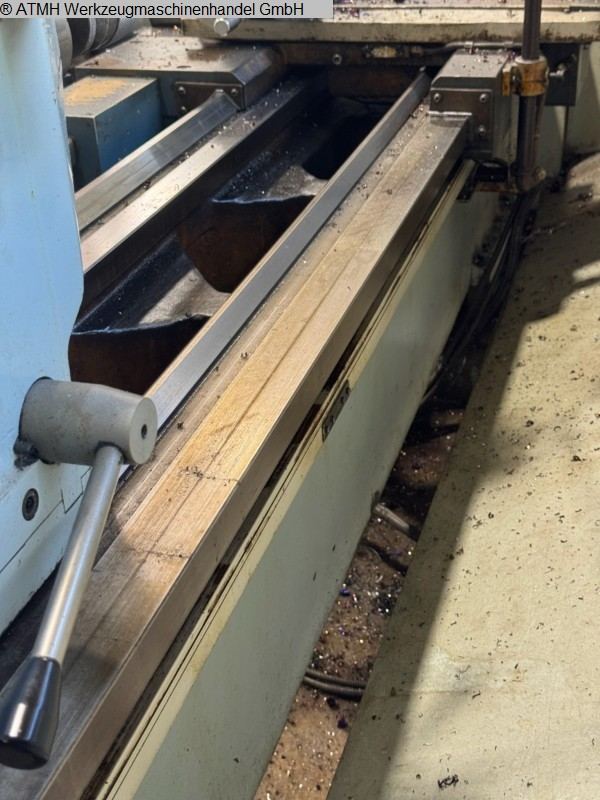

DIMENSIONS
Centre height on the bed: 230 mm
Spacing between centres:
1000-1500 mm
2000-2500 mm
3000 mm
Bed width: 360 mm
Largest turning Ø:
on the bed: 465 mm
on the carriage: 278 mm
on fixed steady rest: 200 mm
on travelling steady rest: 160 mm
CROWNING
Width of the crank: 300 mm
Distance between face plate edge and offset: 150 mm
Largest turning Ø on the offset: 690 mm

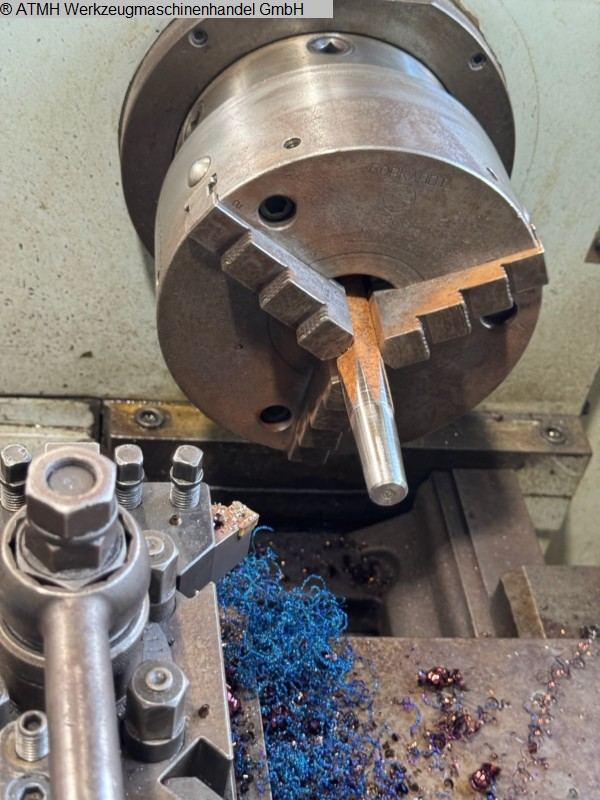

SPINDLE
Ø of front bearing (inside): 110 mm
Ø of rear bearing (inside): 95 mm
Ø of hole: 77 mm
Mounting Type - Cam Lock: 6"
Internal spindle taper - taper: 1 : 20
Spindle taper - C. M. - N.: 5
Speed ranges:
Slow feed - rev. 1': 15÷1000
Normal feed - rev. 1': 22÷1500
Fast feed - rev. 1': 30÷2000

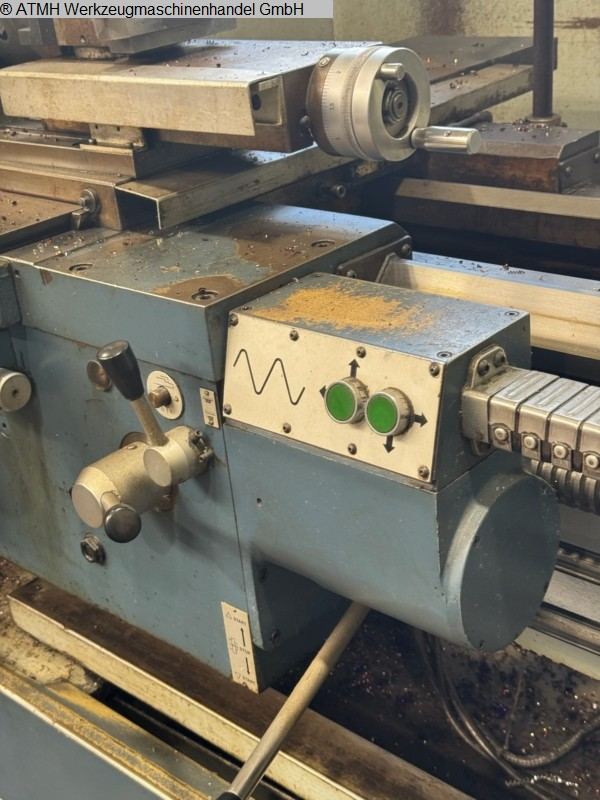

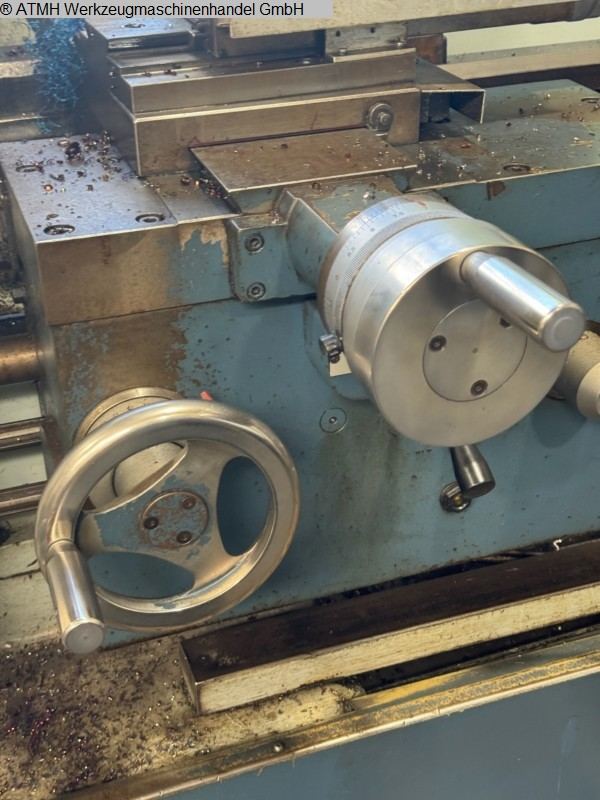

FEEDS (without gear change)-N.: 108
Longitudinal feed range at revs. : 0.04÷4 mm
Transverse feed range at revolution: 0.02÷2 mm
Lead screw - Ø: 40 mm
Lead screw pitch: 12 mm
THREAD (without gear change)
Metric - N. 54 to: 0.5÷28 mm
Module - N. 54 to Module: 0.25÷14
Whitworth - N. 54 to Wt. x 1": 56÷1
Diametral Pitch - N. 54 to D.P.: 112÷2
Inch - N. 54 to Inch: 1/32 ÷ 13 3/4"
SPINDLE PIT
Quill Ø: 75 mm
Quill barrel: 220 mm
Quill taper - vices N. 5
POWER
Main motor - HP: 10
Pump motor - HP: 0.25
WEIGHT approx. - kg
2000-2220
2530-2720
2920
ON REQUEST
Main motor - HP
