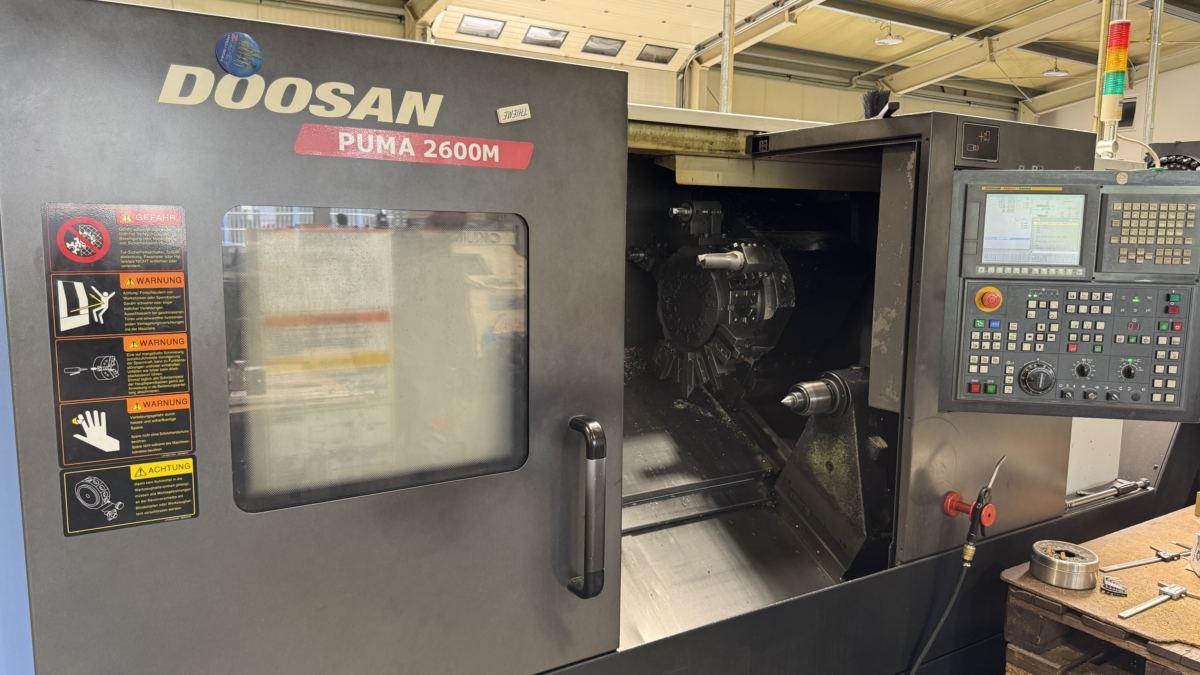

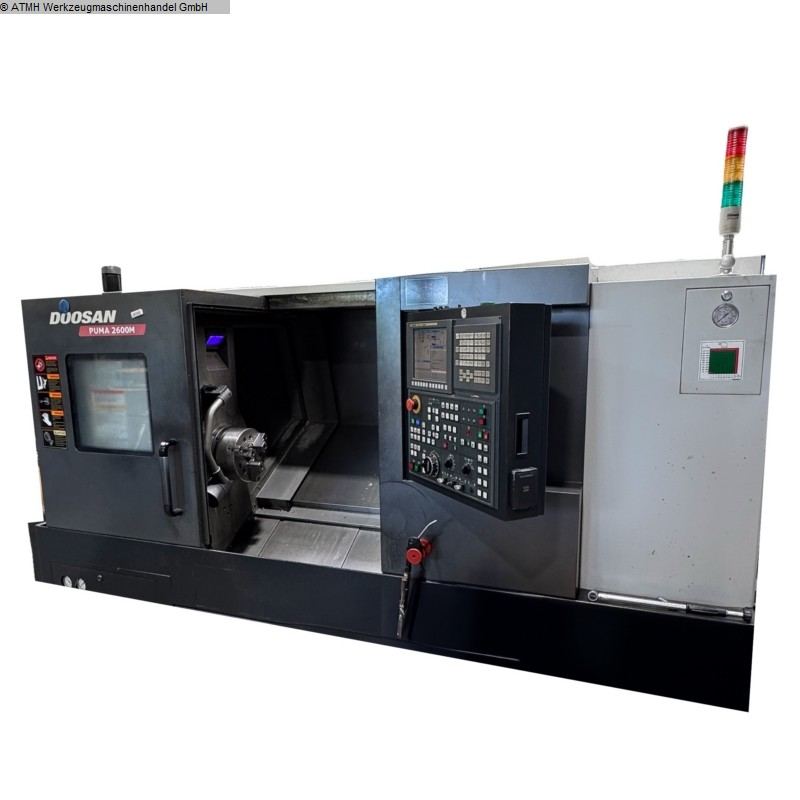

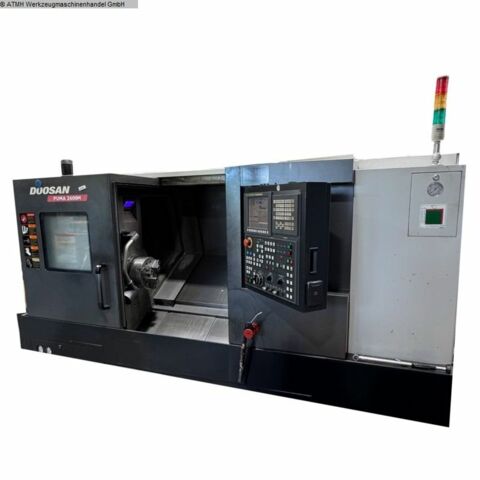

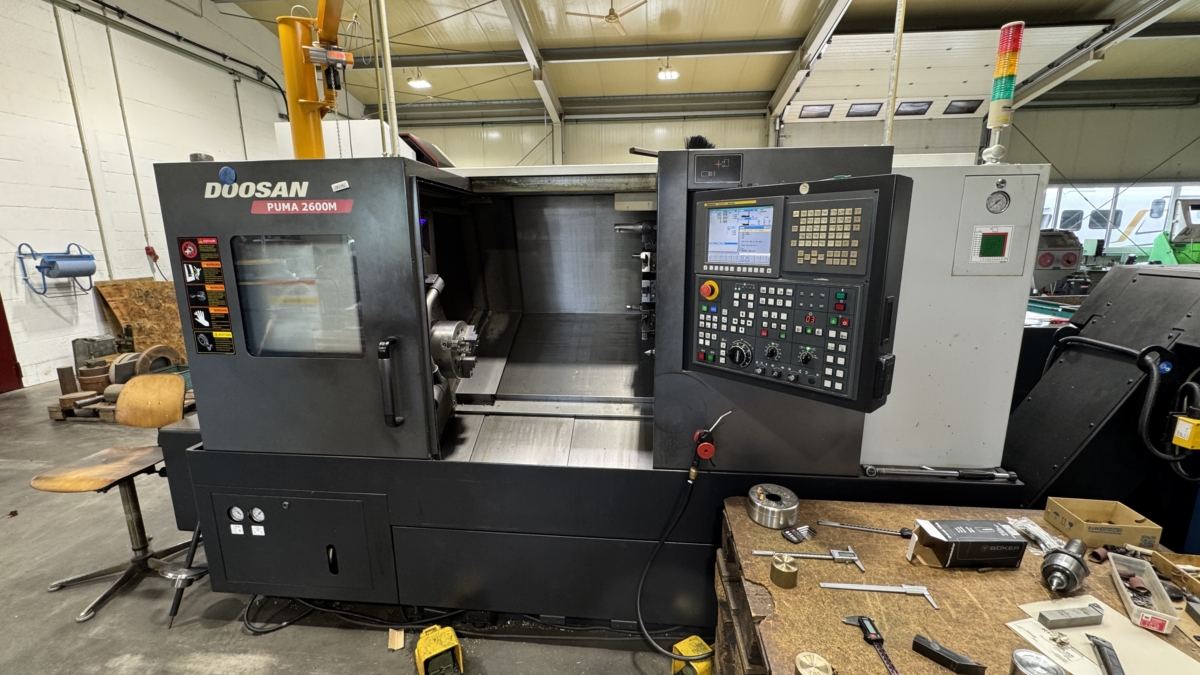

The PUMA 2600M is a versatile CNC turning center equipped with driven tools and a C-axis, enabling complete machining operations including turning, drilling, and milling in a single setup. Ideal for mid-size workpieces, this machine offers excellent stability, precision, and performance for a wide range of industrial applications.
Year of manufacture: 2013

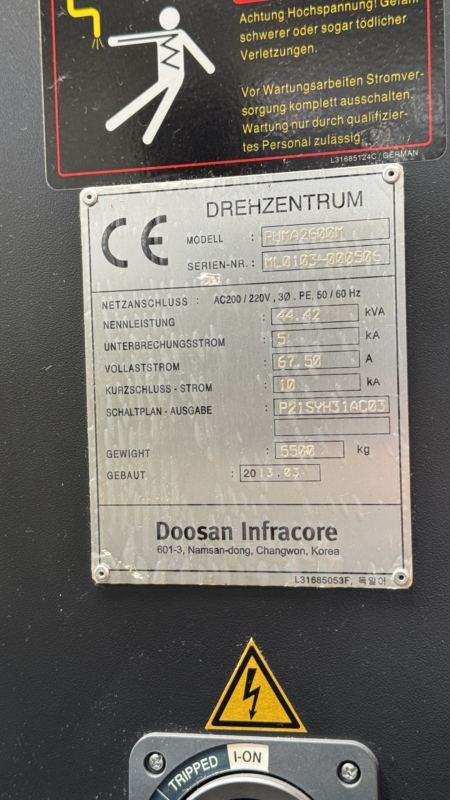

Serial number: ML0103-000506
Capacity
Swing over bed: 780 mm
Swing over saddle: 630 mm
Recommended turning diameter: 255 mm
Max. turning diameter: 376 mm
Max. turning length: 760 / 1280 mm
Bar capacity: 76 mm

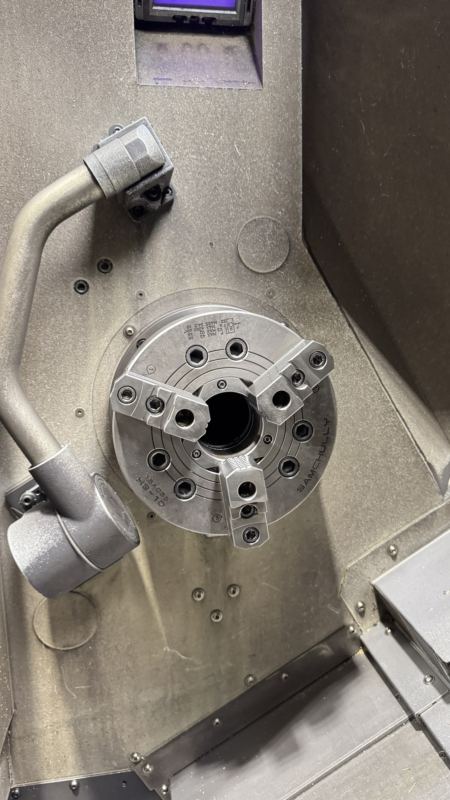

Spindle
Spindle speed (belt type): 3500 rpm
Spindle nose: ASA A2
Front spindle bearing diameter: 140 mm
Spindle bore: 86 mm
Minimum indexing angle (C-axis): 0.001°

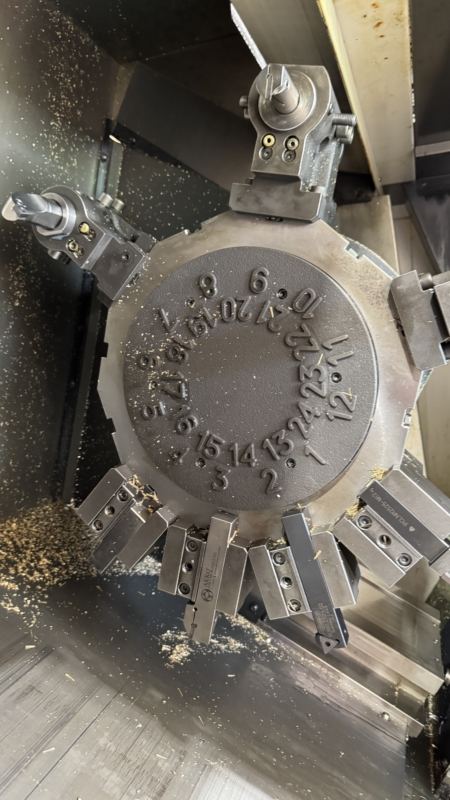

Turret
Number of tool stations: 12 (optional 24)
OD tool size: 25 (20) mm
Boring bar diameter: 50 (40) mm
Indexing time (1st swivel): 0.15 s
Rotary tool spindle speed: 5000 rpm
Carriage (Axes)
X-axis travel: 260 mm (72 + 188 mm)
Z-axis travel: 830 / 1350 mm
Feedrates
Rapid traverse X-axis: 30 m/min
Rapid traverse Z-axis: 30 m/min

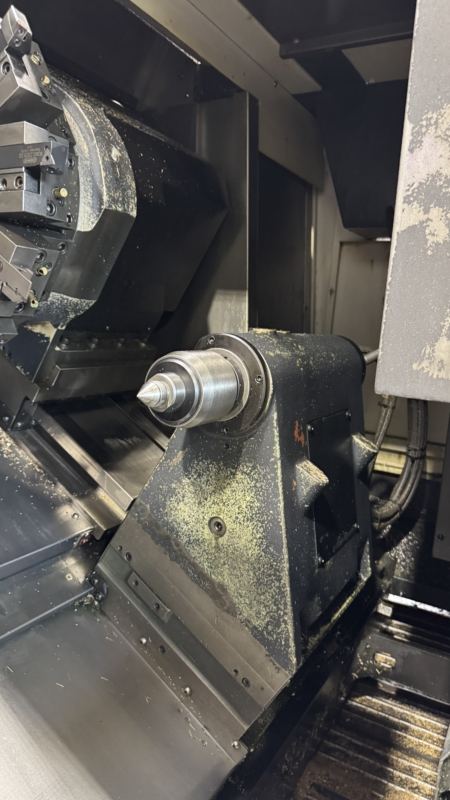

Tailstock
Quill diameter: 100 mm
Quill taper (live): MT#5
Quill travel: 100 mm
Motors
Main spindle motor: 22 / 18.5 kW
Rotary tool spindle motor: 5.5 (7.5) kW
Feed motors (X, Z, Y, B-axis): 3.0 / 4.0 kW
Coolant pump motor: 0.4 kW
Machine Dimensions
Machine height: 1900 mm
Machine length: 3600 / 4335 mm
Machine width: 1863 / 1952 mm
Machine weight: 5550 / 6850 kg

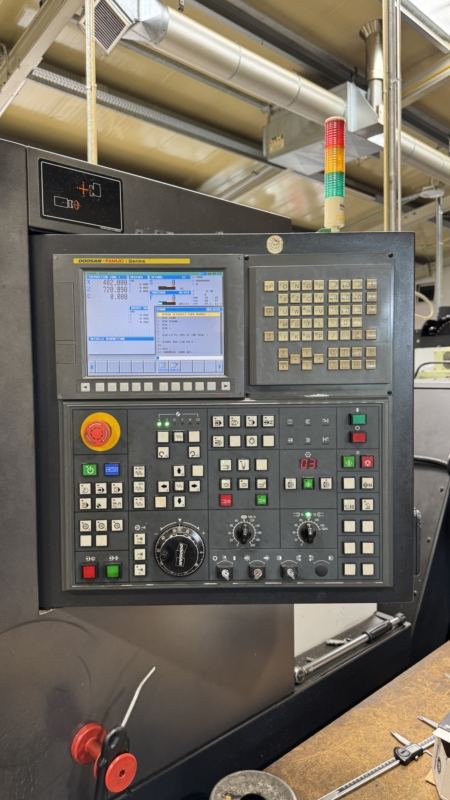

CNC Control System
FANUC 0iD / 31iA
