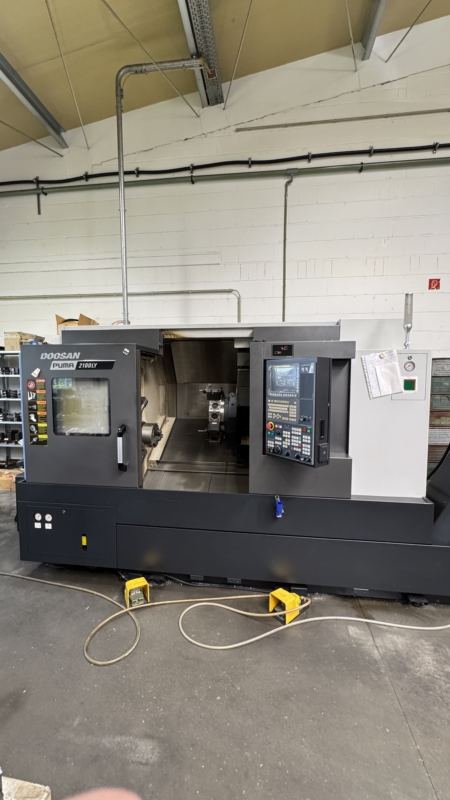

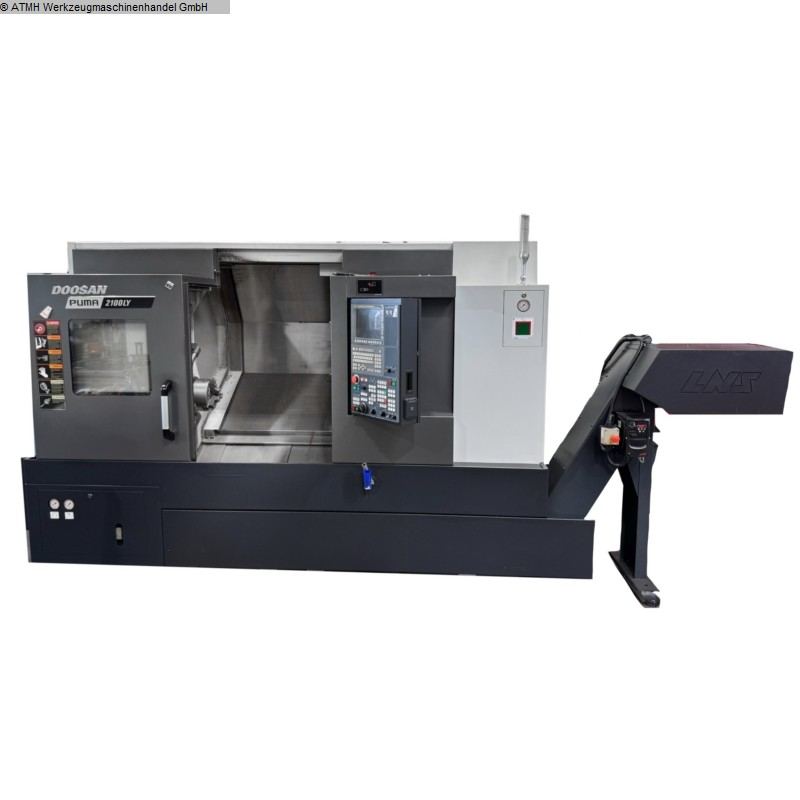

PUMA 2100LY – CNC Turning and Milling Center
The PUMA 2100LY is a high-performance CNC turning and milling center equipped
with a Y-axis, driven tools, and a C-axis, enabling precise complete machining
of complex workpieces in a single setup. This machine is ideally suited for
demanding applications in the automotive, mechanical engineering, and
subcontracting industries that require high flexibility and accuracy.
Weight: 5950 kg
Year of manufacture: 2017

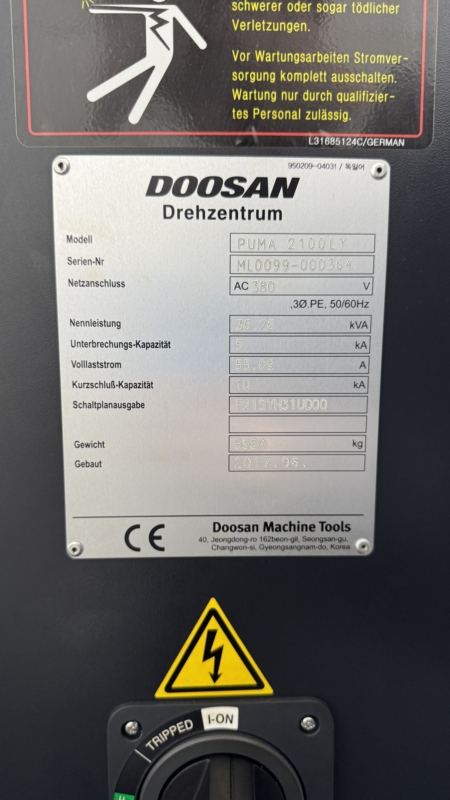

Serial number: ML0099-000364
Capacity
Swing over bed: 780 mm
Swing over saddle: 630 mm
Recommended turning diameter: 210 mm
Max. turning diameter: 406 mm
Max. turning length: 520 / 760 mm
Bar capacity: 65 mm

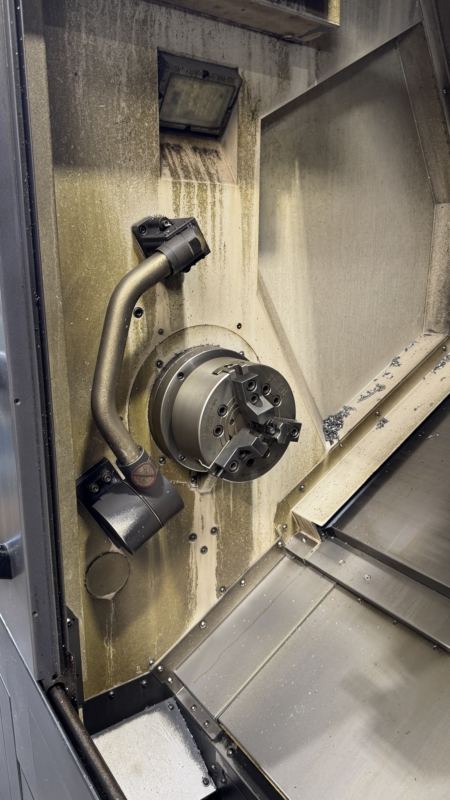

Spindle
Spindle speed (belt drive): 4500 rpm
Spindle speed (built-in motor): 5000 rpm
Spindle nose: ASA A2
Front spindle bearing diameter: 120 mm
Spindle bore: 76 mm
Minimum indexing angle (C-axis): 0.001°

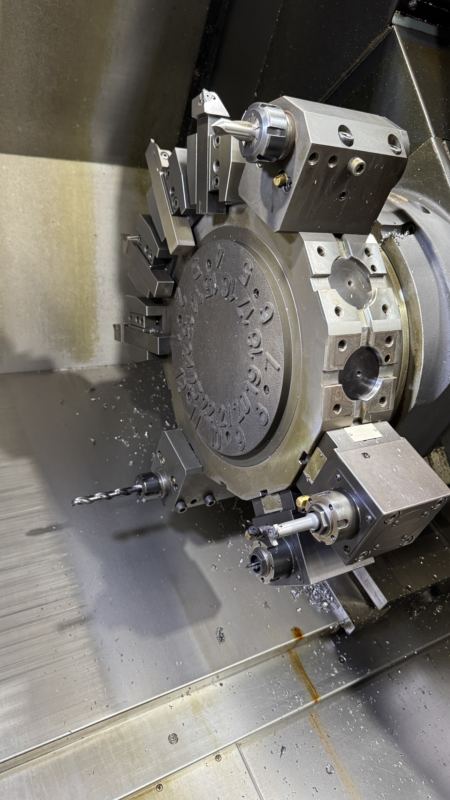

Turret
Number of tool stations: 12 (optional 24)
OD tool size:
Boring bar diameter:
Indexing time (1st swivel):
Rotary tool spindle speed:
Carriage (Axes)
X-axis travel: 260 mm (57 + 203 mm)
Z-axis travel: 590 / 830 mm
Y-axis travel: ±51 mm (total 102 mm)
Feedrates
Rapid traverse X-axis: 30 m/min
Rapid traverse Z-axis: 30 m/min
Rapid traverse Y-axis: 10 m/min

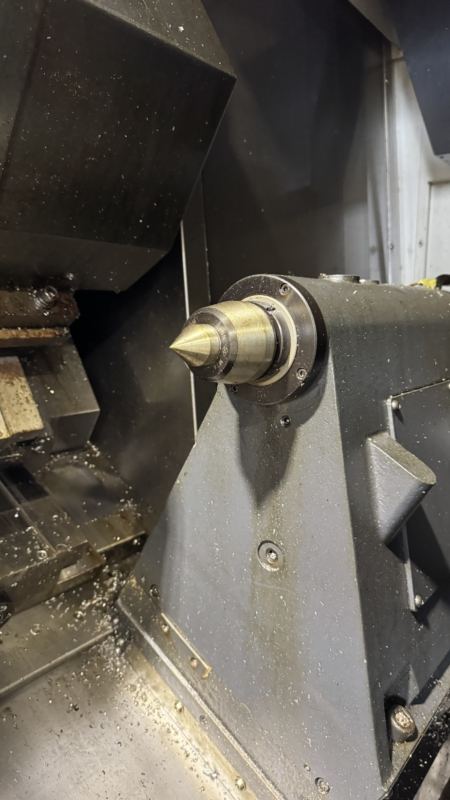

Tailstock
Quill diameter: 80 mm
Quill taper (live): MT#4
Quill travel: 80 mm
Motors
Main spindle motor: 18.5 / 15 kW
Sub spindle motor: –
Rotary tool spindle motor: 5.5 kW
Feed motors (X, Z, Y, B-axis): 3.0 / 3.0 / 3.0 kW
Coolant pump motor: 0.4 kW
Machine Dimensions
Machine height: 2163 mm
Machine length: 3415 / 3530 mm
Machine width: 1863 mm
Machine weight: 5450 / 5950 kg

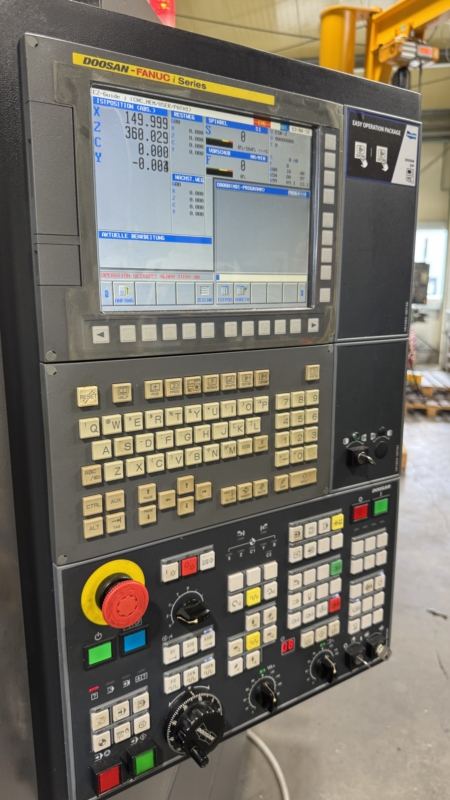

CNC Control System
FANUC 0iD / 31iA
