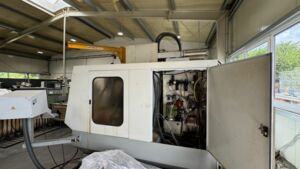

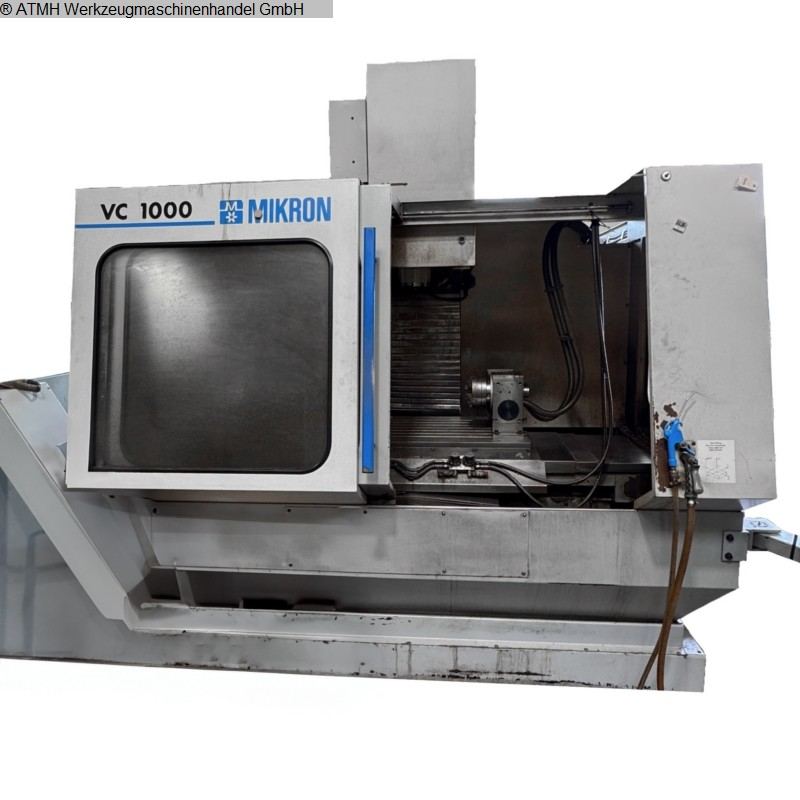

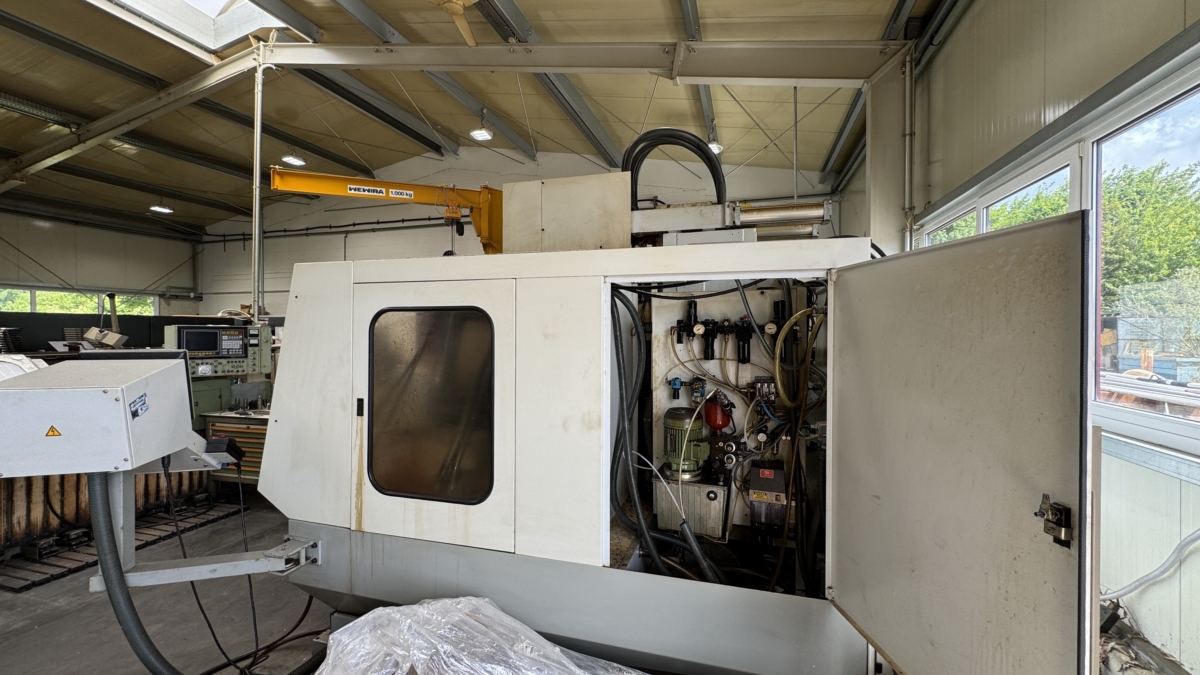

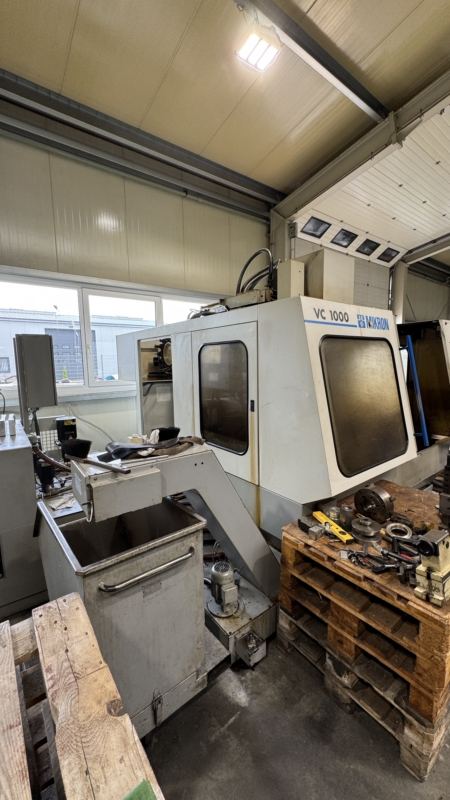

MIKRON VC 750/1000 – CNC Vertical Machining Center
Travels:
X-axis: approx. 750 / 1000 mm
Y-axis: approx. 600 mm
Z-axis: approx. 600 mm

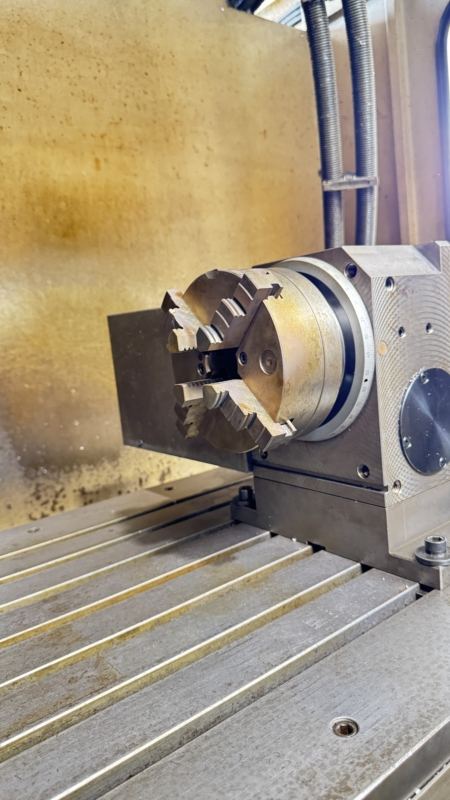

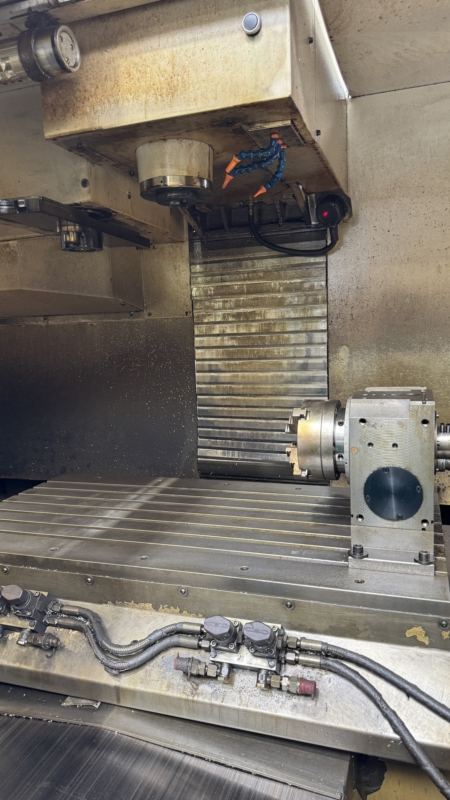

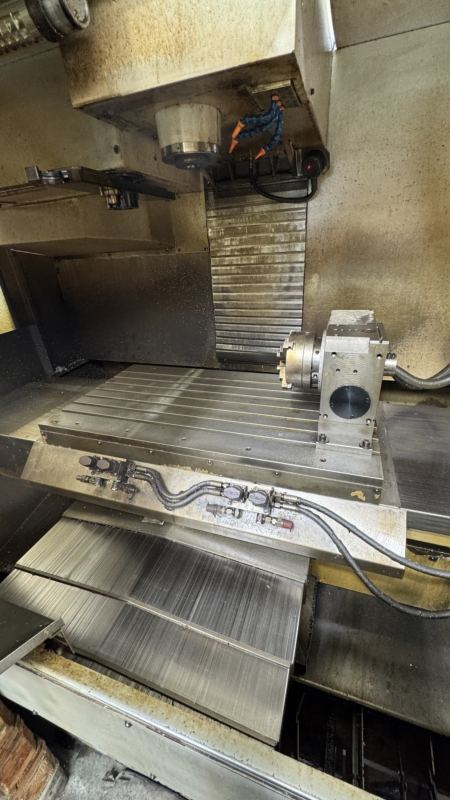

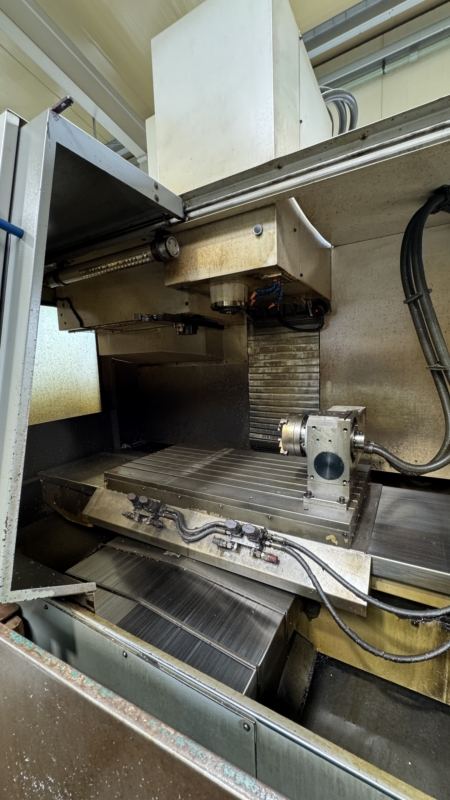

Table:
Table size: approx. 1080 x 580 mm
Number of T-slots: 7
T-slot spacing: 90 mm
T-slot width: 14 mm
Max. table load: approx. 1000 kg
Spindle:
Spindle speed: 50 – 5000 rpm
Spindle taper: ISO 40
Spindle power: approx. 11 kW

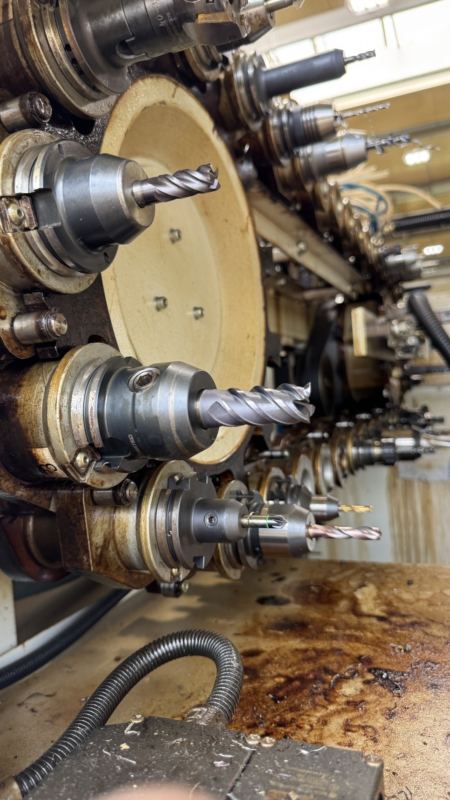

Tool Changer:
Number of tool stations: 30 – 36
Tool interface: ISO 40
Feedrates and Rapid Traverse:
Rapid traverse X/Y/Z: approx. 15 m/min

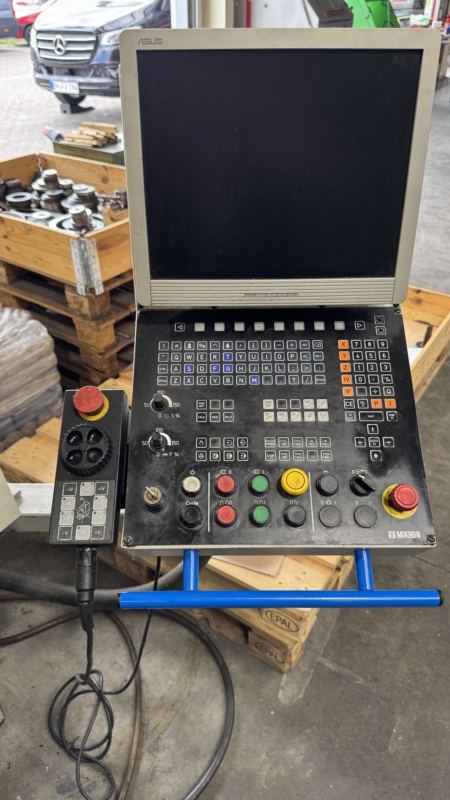

Control System:
Heidenhain TNC 426
Machine Dimensions and Weight:
Dimensions (L x W x H): approx. 2500 x 3300 x 2500 mm
Machine weight: approx. 6500 kg
