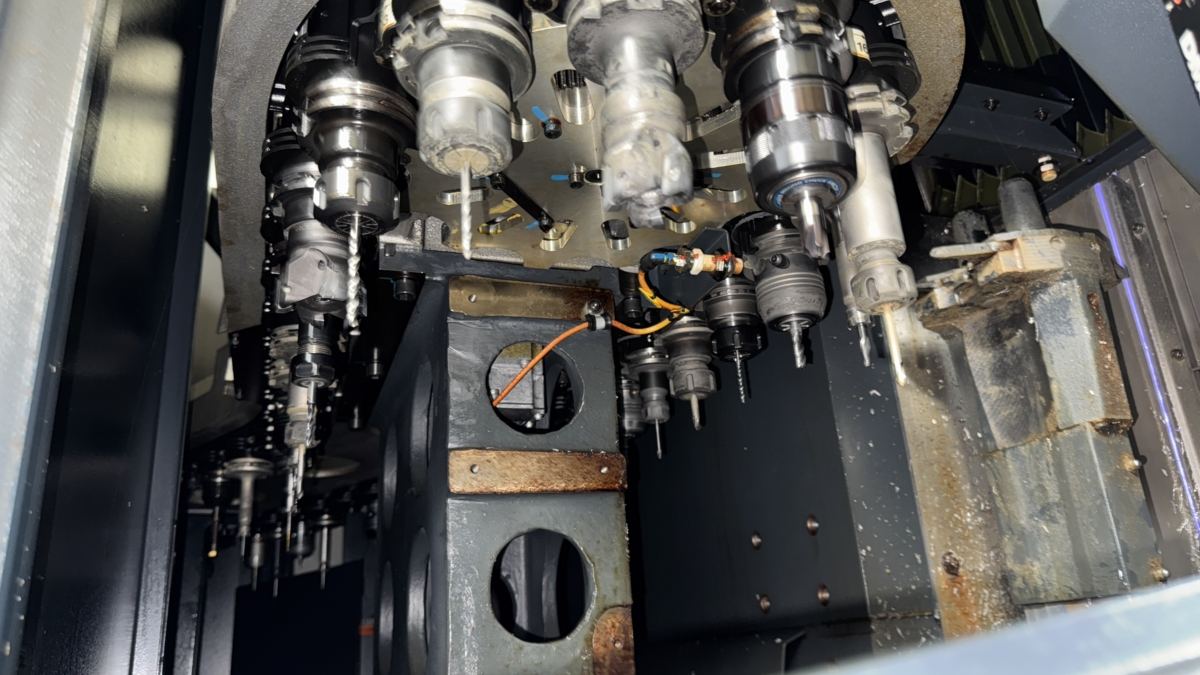

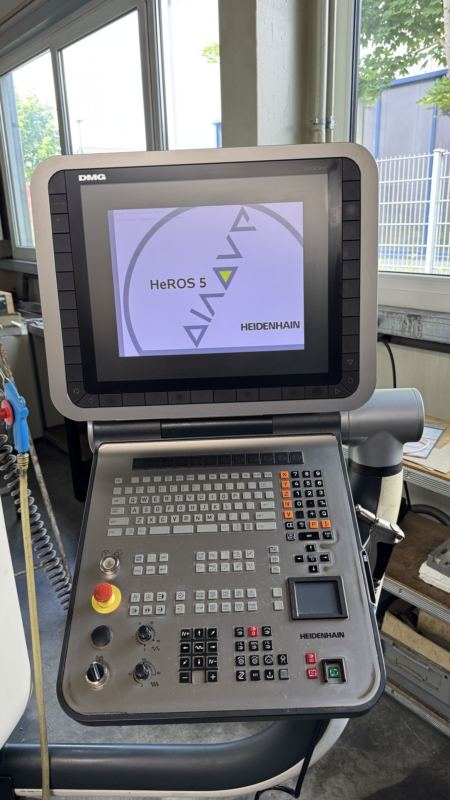

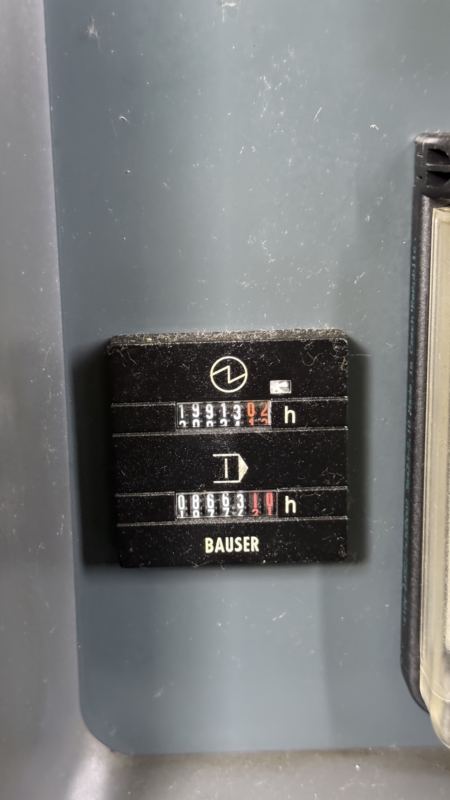

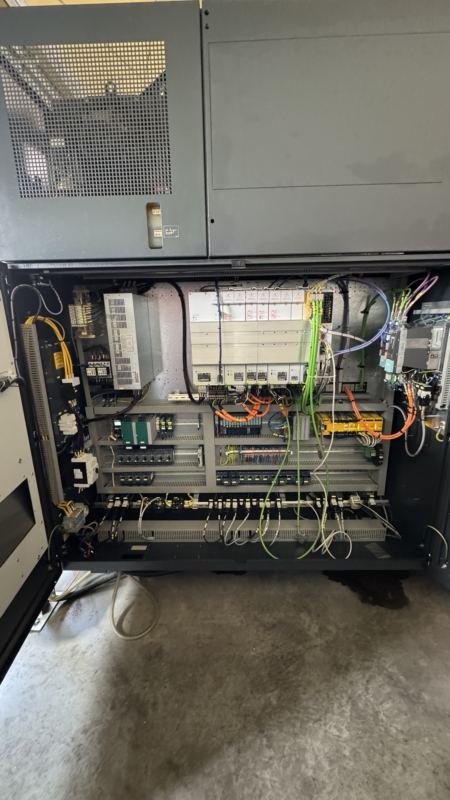

DECKEL MAHO DMU 40 eVo Milling Machine
TRAVEL PATHS

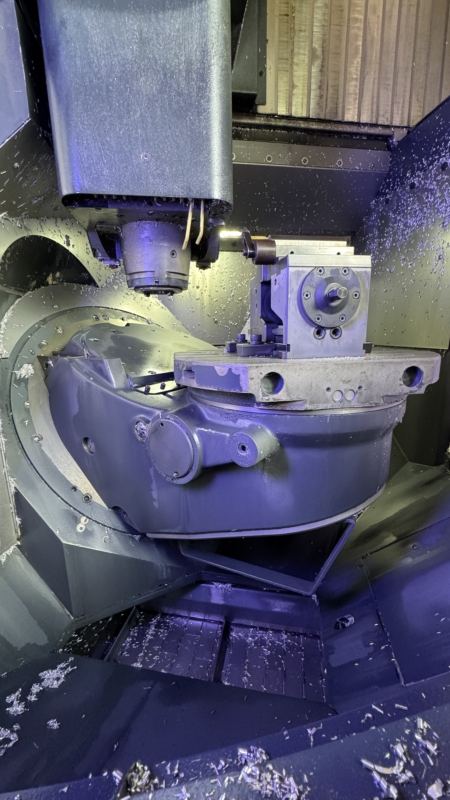

Swivel-Rotary Table
X-axis: 400+50 mm
Y-axis: 400 mm
Z-axis: 375 mm
B-axis min./max.: -5/+110
C-axis: n x 360
MEASURING SYSTEM
X-, Y-, Z-axis: 0.01 µm
B-, C-axis: 0.02
DIMENSIONS
Length without control unit: 2867 mm
Length with control unit: 4008 mm
Width without control unit: 2540 mm
Width with control unit: 3982 mm
Width with control unit, chip conveyor, and belt filter unit: 5922 mm
Height: 2477 mm
Installation footprint: 5945 x 7122 mm
Chip conveyor: 2820 x 885 x 1540 mm
Chip conveyor weight: 235 kg
SWIVEL-ROTARY TABLE
Clamping surface rotary axis: 480 x 400 mm
T-slot spacing / size: 63 / 14H7 mm
Number of T-slots / size: 5 pcs. / 14H7 mm
Centering bore: 30H6 mm
Nominal torque (rotary axis): 9.2 Nm
Max. table rotation speed (rotary axis): 60 rpm
Rotation range: 360°
B-AXIS
Nominal torque: 14.2 Nm
Swivel speed: 60 rpm
Swivel range: -5/+110
Input and display resolution: 0.001
Max. load (centered on table): 250 kg
