GERD WOLFF - Aufspannwinkel 1x 0,7x 2 Meter
GERD WOLFF - Aufspannwinkel 1x 0,7x 2 Meter

GERD WOLFF Aufspannwinkel 1x 0,7x 2 Meter

bolster plate

Order-No.T537
MakeGERD WOLFF
Built in2023
ConditionNew
LocationEnnepetal - Hall 1
Delivery Termsimmediately
QuotationFree on truck from location
Priceupon request
plate width
1000 mm
plate depth
700 mm
plate height
2000 mm
weight of the machine ca.
1800 kg
required space
1000 x 700 x 2000 mm

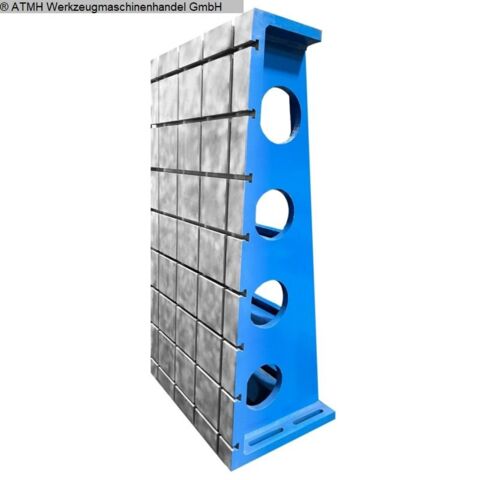

The GERD WOLFF clamping bracket, with overall dimensions of 1000 x 700 x 2000
millimetres, is equipped with a T-slot plate.
If you have not found the size you require, you can also send us an e-mail with
the completed PDF form. We can use this to produce a customised panel for you.

T-slots - width: 22 and 38 millimetres
Panel thickness: 50 millimetres
Number of grooves: 8
Surface finished according to DIN 876/III
Weight: 1800 kg
Material: EN-GJL-250
The cast iron grade EN-GJL-250, characterised by lamellar graphite, is
characterised by high thermal conductivity, excellent damping properties and
good dimensional stability. This material also combines good machinability with
high compressive strength and vibration-damping properties. EN-GJL-250 is
particularly suitable for mechanically stressed machine components, as it is
also easy to machine and has an outstanding surface finish.

Clamping cube - T-slot plates - Plate field
