GERD WOLFF HPK-80

Profile-Bending Machine

Order-No.T1107
MakeGERD WOLFF
Built in2023
ConditionNew
LocationEnnepetal - Hall 1
Delivery Termsimmediately
QuotationFree on truck from location
Priceupon request
total power requirement
4/380 kW
weight of the machine ca.
1700 kg
required space
1450x1000x1400 mm

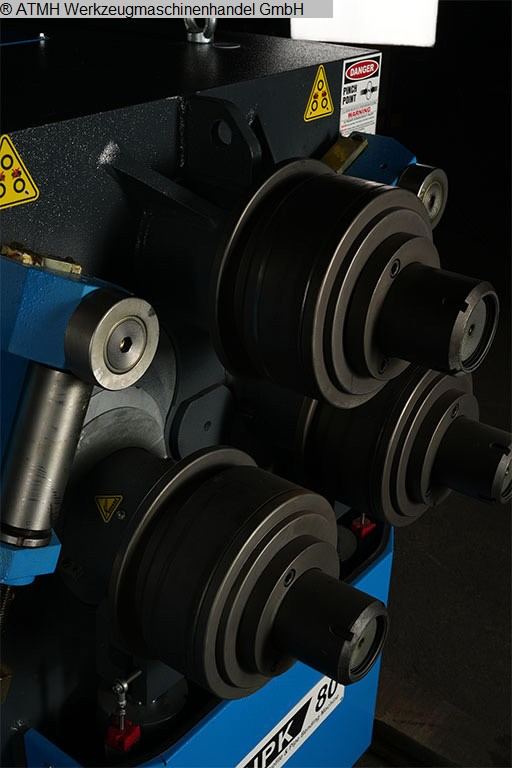

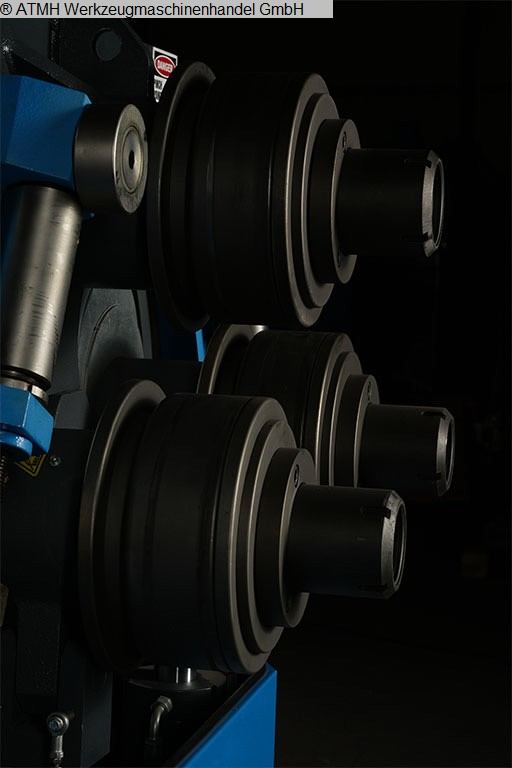

The Gerd Wolff HPK-65 is a hydraulic profile and tube bending machine with 3
rollers. The machine is ideal for bending profiles, tubes and similar material.
The HPK-65 is manufactured for our sales brand "GERD WOLLF Maschinenfabrik",
manufactured by a renowned manufacturer from Turkey.

Standard accessories
- Welded frame in steel construction
- 3 rollers are driven
- Hardened and ground shafts made of high-strength special steel
- Horizontal and vertical working position
- Hardened standard rollers
- Mobile control panel
- 3 axes mechanical side angle guide rollers
- Brake motor for precision bending
- Digital reading (2 pcs.)

Optional accessories
- NC control
- Hydraulic side guide rollers (2 axes)
- Pipe, tube and profile bending rolls
