GERD WOLFF - HP 60 - Horizontal
GERD WOLFF - HP 60 - Horizontal

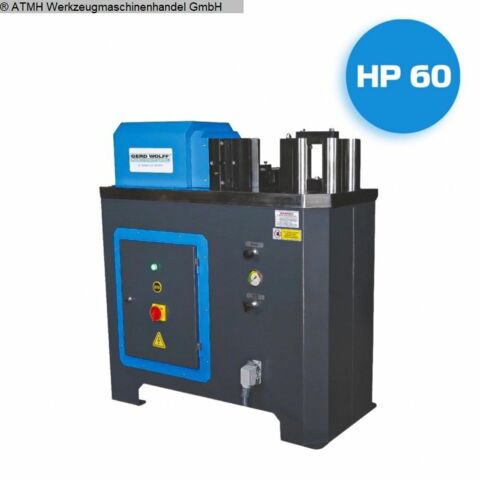

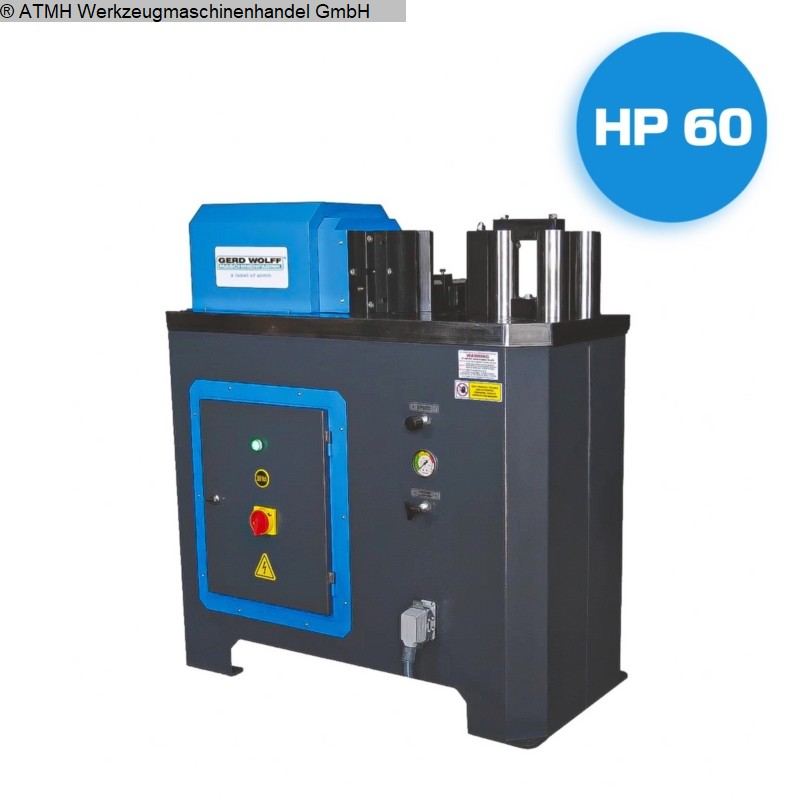

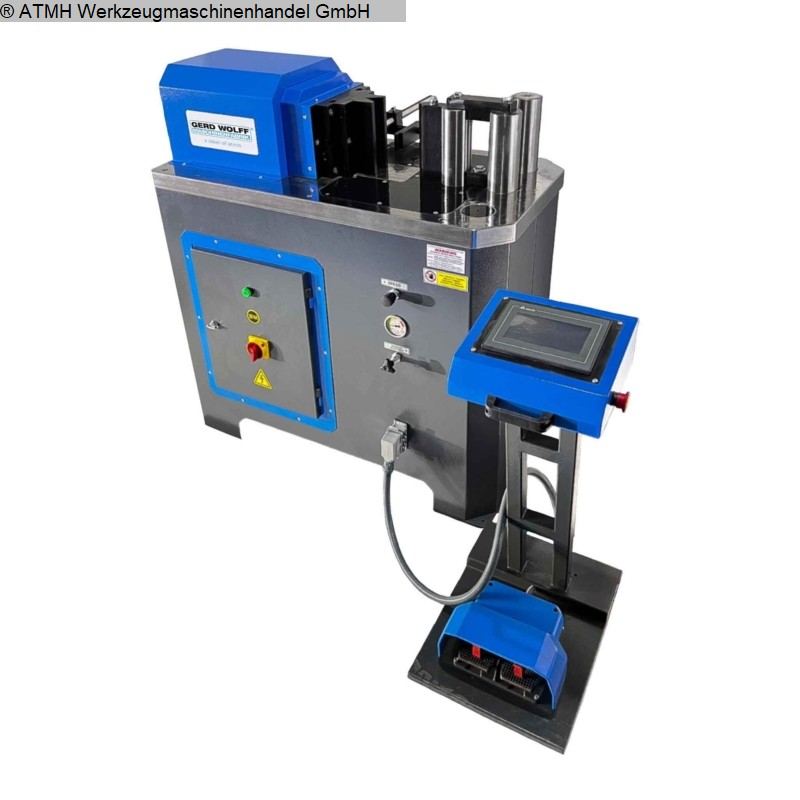

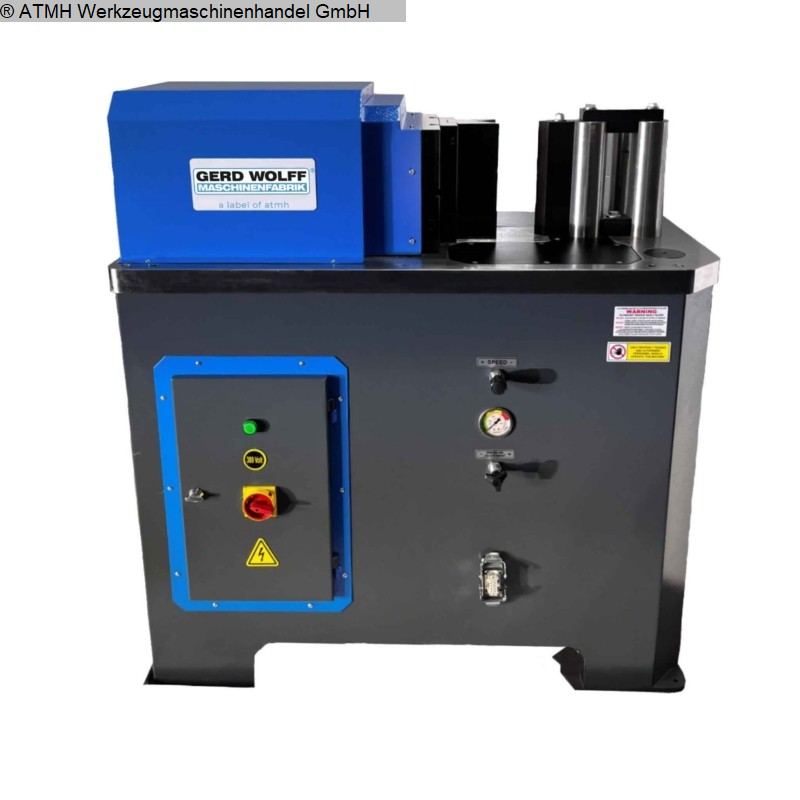

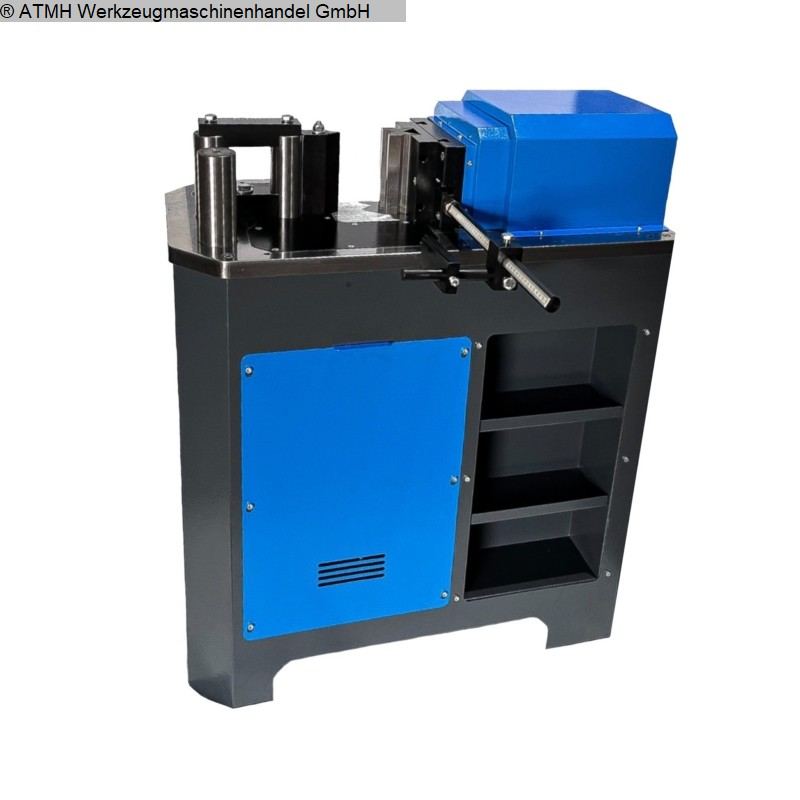

GERD WOLFF HP 60 - Horizontal

Straightening- and Bending Machine
- BRAND NEW -

Order-No.T1103
MakeGERD WOLFF
Built in2023
Control NameNC
OriginTürkiye
ConditionNEW
LocationEnnepetal - Hall 1
Delivery Termsimmediately
QuotationFree on truck from location
Priceupon request
pressure
60 t
stroke max.
300 mm
bending capacity max. - flat
300 x 16 mm
working feed
10 mm/sec
Control
NC
Height of Toolings
300 mm
total power requirement
5,5 kW
weight of the machine ca.
1530 kg
required space
750 x 1450 x 1360 mm

The Gerd Wolff HP 60 is a hydraulic horizontal press machine with many
many possible combinations.
Whether it is the bending of tubes, the punching of profiles or the cutting of
sheet metal - with the right accessories, the HP 60 is a multifunctional
machine among all presses.

Standard accessories

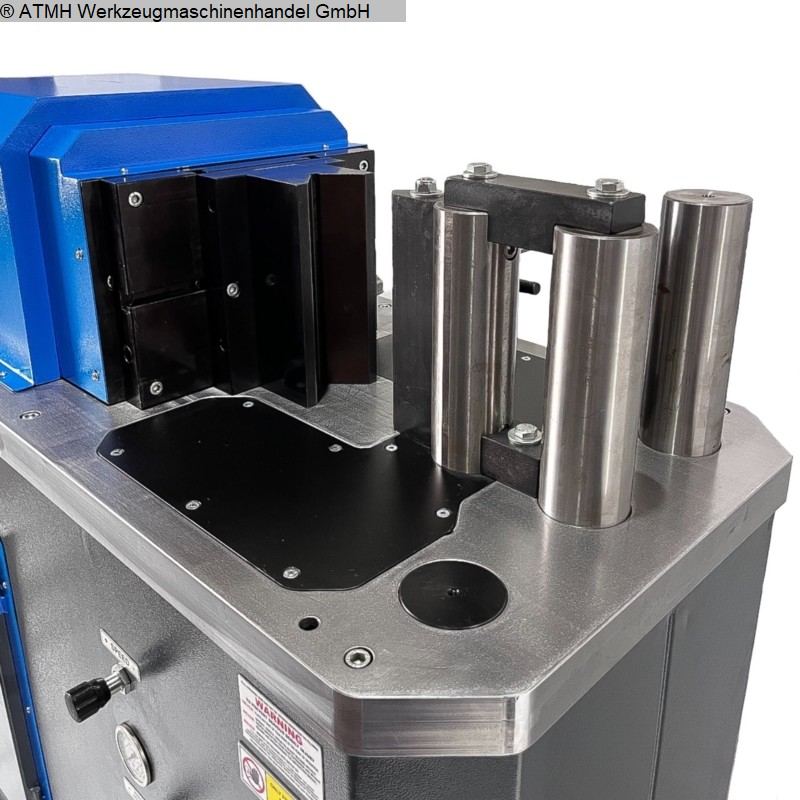

- ergonomic tool clamping table
- easy tool change
- hydraulic speed and pressure adjustment
- easily adjustable back gauge
- induction hardened support pins
- NC control

Highlights

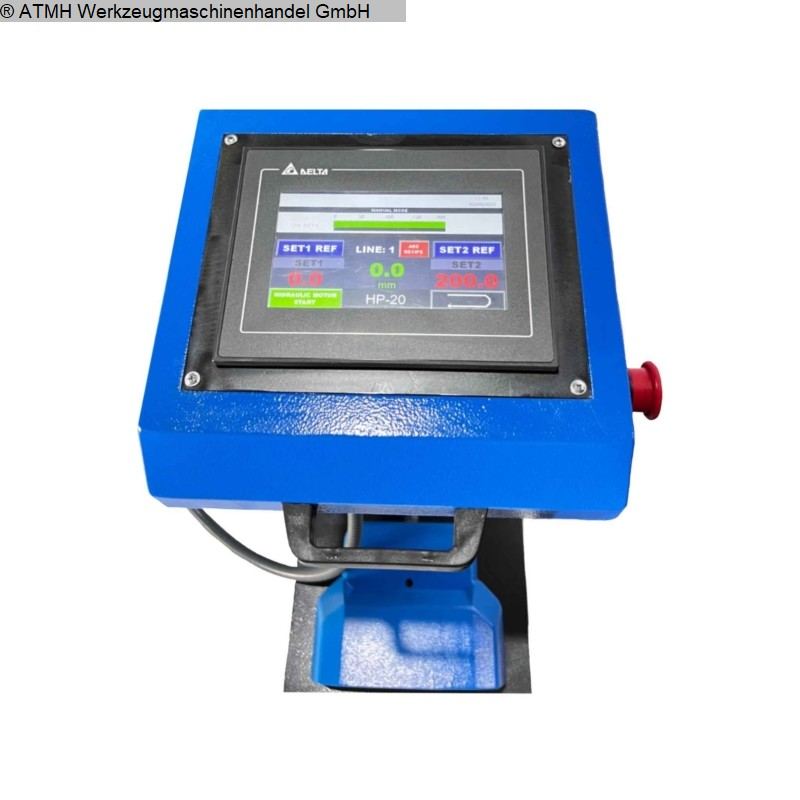

- control panel with digital display
- Easy tool change
- hardened support pins
- hydraulic speed regulation
The HP 60 is manufactured for our sales brand "GERD WOLLF Maschinenfabrik",
by a renowned manufacturer from Türkiye.
The pictures are for orientation only and are not true-to-scale representations
of the machine.
