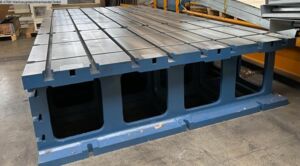

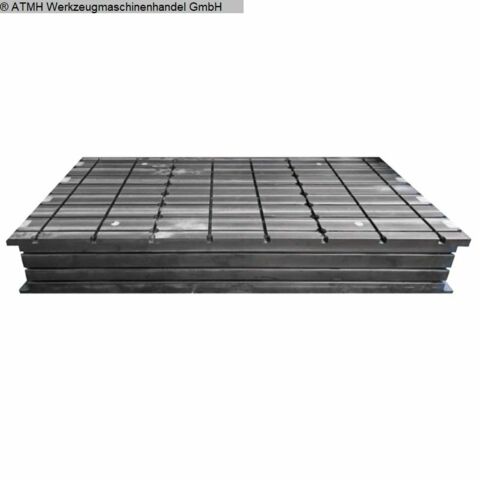

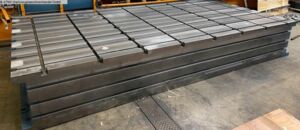

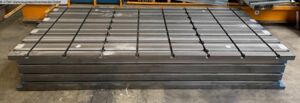

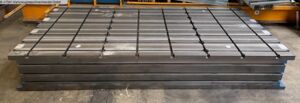

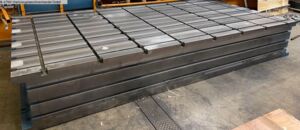

GERD WOLFF 4000 x 2000 x 600mm
bolster plate
- BRAND NEW -
| Order-No. | SL1010 |
| Make | GERD WOLFF |
| Condition | NEW |
| Location | Ennepetal - Hall 3 |
| Delivery Terms | immediately |
| Quotation | From stock - free on truck |
| Price | upon request |
| plate width |
|---|
| 2000 mm |
| plate depth |
|---|
| 4000 mm |
| plate height |
|---|
| 600 mm |
| weight |
|---|
| 6700 kg |
Assembly field - test field - assembly platform - clamping plate
Product parameters: freely combinable.
Clamping plate : 4000 x 2000 x 600 mm
T-slots - width: 28mm
T-slot spacing: 225mm
Edge distance: 112mm
Number of grooves: 8x8+3
Material: cast iron HT250.
Surface roughness: ra3.2-ra6.3.
Flatness less than 0.12mm.
Surface processed according to DIN 876/III
