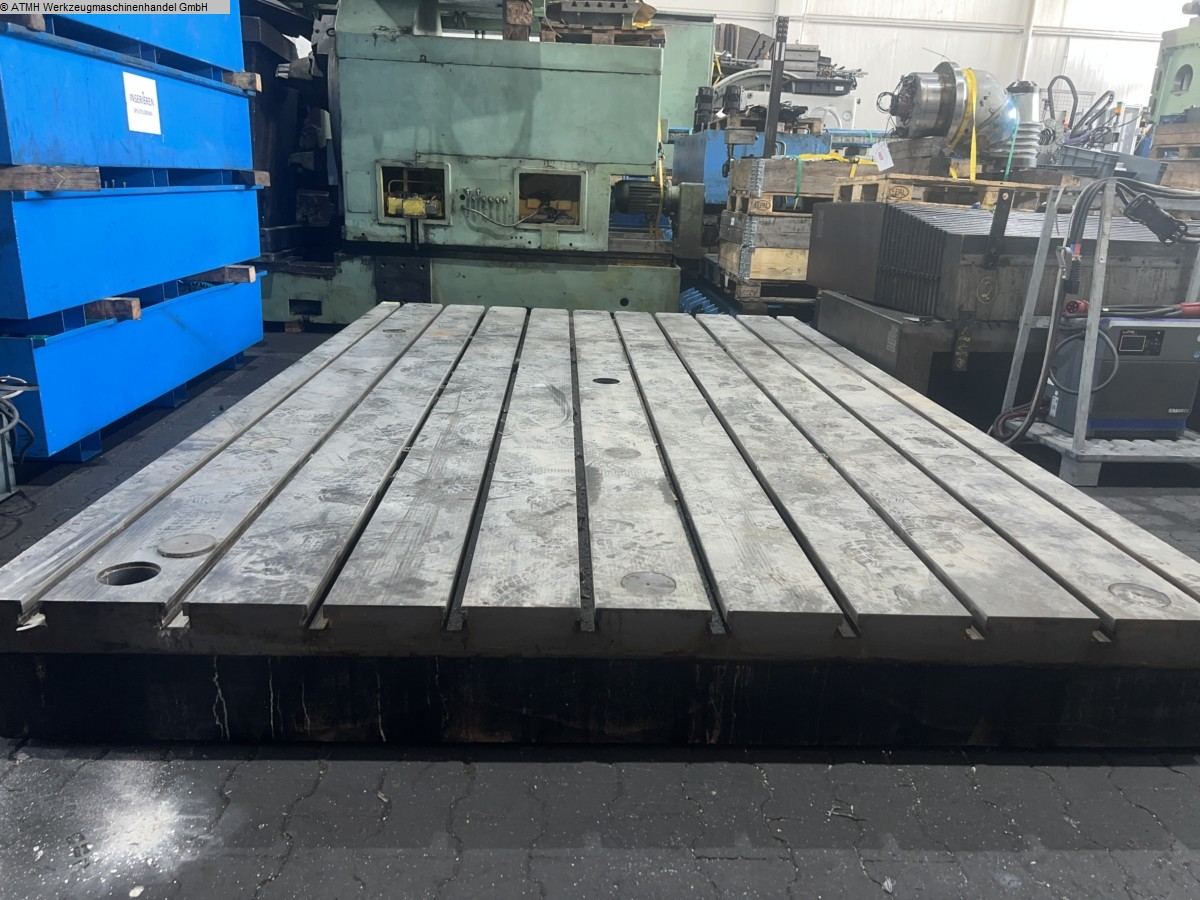

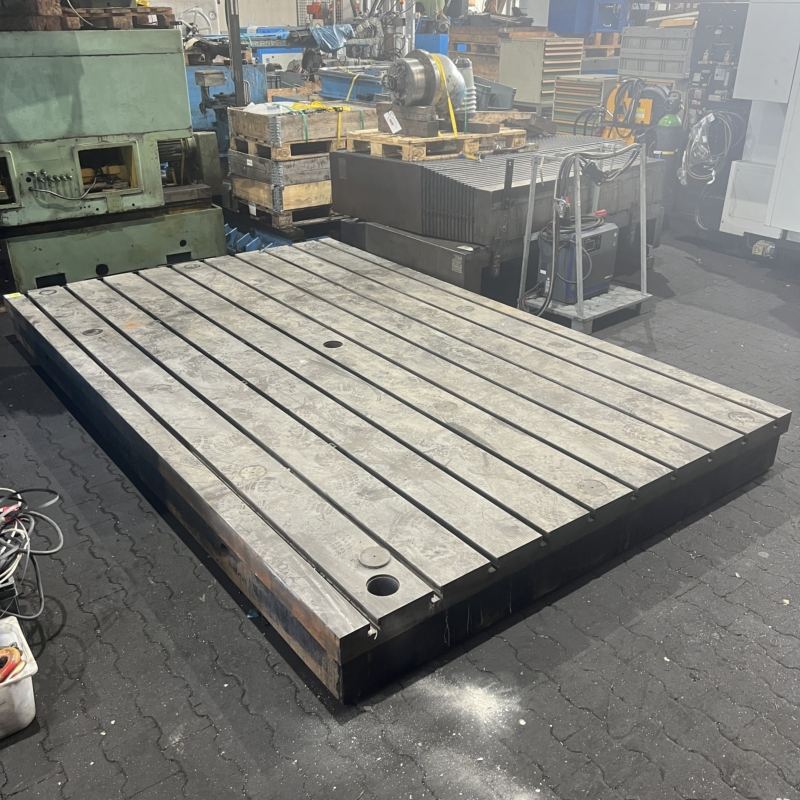

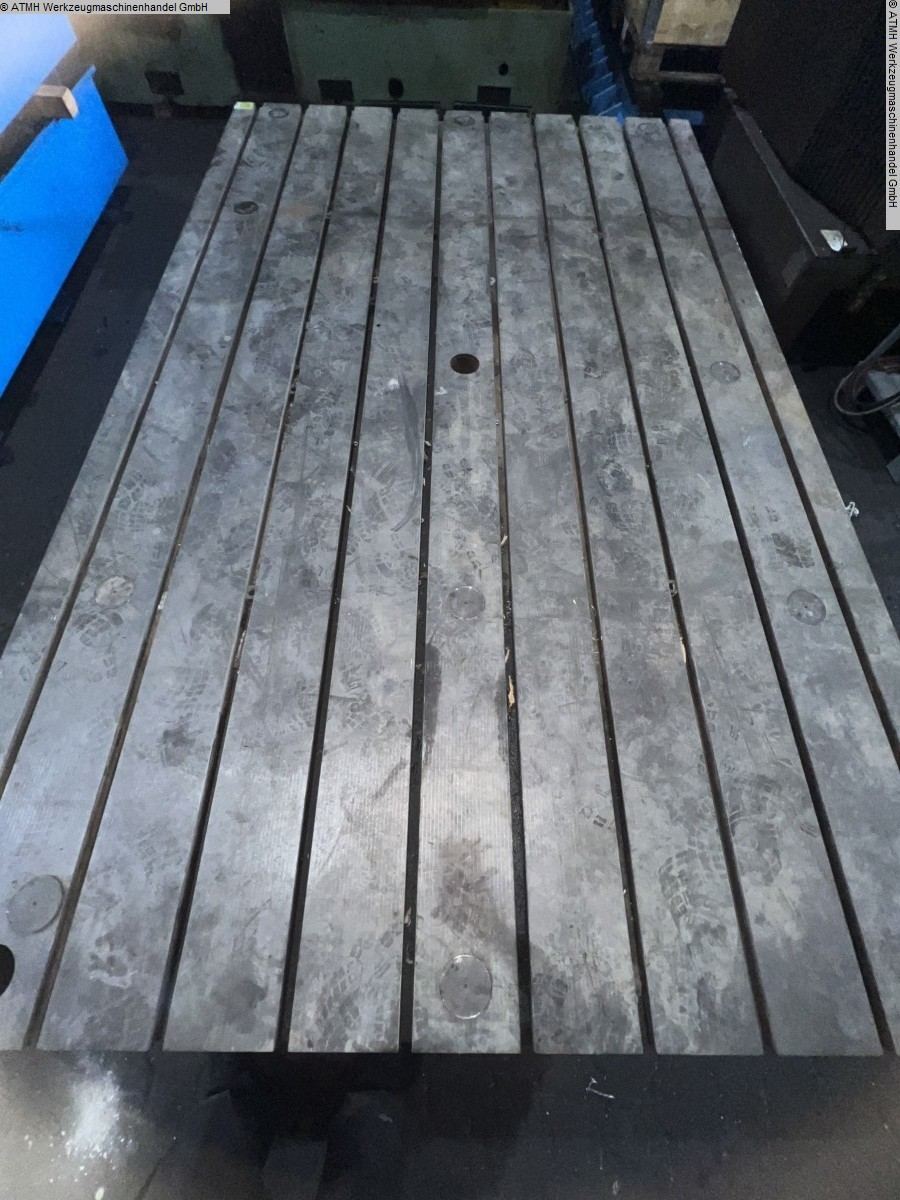

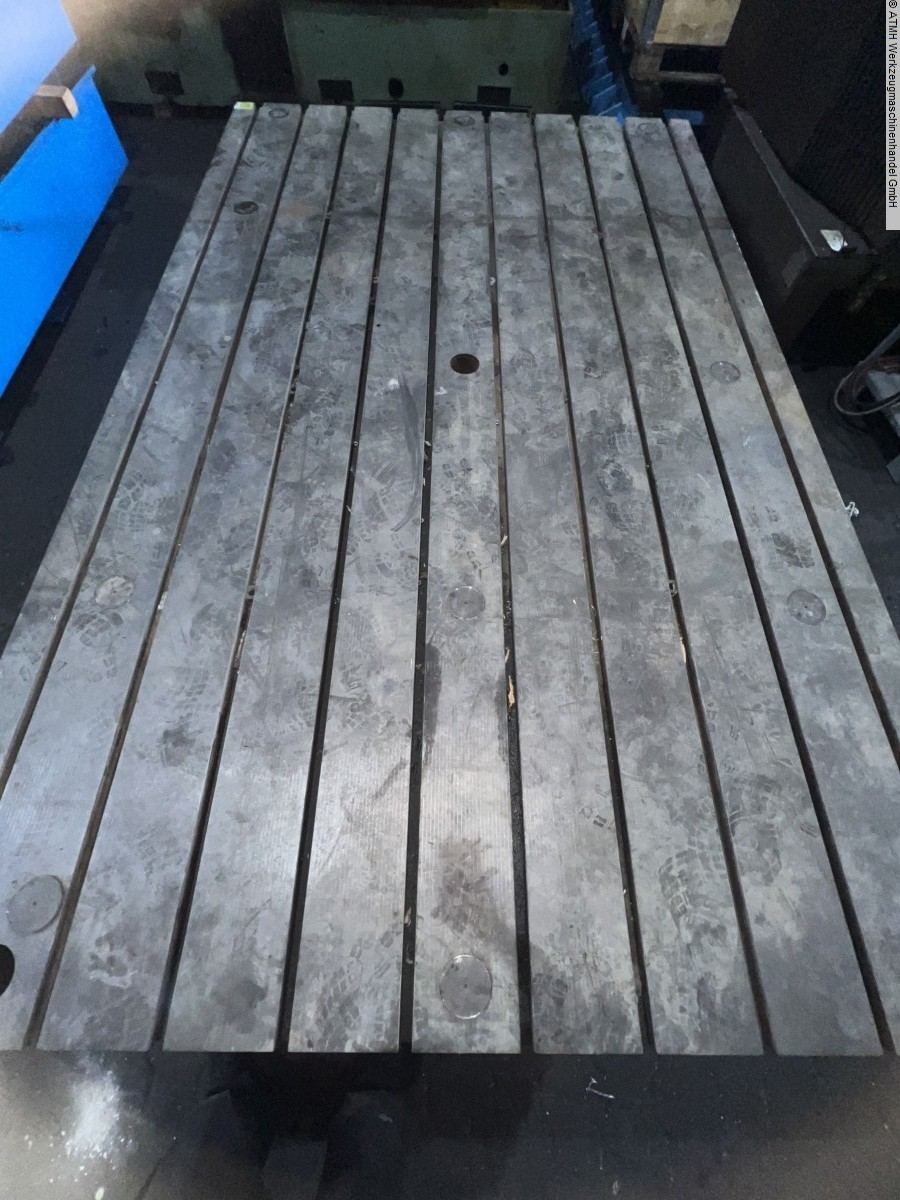

STOLLE Clamping Plate / Clamping Bed 4000x2500x300 mm
L x W x H: 4000 x 2500 x 300 mm
Total area (for 2 plate sections): 20 m²
T-slot dimensions: 28 x 48 mm (slot width x depth)
Plate thickness: 110 mm
Number of slots: 10
Edge distance: 124 mm
T-slot spacing: 250 mm
Note: I am offering one clamping plate for sale.
A second, identical clamping plate with the same dimensions is also available. Both plates are exact matches and can be joined together if required to create a larger clamping surface.
The second clamping plate is also available upon request.
Please feel free to contact me if you are interested in both plates or have questions regarding their combined installation.
