MAE HY-S 100 RH
Straightening Press - Single Column
| Order-No. | SB400 |
| Make | MAE |
| Built in | 1980 |
| Origin | Germany |
| Condition | used |
| Location | Ennepetal - Hall 1 |
| Delivery Terms | available immediately |
| Quotation | From stock - free on truck |
| Price | upon request |
| pressure |
|---|
| 100 t |
| stroke |
|---|
| 500 mm |
| table surface area |
|---|
| 4000x500 mm |
| weight of the machine ca. |
|---|
| 5,7 t |

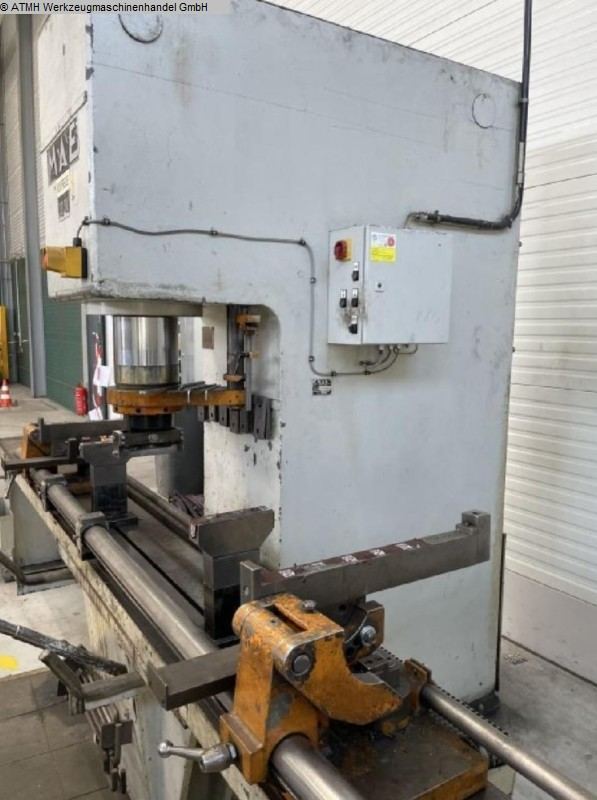

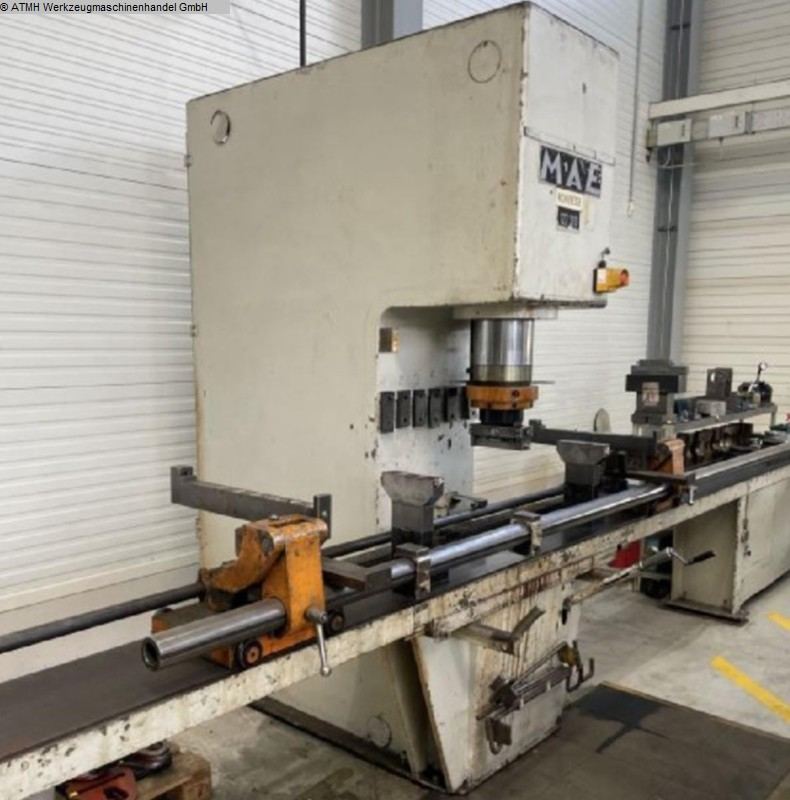

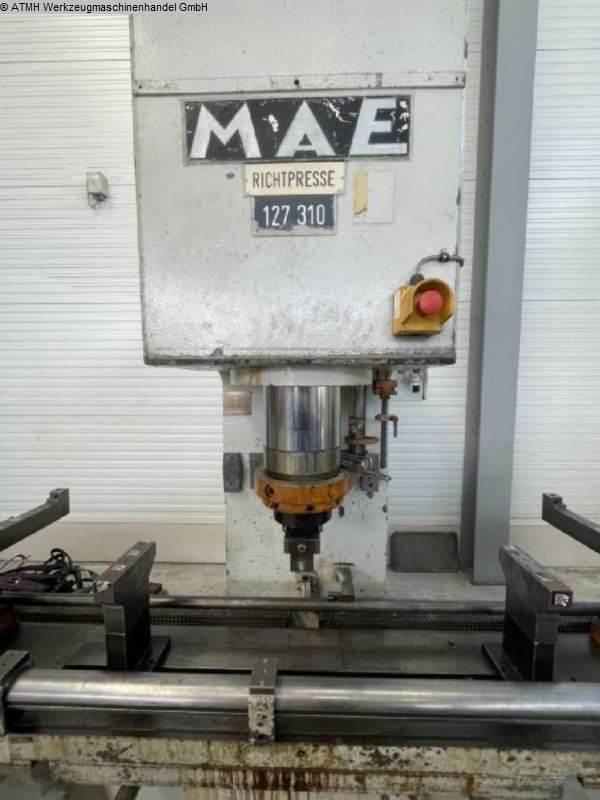

HY – S 100 RH MAE hydraulic straightening press, complete with straightening unit
Year of manufacture: 1980
Approved in accordance with UVV
Stroke: 500 mm
Pressure capacity: 100 tonnes
Table: 4000 x 500 mm
Weight: 5700 kg
