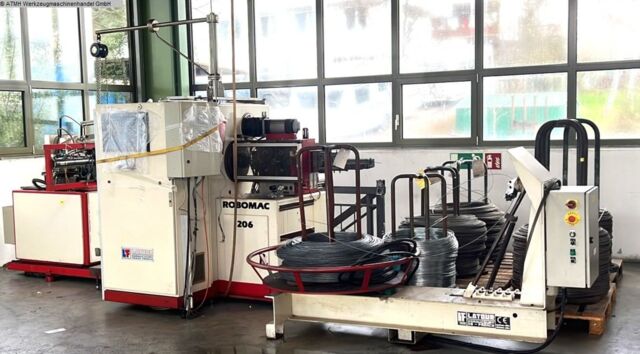

ROBOMAC 206 CNC wire bending machine
General information
Machine model: ROBOMAC 206
Manufacturer: LATOUR / NUMALLIANCE (France)
Machine type: CNC wire bending machine / wire forming machine
Year of manufacture: 22 December 1997 Serial number / Registration: 9711026
CE marking: present
Technical data
Working range
Wire diameter: approx. 2 – 6 mm Material feed
Wire feed length: unlimited
Feed accuracy: ± 0.05 mm
Revolving arm
Positioning accuracy: ± 0.02°
Rotation range left–right: infinite
Arm length: 600 mm
Bending heads
Number: 2
Bending radii over mandrel: 1 to 15 mm
Bending radii over roller with wire feed: 15 mm to infinite
Positioning accuracy: ±0.02°
Rotation range left–right: ±360°
Programming time: 5 to 15 min.
Time required for production changeover
Without wire: 0 min
With wire: approx. 30 min
Power requirement: 6.3 kVA
Dimensions
Without safety barrier: 2.60 x 2.00 x 1.72 m
With safety barrier: 4.50 x 2.00 x 1.72 m
Net weight: approx. 2250 kg
Typical applications
- Wire-formed parts
- Wire brackets
- Metal hooks
- Springs
- Technical wire-formed parts for industrial applications
Disclaimer
All information is provided without guarantee. No liability is accepted for the accuracy, completeness and
up-to-date nature of the technical data.
