Technical Specifications
Working Area
Max. swing diameter: 540 mm
Max. turning diameter: 540 mm
Max. turning diameter over ways: 520 mm
Max. turning length: 1029 mm
Main Spindle
Speed range: 35–5,000 rpm
Main drive power: 22 kW
Max. torque: 349 Nm
Spindle nose: A2 – 6 inches
Spindle bore: 61 mm
Spindle positioning C-axis: 0°–360°/0.001°
Tool turret
Tool turret type: Single-spindle turret
Driven tools
Speed range: 15–6,000 rpm
Drive power: 7.5 Kw
Max. torque: 103 Nm
Tool magazine
Number of tool positions: 40
Max. tool weight: 7 kg
Machine weight: approx. 5700 kg

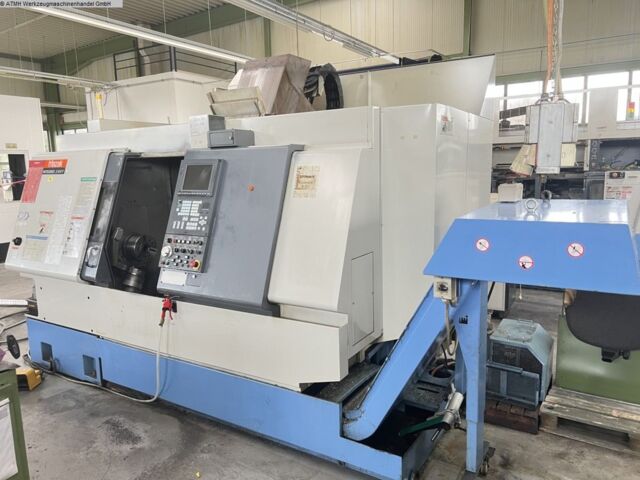

A wide range of accessories included – see photos
A backup from 3 September 2012 is available
