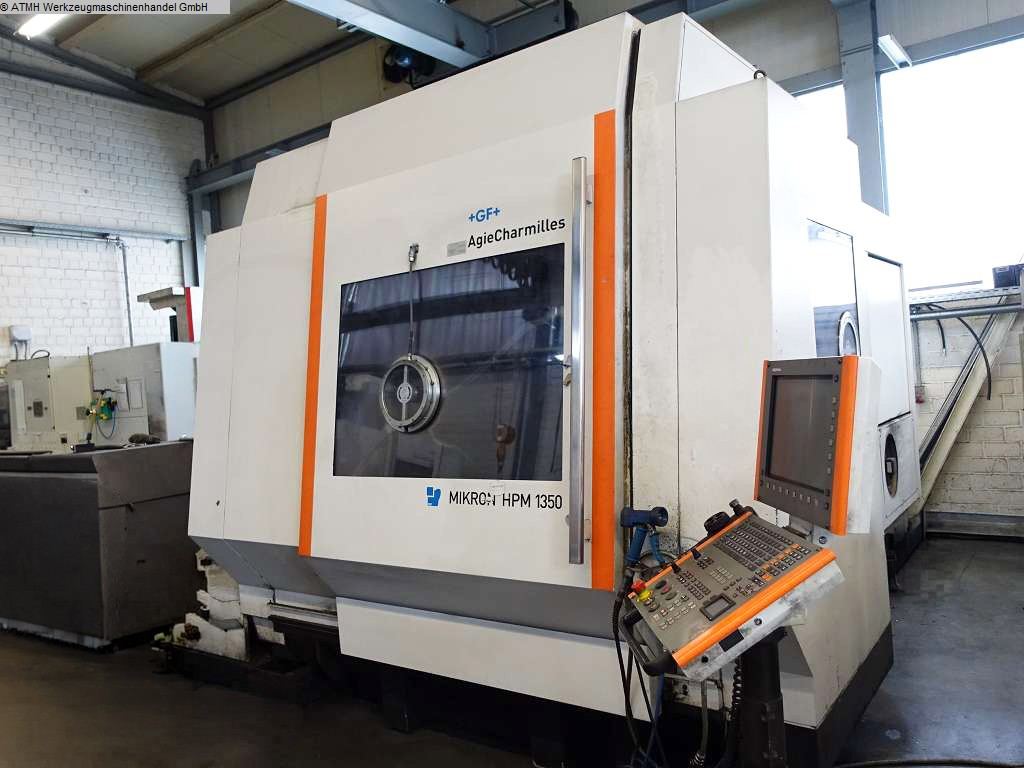

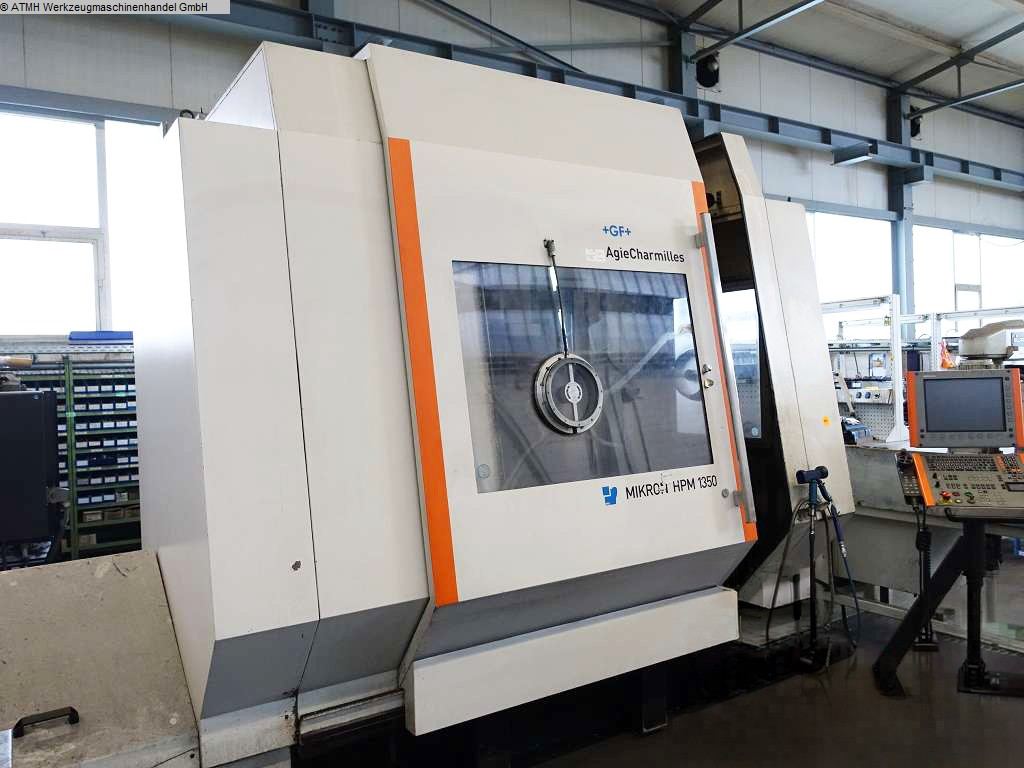

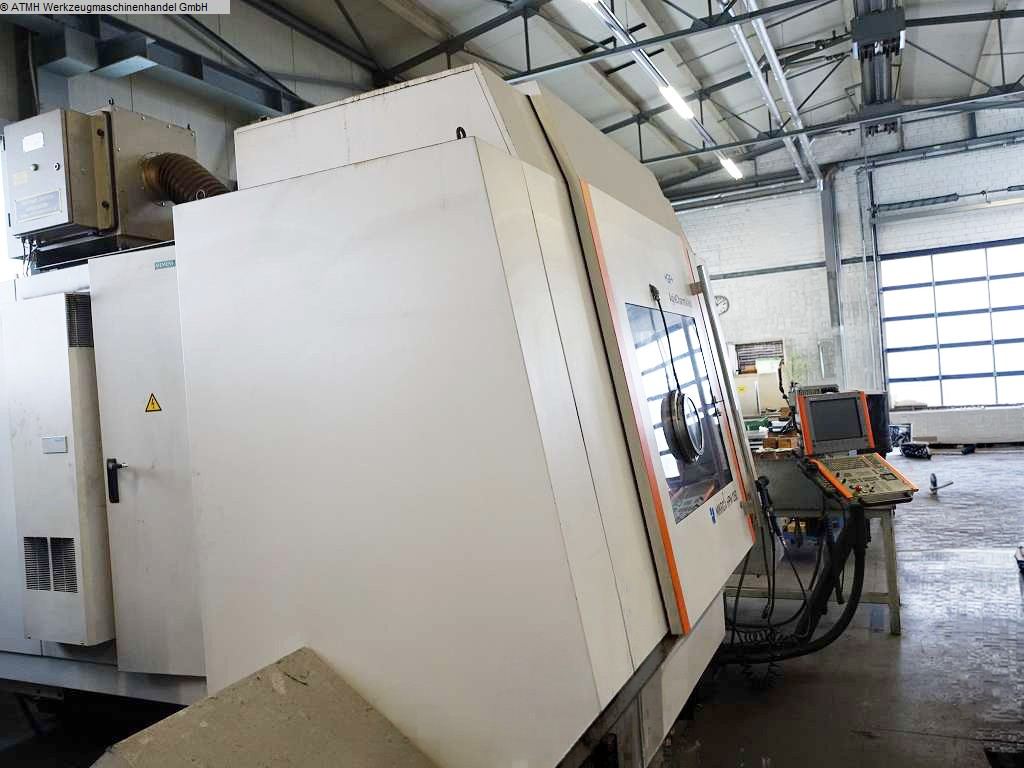

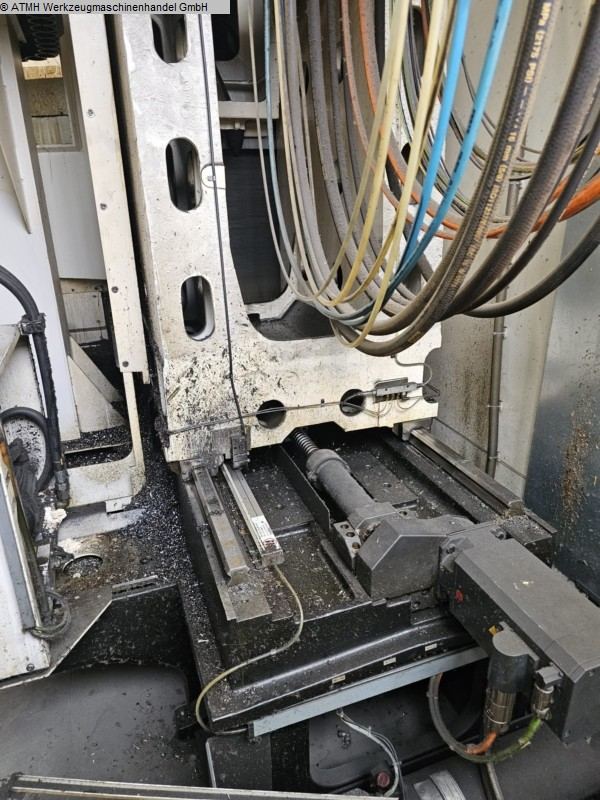

3-axis vertical machining centre
with BÜRENER KFE 63/40-900 Z60 chip conveyor
Condition: Well suited for roughing operations
Working ranges
X-axis travel: 1350 mm
Y-axis travel: 900 mm
Z-travel: 750 mm
Spindle nose to table surface: 135–885 mm

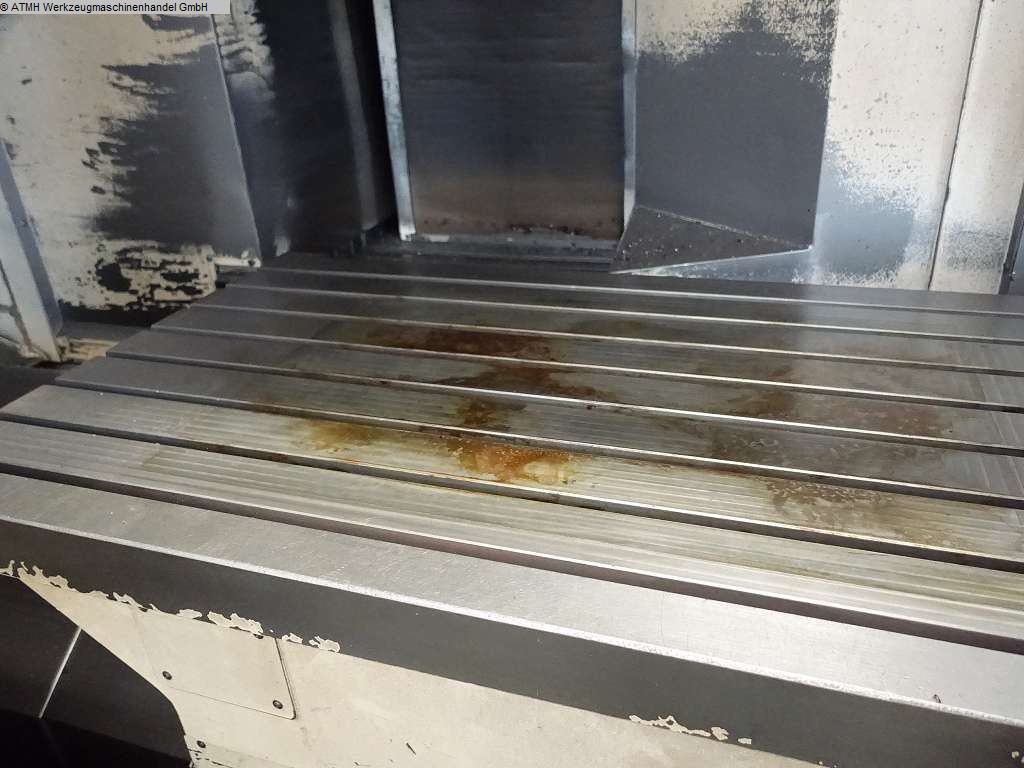

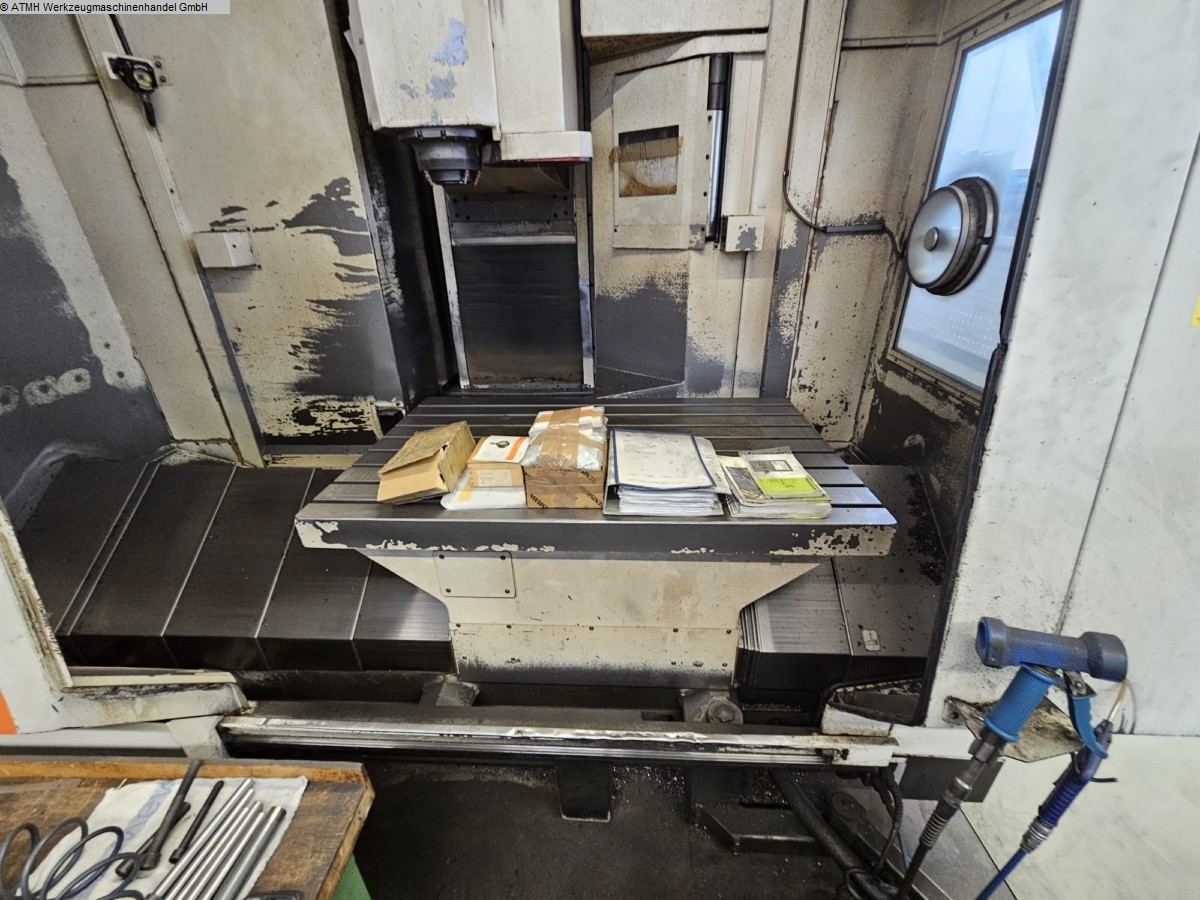

Work table
Clamping surface: 1425 x 860 mm
Max. workpiece weight: 1800 kg
Number of T-slots: 10
T-slot width: 1x18H7.9x18H12

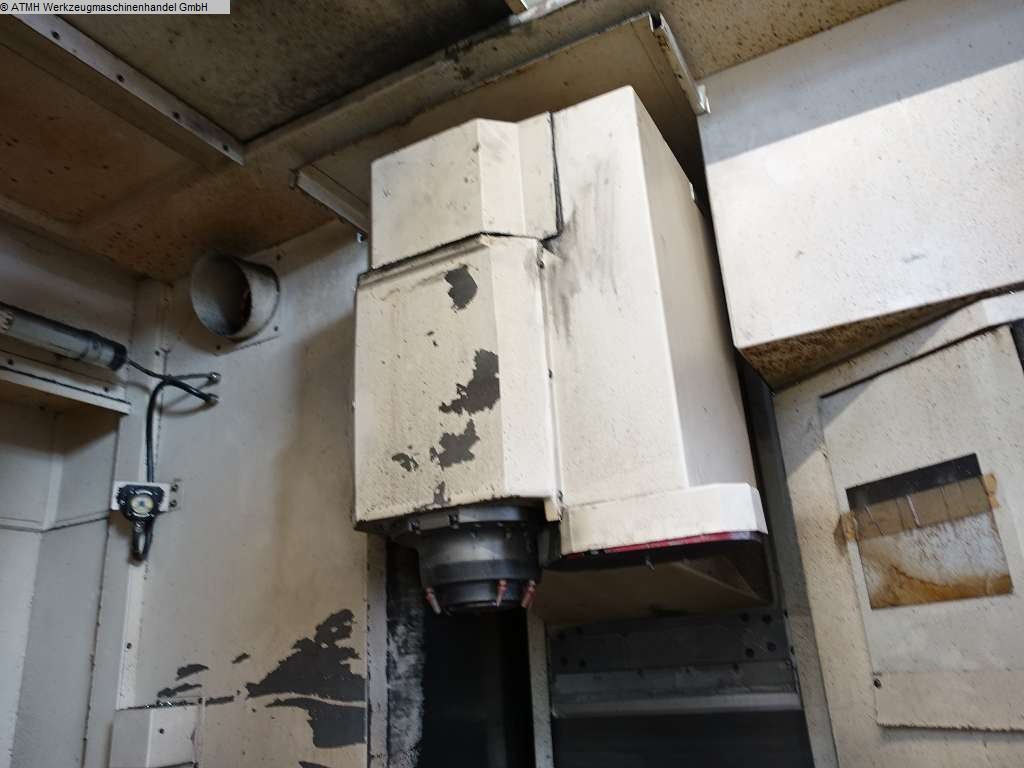

Work spindle
Speed range: 0 - 15,000 rpm
Power: 38 kW
Tool magazine: 46 pcs.
Tool holder: HSK-A63
Cooling: Water with corrosion protection
Footprint L x W x H: 4130 x 3680 x 3150 mm
