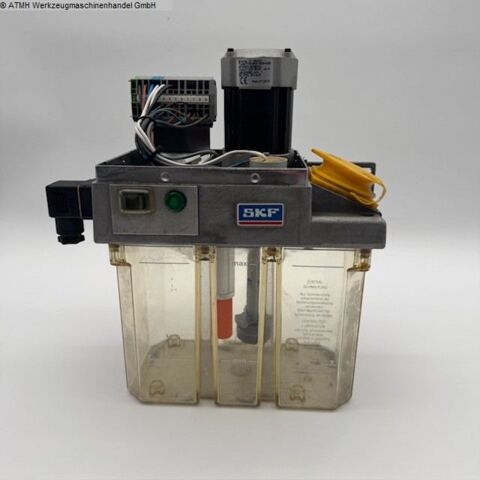

Electric Single-Line Pump MKF2-KW3-20003+428 – 230 V
The MKF2-KW3-20003+428 is an electric single-line lubrication pump for fluid grease, designed for operation with 230 V at 50/60 Hz. It delivers 0.2 l/min at a maximum operating pressure of 30 bar.
The pump is equipped with a 3-litre plastic reservoir, pressure switch, pressure gauge, and level switch. The outlet connection is G 1/4" thread.
Protection class is IP 54. The permitted ambient temperature range is +10 °C to +40 °C. The pump operates in intermittent mode with a duty cycle of 20 % (operating mode S3).
Compatible lubricant: fluid grease, NLGI grade 000 or 00.
