SIEMENS - 1FK6060-6AF71-1AH0
SIEMENS - 1FK6060-6AF71-1AH0

SIEMENS 1FK6060-6AF71-1AH0

Motor

Order-No.SB119
MakeSIEMENS
OriginGermany
Conditionused
LocationEnnepetal - Hall 3
Delivery Termsimmediately
QuotationPackage shipping
Priceupon request

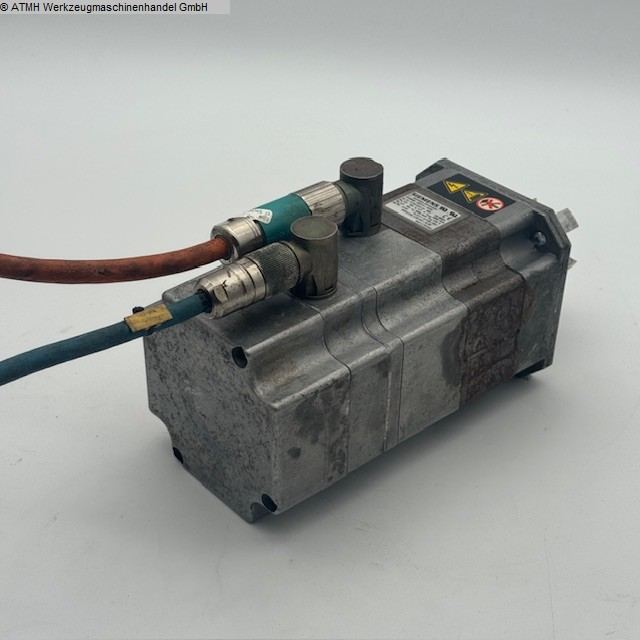

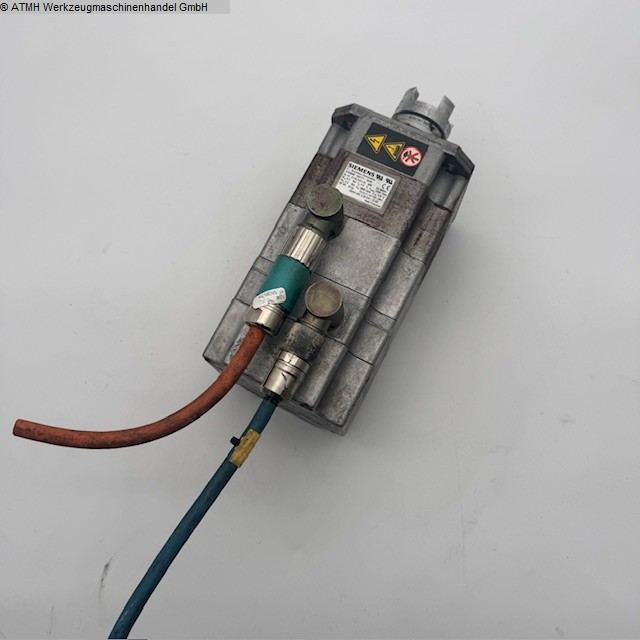

Siemens 1FK6060-6AF71-1AH0 brushless servo motor, 3000 rpm, 6 Nm, with brake – in working order

A second-hand, fully functional Siemens brushless servo motor from the 1FK6 series is for sale.

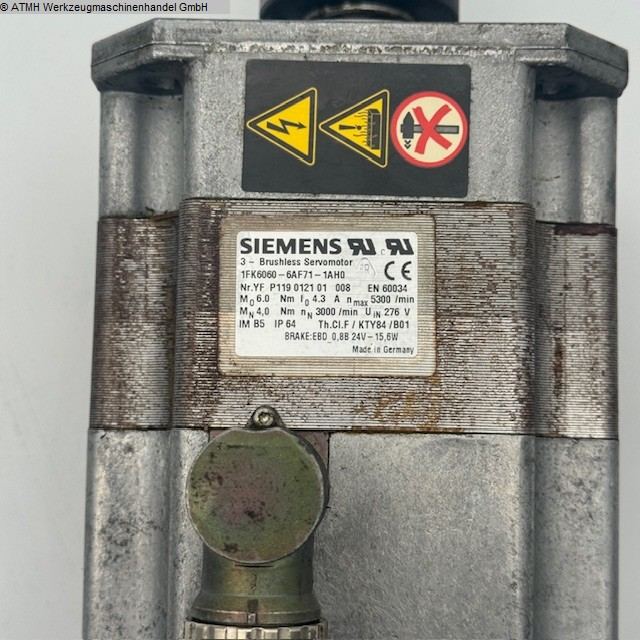

Manufacturer: Siemens
Type: 1FK6060-6AF71-1AH0
Design: 3-phase brushless servo motor / synchronous servo motor
Technical specifications:
6-pole servo motor
Stall torque: 6.0 Nm (100 K)
Rated speed: 3,000 rpm
Form factor: IM B5
Protection class: IP64
Self-cooled
Incremental encoder SIN/COS 1 Vss, 2,048 S/R

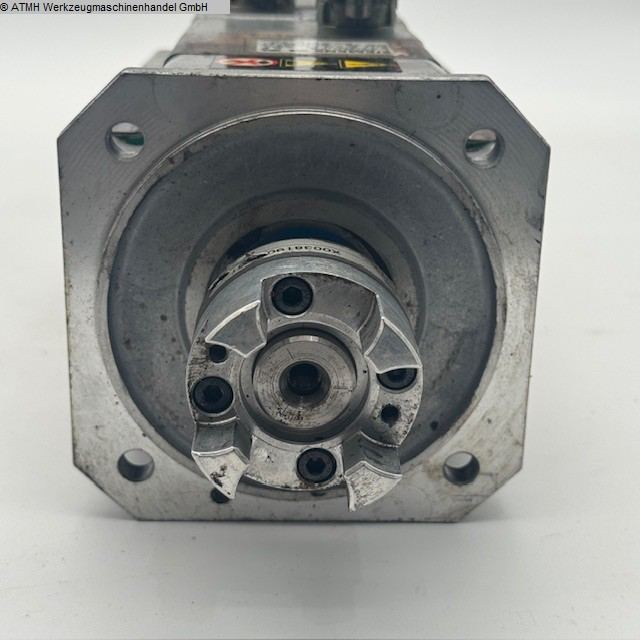

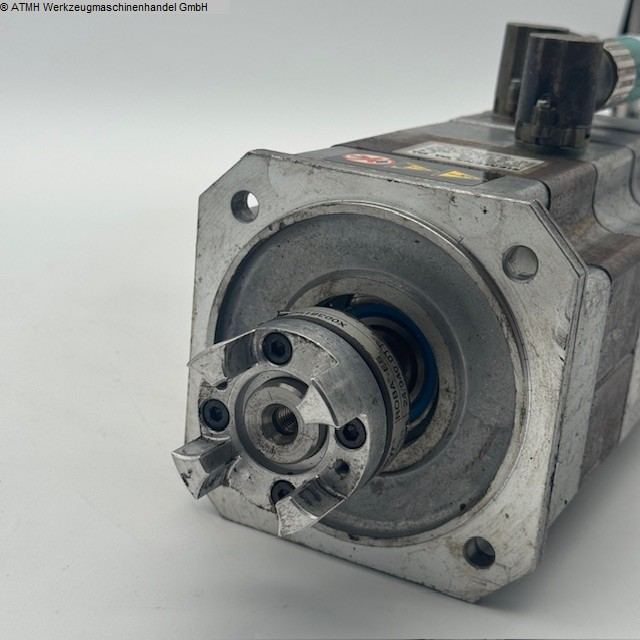

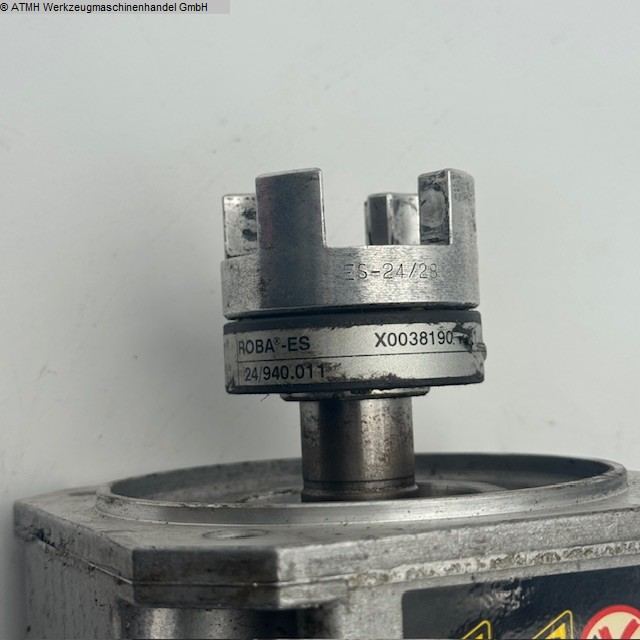

Smooth shaft, tolerance N
With holding brake

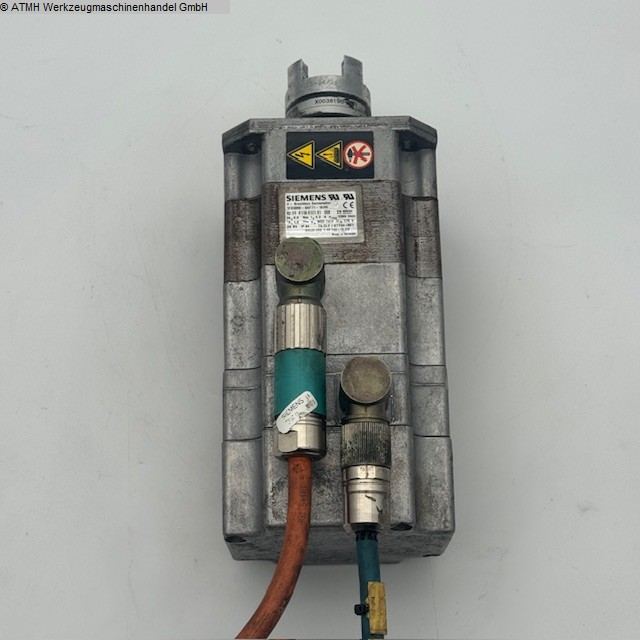

Power and signal connection
These specifications correspond to the Siemens data for the exact order number 1FK6060-6AF71-1AH0.

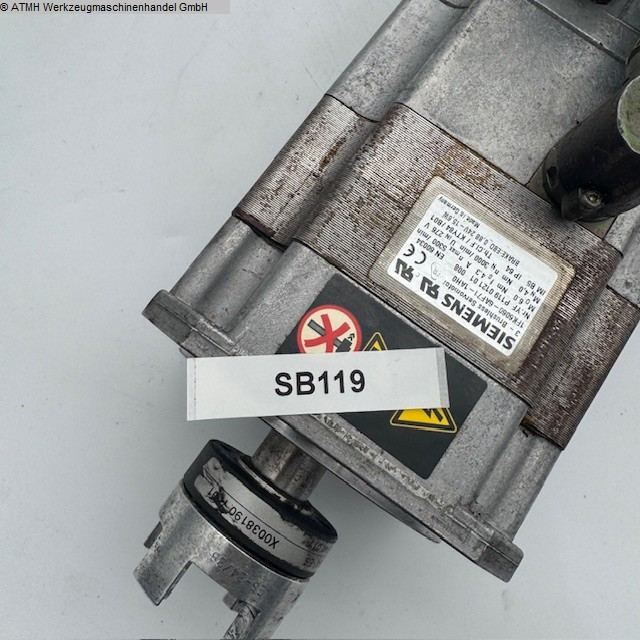

The motor is in a used condition, consistent with its age, showing visible signs of wear, dirt and traces of oxidation/bearing wear on the housing. Please refer to the original photographs.
The servo motor is in working order
