Technical data

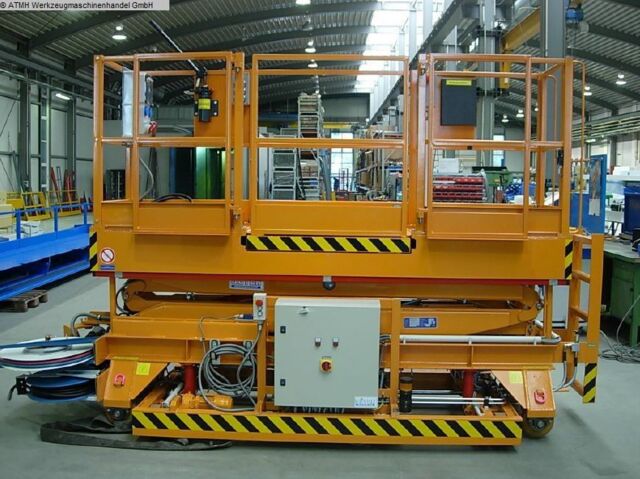

Manufacturer BÜTER Hebetechnik
Type: HA 05-50
Year of construction: 2008
Load capacity 500 kg
Own weight 3700 kg
Lifting height 4842 mm
Overall height 1222 mm
Platform size 3000 mm x 700 mm
Lifting time approx. 30 sec
Lowering time approx. 30 sec
Perm. ambient temperature -10°C - +40 ºC
Motor supply: 400 V, 50 Hz
Rated current: IN = 10 A + 4.5A
Connected load 4.0 + 1.5 kW
Control voltage 24 V
IP protection class IP54
Operating pressure Lifting platform 182 bar
Dbv setting 218 bar
Pump capacity 12 l/min
Operating pressure lifting/lowering chassis 36 bar
Dbv setting 50 bar
Pump capacity 3.1 l/min
Oil type HLP 32
User manual available!
TÜV until 07/2024
