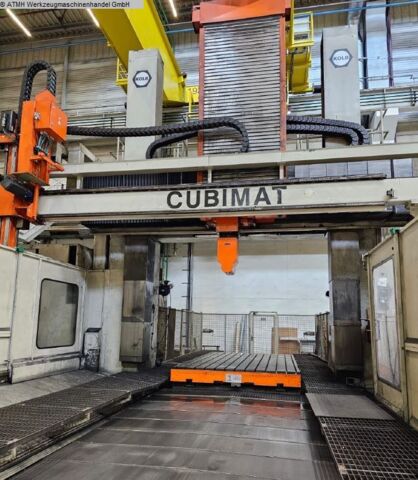

KOLB Cubimat VC 2500 x 4500mm
Planer-Type Milling M/C - Double Column
| Order-No. | S55005 |
| Make | KOLB |
| Built in | 1998 |
| Control Name | Fidia |
| Condition | Used |
| Location | ingolstadt |
| Delivery Terms | According to the arrangement |
| Quotation | Free on truck from location |
| Price | upon request |
| x-travel |
|---|
| 6000 mm |
| y-travel |
|---|
| 4000 mm |
| z-travel |
|---|
| 1250 mm |
| w-axis |
|---|
| 1500 mm |
| Control |
|---|
| Fidia |
| max. workpiece weight |
|---|
| 60000 kg |
| Control unit for tool magazine/tool changer |
|---|
| Siemens |
| turning speeds |
|---|
| 6,3 - 4000 U/min |
| surface area |
|---|
| 2500 x 4500 mm |
| tool taper |
|---|
| 48 St. |
| daylight between the side columns |
|---|
| SK50 |
| rapid traverse |
|---|
| 3700 mm |
| total power requirement |
|---|
| 30000 m/min |
| weight of the machine ca. |
|---|
| 63 kW |
| required space |
|---|
| 150 t |
| 16,8 x 10,3 x 7,9 m |
