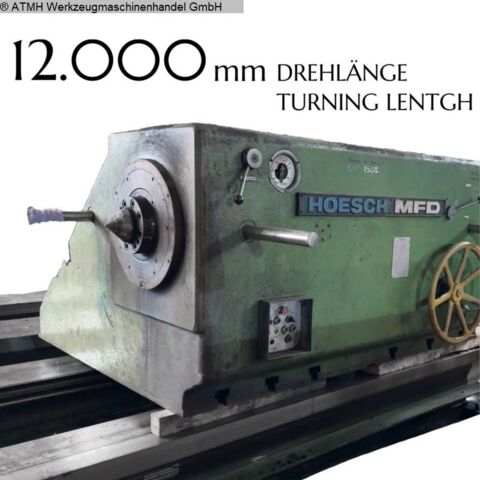

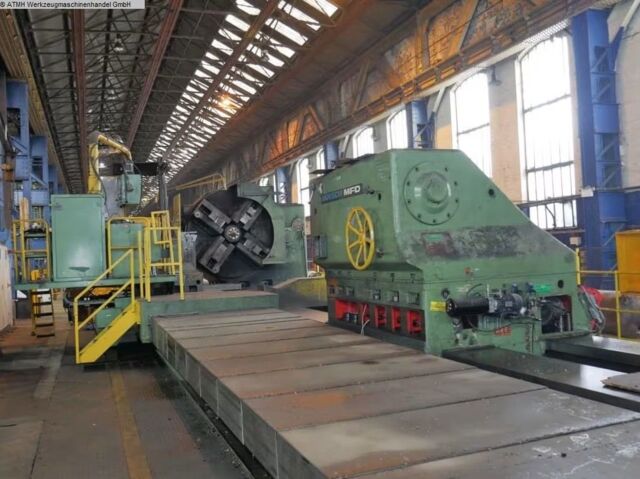

Hoesch MFD D2000 SGK-1

Heavy Duty Lathe

Order-No.S5404
MakeHoesch MFD
Built in1973
Control NameSIEMENS
OriginGermany
ConditionUsed
LocationUnited Kingdom
Delivery Termssoon available
QuotationFree on truck from location
Priceupon request
turning diameter over bed
2235 mm
turning diameter over slide rest
2997 mm
turning length
12200 mm
Control
SIEMENS
faceplate diameter
2000 mm
weight of the machine ca.
220 t

HOESCH MFD CNC HEAVY DUTY LATHE WITH SIEMENS CONTROL
Type: D2000 SGK-1
Technical documentation is included

Technical Specifications
Faceplate 2006mm
Centre Height 1,499mm
Swing Over Saddle 2235mm
Swing Over Bed 2997mm
Turning Length 12192mm
Min/Max Workpiece Held In Chuck Ø457/1600mm
Maximum Workpiece Weight 110 Ton
Speed Range 0.5- 140rpm (300hp Motor)
Feed Range 0.0118-7.08''/Rev.
Steady Capacity Ø356-902mm
Copying Depth 508mm lnductive
Maximum Cutting Force 30,000Nm
Twin Barrel Steady Capacity Ø356- 902mm, 50 Ton Capacity, Roller Type.


Machine Data

1.1 Total Machine
Max. Swing over bed slide
2,000 mm
Center height over bed
1,500 mm
Distance between centers
12,000 mm
max. weight of workpiece
100,000 kp
height measured from shop floor level up to machine axis 2,200 mm
1.2 Headstock
Diameter of main spindle
670 mm
Diameter of faceplate
2,000 mm
Max. chucking diameter
1,600 mm
Min. chucking diameter
455 mm
Dead Center Angle
80 °
Faceplate Speed:
Constant torque
1st range 0,5 – 2,6
2nd range 1,25 – 7,2
3rd range 3,1 - 18
4th range 7,8 - 45
Constant capacity
1st range 9,0
2nd range 22,6
3rd range 56
4th range 140
Capacity of Main Drive 220 HP
Max. Torque faceplate 30,000 kpm
Key Speed 5,7 rev/min
1.3 Saddle
Max. admissible main cutting force 30,000 kp
Feed Speed longitudinal 0,3 – 120 mm / min
Feed Speed transverse 0,3 – 120 mm / min
Rapid Traverse Speed longitudinal 2,000 mm/ min
Rapid Traverse Speed transverse 1,000 mm/ min
Max. copying depth 500 mm
Max. length of tool carrier measured from front edge cross slide to front edge
tool carrier 700mm

Tool carrier – width 60mm
35 mm

Cutting Edge height of tool units 60 mm
Cutting edge height of shank-type tools beeing located on the clamping table
100 mm
Travel of upper tool post 820 mm
1.4 Tailstock
Tailstock barrel diameter 580 mm
Adjustment of the barrel 150 mm
Dead Center angle 80 °
Speed of rapid traverse 2,000 mm / min
Positioning speed 500 mm / min
1.5 Steady
Clamping range 350 – 900 mm
Load 50,000 kp
