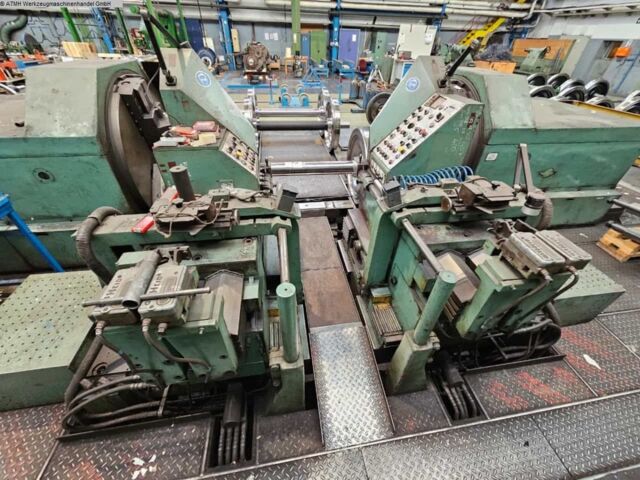

Rafamet UBC 150 wheelset lathe for railway wheelsets
Serial No.: 152 110
Year of manufacture: 1977
Machining range: Diameter from 700 mm to 1500 mm
Gauge of the wheelsets to be machined in standard version: 1435mm
track widths: 1435mm , 1524mm , 1676mm
Length of wheelsets to be machined: 1640-3000mm
Running diameter of the wheelset: 700-1500mm
Driving diameter: 350-1350mm
Width of the wheelset tyre: up to 140mm
Fork dimensions of the wheelset lathe_ 8700x360x3250mm
Total installed power: 172kW
Weight of the machine: 59200kg

Speed of the setting movement
Lifting and centring device: 2500 mm/min.
Headstocks: 1320 mm/min.
Quills: 550mm/min.
Supports in the longitudinal direction: 1300 mm/min.
