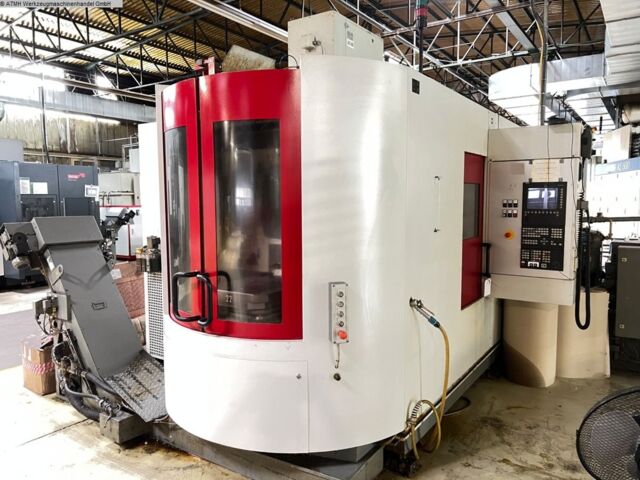

HECKERT CWK 500D
Machining Center - Horizontal
| Order-No. | S505 |
| Make | HECKERT |
| Built in | 2003 |
| Control Name | Sinumerik 840D |
| Origin | Germany |
| Condition | Used |
| Delivery Terms | According to the arrangement |
| Quotation | Free on truck from location |
| Price | upon request |
| x-travel |
|---|
| 800 mm |
| y-travel |
|---|
| 600 mm |
| z-travel |
|---|
| 805 mm |
| Control |
|---|
| Sinumerik 840D |
| weight of the machine ca. |
|---|
| 13 t |
1 horizontal machining centre
Make: HECKERT
type: CWK 500D
year 2003
serial no. 16087
control, make: Siemens, type: Sinumerik 840D
travel X/Y/Z 800 x 600 x 805 mm
2-fold pallet changer
pallet size 500 x 500 mm
NC-rotary table 360 x 0,001°
60-fold tool changer,
tool holder HSK 63
Speed max. 15,000 rpm
IKZ 50 bar
Operating hours 32,450
Spindle hours 6.080
Accessories:
Coolant temperature control, belt filter, chip conveyor, spindle cooling,
Infrared probe preparation
