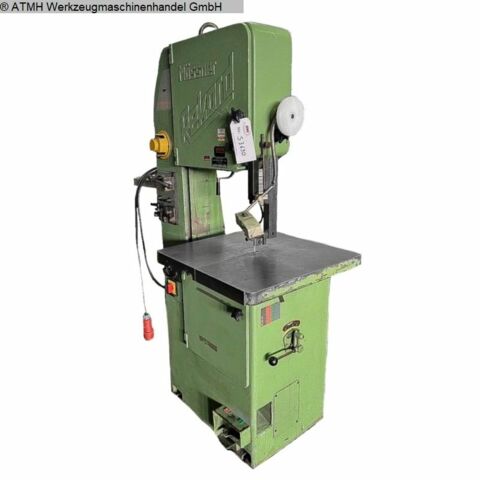

MÖSSNER SM/420
Band Saw - Vertical
| Order-No. | S3690 |
| Make | MÖSSNER |
| Built in | 1982 |
| Condition | Used |
| Location | Ennepetal - Hall 3 |
| Delivery Terms | available immediately |
| Quotation | From stock - free on truck |
| Price | upon request |
| table-size |
|---|
| 600 x 600 mm |
| weight of the machine ca. |
|---|
| ca. 650 kg |
Technical specifications:
Roll diameter approx. 420mm
Projection in width approx. 415mm
Projection in height approx. 265mm
Table size approx. 605 x 600 mm
Belt speed 18 - 562 m/min. 8 levels
Saw band length min./max. 3150 / 3260mm
- Saw band speed over 4 gear stages and 2 engine speeds
- Saw blade butt welder IDEAL BS 0-16 with scissors and whetstone
- swiveling work table in 2 axes
Dimensions: approx. L x W x H 950 mm x 750 mm x 1900 mm
Weight 600kg
with table feed
Description has been adopted.
