GERD WOLFF - 4000x2000x150mm
GERD WOLFF - 4000x2000x150mm

GERD WOLFF 4000x2000x150mm

bolster plate
- BRAND NEW -

Order-No.S3661
MakeGERD WOLFF
OriginHolland
ConditionNEW
LocationEnnepetal - Hall 3
Delivery Termsavailable immediately
QuotationFrom stock - free on truck
Priceupon request
plate width
2000 mm
plate depth
4000 mm
plate height
150 mm
weight
3900 kg

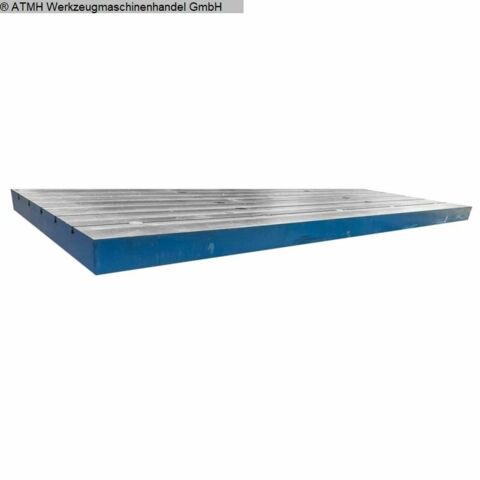

Assembly field - test field - assembly platform - clamping plate
Product parameters: freely combinable.
Clamping plate : 4000 x 2000 x 150mm
T-slots - width: 22mm
Number of grooves: 7
Edge distance: 250mm
Material: cast iron HT250.
Surface roughness: ra3.2-ra6.3.
Flatness less than 0.12mm.
Surface processed according to DIN 876/III

Inquiry about

GERD WOLFF 4000x2000x150mm
(Catalog-No. S3661)
