Workpiece thickness: 1-70 mm
Min. workpiece length: 350 mm
Min. workpiece length with magnetic or vacuum track: 80 mm
Band filter unit volume Ab=900 approx. 350 l
Band filter unit volume Ab=1400 approx. 400 l
Working height constant 1000 mm
Feed speed 2/4 m/min
Feed speed stepless 1.5-8 m/min
Operating voltage 400 VAC
Control voltage 24 V DC, 230 VAC
Frequency 50Hz
Compressed air connection R 3/8"
Minimum compressed air pressure 5 bar
Minimum compressed air volume EMSN II +2F 10 NI/min
Minimum compressed air quantity EMSN II /L +2F 80 NI/min
Overall electrical connection See installation plan
Weight of the machine working width 900 mm approx. 4200 kg
Weight of the machine working width 1400 mm approx. 5100 kg
Weight of the machine working width 1540 mm approx. 5600 kg
Sandpaper dimensions sanding roller AB=900 1540 mm long x 900 mm wide
Sandpaper dimensions sanding roller AB=1400 1540 mm long x 1400 mm wide
Sandpaper dimensions sanding roller AB=1540 1540 mm long x 1540 mm wide

SERIOUS

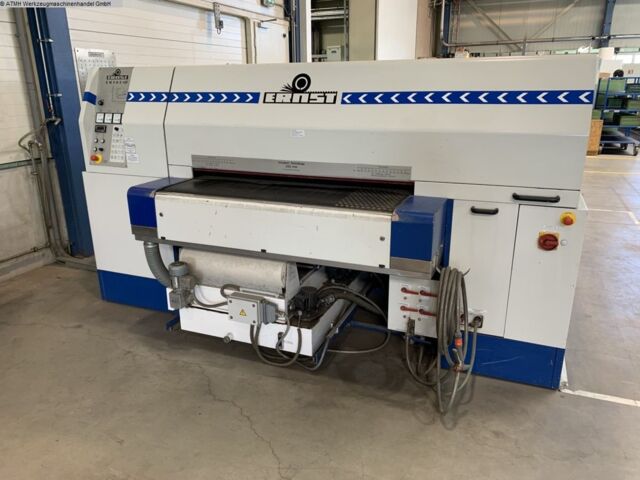

Automatic sheet metal deburring machine with wet grinding device
Type EM 5 N/II/L + 2 F 1400
Year of construction 2008 Factory - No. 780063
Machine/Equipment:
Sheet metal deburring machine using the wet ship process
for stamping, laser and nipple parts of different materials with flexible
grinding roller,
as well as 2 flap brushes for particularly high edge rounding and 2
Spring steel brushes for oxide removal (worn out)
The machine is equipped with a continuous conveyor belt for the
Workpiece transport equipped.
Effective working width: 1380mm
Minimum workpiece length: 350mm
Special equipment:
•Vacuum suction system 300mm wide, for non-magnetic small parts
Minimum length of 80mm, with a minimum area of ??200cm²
•Magnet track 300mm wide
Minimum length of 80mm, with a minimum area of ??40cm²
•Frequency converter for stepless feed & speed regulation
•various Abrasives as accessories
