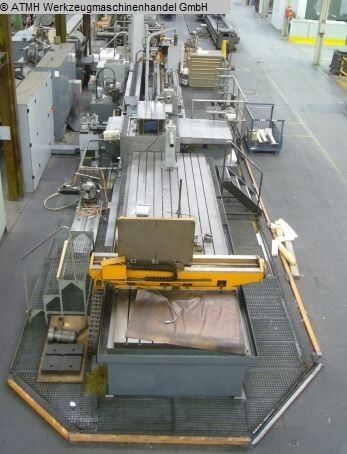

Type of machine: deep hole drilling machine
Model / Type: TB 2 15 30001KT
Year of construction: 1993
Manufacturer: hole
Machine number: 221-3000-2093
Machine weight: approx. 20,000 kg
Machine footprint:
Width = approx. 3800mm
Length = approx. 13500mm
Height = approx. 3100mm
Drilling length: approx. 3500mm
Drilling capacity: drill 45mm / drill out 80mm
Spindle speed range: 45 - 6000 rpm
Control: Siemens Sinumerik 805
Hamül – coordinate table
Type: KT 8.5 – 10.10
Clamping surface: approx. 1100 mm x 980 mm
Travel: Y - axis: approx. 800mm
Traverse path X - axis: approx. 500mm
7 pieces clamping - T - grooves: 18 mm
Special equipment:
1 piece Fibroplan NC - rotary indexing table
Type: NC 1.05
Permissible transport load in horizontal use 2500 kg
With manual chuck Forkardt F 630
The NC rotary indexing table can be adjusted manually in the longitudinal and
transverse directions relative to the clamping table and is clamped
hydraulically.
1 piece chips - centrifuge
Type: VZ5A from CEPA
Drum capacity: 80 liters
Loading weight max. 100 kg
Drum - Ø: 600 mm
Speed: 1000 rpm
1 additional pump for large drill Ø
1 piece Bosch radial piston pump no.: 0 514 850 005
