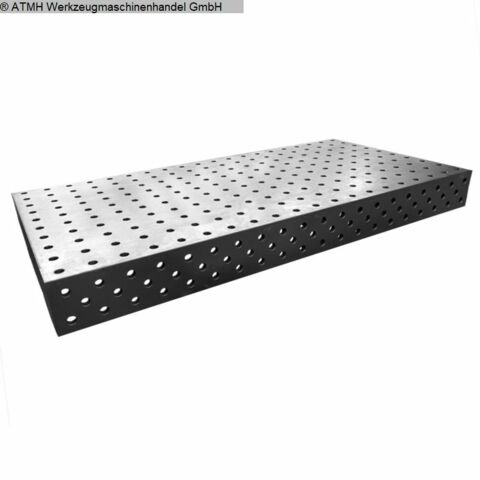

Manufacturer: GERD WOLFF Maschinenfabrik®

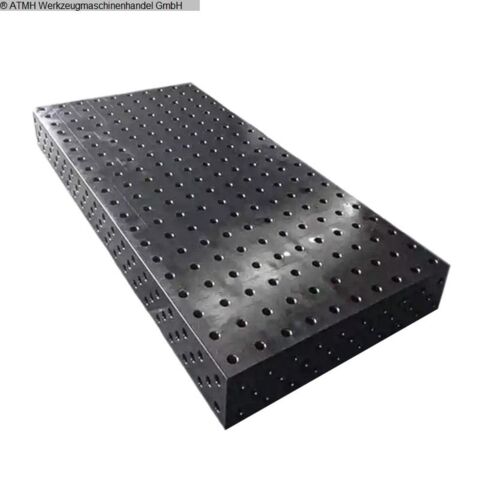

Dimensions and Weight
Length: 1500 mm
Width: 2000 mm
Height: 200 mm
Weight: 950 kg
Technical Specifications
Material: Welded Q355 steel plate
Plate thickness: 25 mm
Hole diameter: Ø 28 mm
Hole spacing: 100 mm diagonal grid pattern
Engraved grid lines with 100 mm spacing
Three-day gas nitriding process
Surface hardness of the nitrided layer: HV 450–630
Laser-engraved precision scale
Reinforced underside with weld seams and ribs
Enhanced corrosion resistance, fatigue strength and resistance to cyclic loading
Protection against adhering welding spatter
Table Legs
4-6 height-adjustable table legs
Working height: 820–865 mm
Leg adjustment range: 620–665 mm
Load capacity per leg: approx. 1,500 kg
Accessories
Optional 40-piece accessory set including various stops, stop and clamping squares, clamps, prism clamping bolts and more
Available Table Sizes (L × W × H)
1000 × 1000 × 200 mm
1200 × 1200 × 200 mm
1200 × 2400 × 200 mm
1500 × 1000 × 200 mm
1500 × 1500 × 200 mm
1500 × 3000 × 200 mm
2000 × 1000 × 200 mm
2000 × 1500 × 200 mm
2000 × 3000 × 200 mm
2000 × 4000 × 200 mm
3000 × 2000 × 200 mm
Notes
The images are for illustrative purposes only and may differ from the actual dimensions.
Our welding tables are manufactured by a renowned manufacturer exclusively for our distribution brand, GERD WOLFF Maschinenfabrik.
