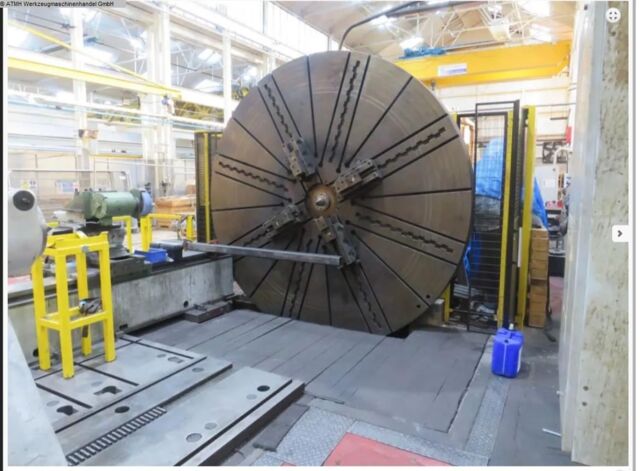

HEYLIGENSTAEDT 6P
Facing Lathe
Order-No. | S1897 |
Make | HEYLIGENSTAEDT |
Built in | 1953 |
Condition | Used |
Delivery Terms | According to the arrangement |
Quotation | Free on truck from location |
Price | upon request |
turning diameter over plate |
---|
// mm |
Faceplate diameter: 3500mm
Center height over plate: 1320mm
Turning diameter over plate: 2600mm
Turning diameter in the pit: 3600mm
Turning diameter over bed: 1300mm
Turning length: about 2400mm
Max. workpiece weight: 22000kg
Max. torque on the faceplate: 5000 mkg
Faceplate ring gear pitch circle diameter: 1900mm
Main spindle bore: 120mm
range of speeds
normal: 0.71-35.5 rpm
increased: 1-50 rpm
increased: 1.4-71 rpm
Drive power: 38kW
