Below you can see some examples with different dimensions.
1000 mm x 1000 mm x 200/300 mm
1500 mm x 1500 mm x 200/300 mm
2000 mm x 2000 mm x 200/300 mm
3000 mm x 1500 mm x 500 mm
3500 mm x 2500 mm x 400 mm
4000 mm x 3000 mm x 300 mm
5000 mm x 1500 mm x 300 mm
6000 mm x 1500 mm x 300 mm
7000 mm x 3000 mm x 300 mm


Casting qualtity: HT 250.
Surface is machined according to DIN 876/III

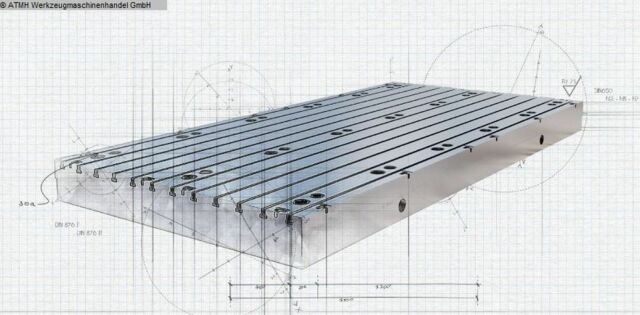

System plate field - Clamping plate - Clamping cube - Clamping angle -
Modular plate - Plate field - Milling table - Clamping tables
