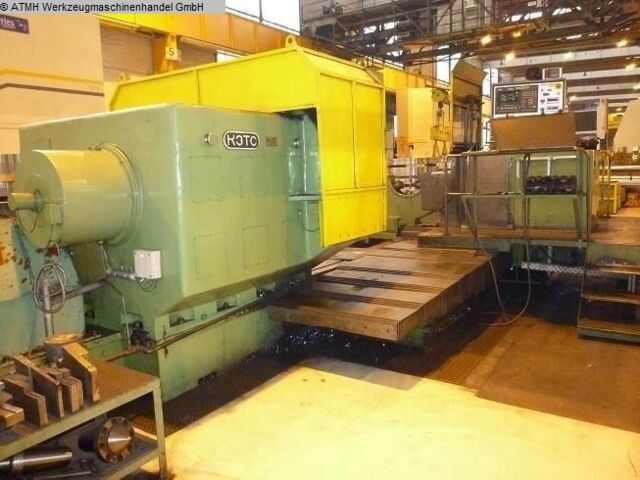

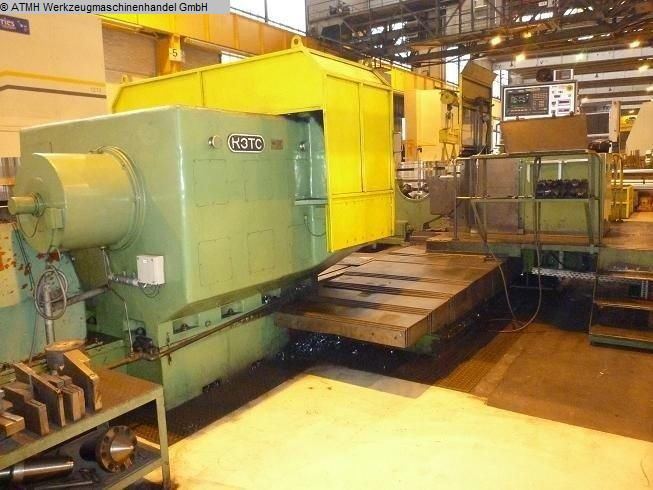

- Type 1 K 671 320 F3
- Year of manufacture 1988 (first commissioned in 1998)
- Turning length 10,000 mm
- Turning diameter over bed 2,000 mm (modified)

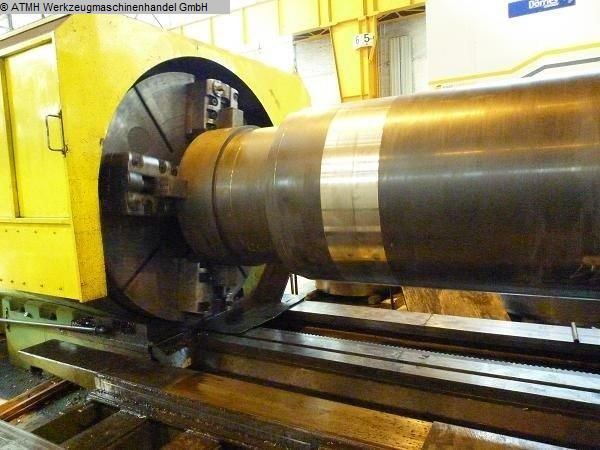

- Faceplate diameter 1,950 mm
- Faceplate clamping range 400 - 1,350 mm
- Speeds 1.00 - 140 rpm
- Torque 125,000 Nm
- Main cutting force 130 kN max.
- Automatic swiveling tailstock
- Max. workpiece weight 70 tonnes
- Max. workpiece weight with steady rest 100 tonnes
- Drive power 100 kW

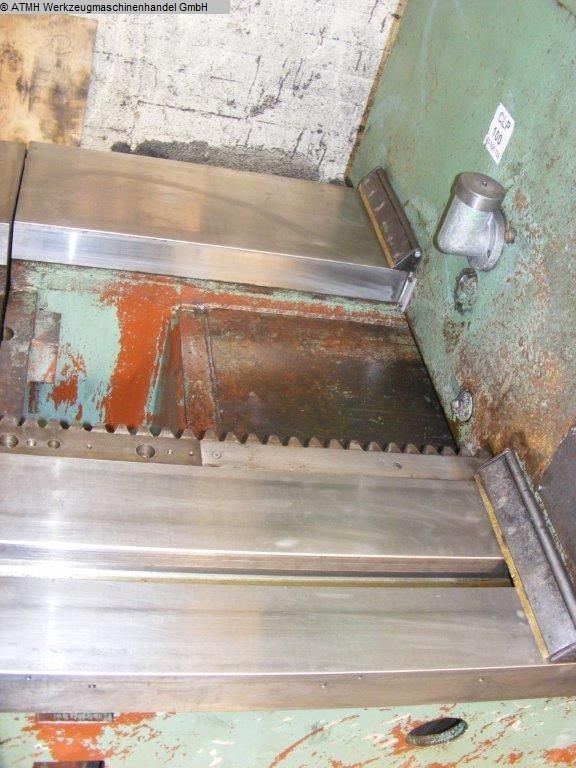

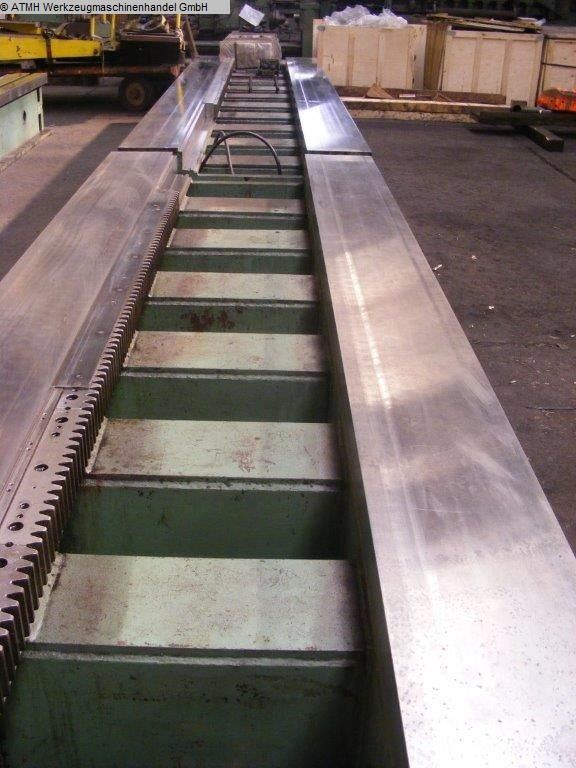

- Number of bed ways 4
- Dimensions 22,000 x 6,200 x 2,900 mm
- CNC control SIEMENS 840D (2010 for €220,000.00)
- Support feed X-Z 0.3 - 4,000 mm/min.
- Support rapid traverse X-Z 4,000 mm/min.
- Inner cone dimensions 140 x 1:7
- The machine complies with CE guidelines

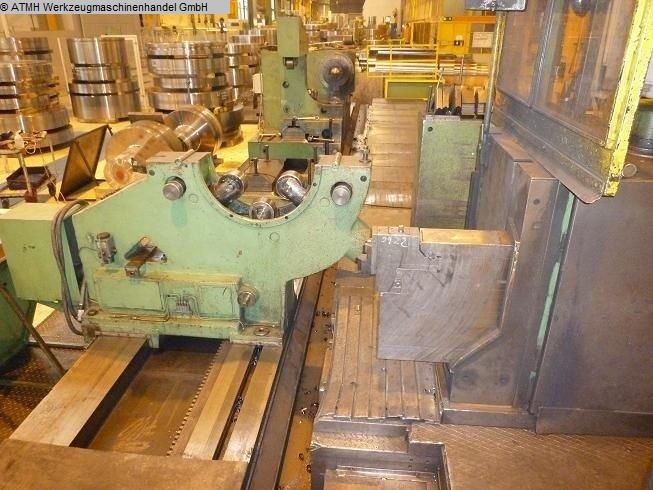

- Includes 2 steady rests, 1 roller block, 4 jaws, boring device
- Condition: very good condition
