GERD WOLFF 1500 x 1500 x 800mm
bolster plate
- BRAND NEW -
| Order-No. | H1154 |
| Make | GERD WOLFF |
| Built in | 2023 |
| Condition | NEW |
| Location | Ennepetal - Hall 1 |
| Delivery Terms | According to the arrangement |
| Quotation | From stock - free on truck |
| Price | upon request |
| plate width |
|---|
| 1500 mm |
| plate depth |
|---|
| 1500 mm |
| plate height |
|---|
| 800 mm |
| weight |
|---|
| 3220 kg |

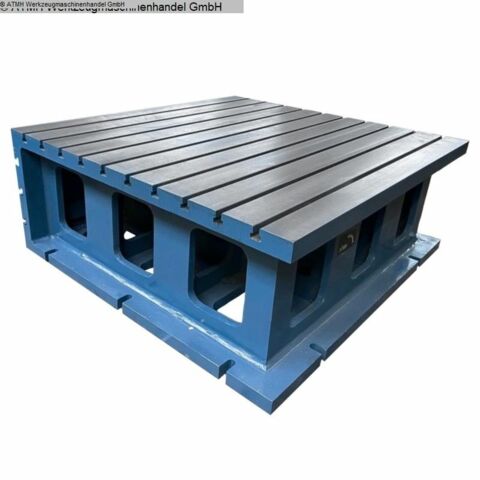

Clamping cube - T-slot plates
1500 x 1500 x 800 mm
If you have not found the size you are looking for, you can also
send us an e-mail with the completed PDF form. With this form we can produce an
individual plate for you.
Parameters can be combined as desired.
Clamping plate : 1500 x 1500 x 800 mm
T-slots - width: 38mm x 22mm
T-slot spacing: 140mm
Edge distance: 40mm
Number of grooves: 10
Casting quality: HT250
Flatness less than 0,12 mm
Surface machined according to DIN 876/III
