GERD WOLFF - 2000 x 1000 x 310mm
GERD WOLFF - 2000 x 1000 x 310mm

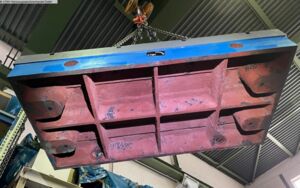

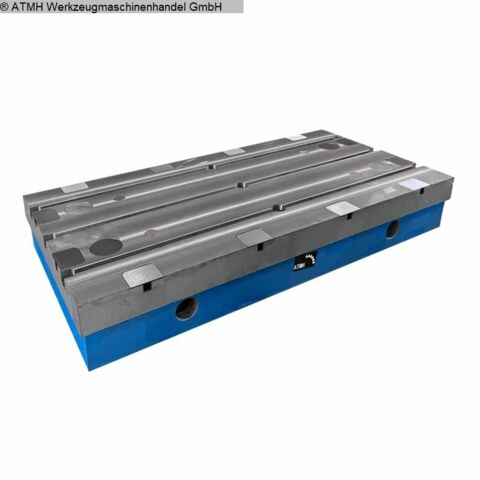

GERD WOLFF 2000 x 1000 x 310mm

bolster plate
- BRAND NEW -

Order-No.H1134
MakeGERD WOLFF
Built in2022
ConditionNEW
LocationEnnepetal - Hall 3
Delivery Termsimmediately
QuotationFrom stock - free on truck
Priceupon request
Send inquiry »
plate width
2000 mm
plate depth
1000 mm
plate height
310 mm
weight
1650 kg
dimensions of the machine ca.
2000 x 1000 x 300 mm

Clamping plates - T-slot plates - panel array
2000 x 1000 x 310 mm
If you have not found the size you require, you can also send us an e-mail
send us an e-mail with the completed PDF form. With this we can
can produce an individually manufactured panel for you.

Number of grooves: 3
edge distance: 185mm

groove spacing: 270mm
Groove width: 28mm
Casting quality HT250
Flatness less than 0,12 mm
Surface machined according to DIN 876
Edge distance: 185mm
Groove spacing: 270mm
Groove width: 28mm
Casting quality HT250
Flatness less than 0,12 mm
Surface machined according to DIN 876/III

Documents

Inquiry about

GERD WOLFF 2000 x 1000 x 310mm
(Catalog-No. H1134)
