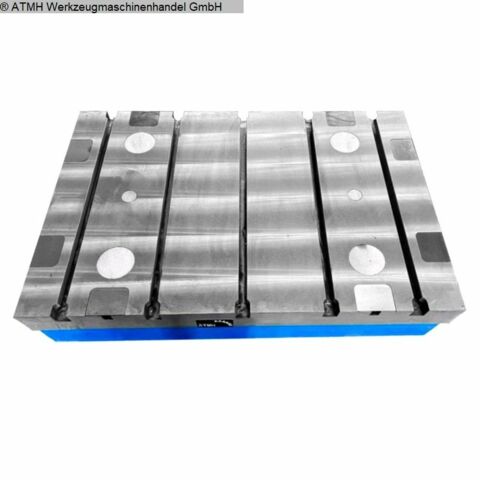

GERD WOLFF 1500 x 1000 x 310mm
bolster plate
- BRAND NEW -
| Order-No. | H1130 |
| Make | GERD WOLFF |
| Built in | 2022 |
| Condition | NEW |
| Location | Ennepetal - Hall 3 |
| Delivery Terms | immediately |
| Quotation | From stock - free on truck |
| Price | upon request |
| plate width |
|---|
| 1500 mm |
| plate depth |
|---|
| 1000 mm |
| plate height |
|---|
| 310 mm |
| weight |
|---|
| 1330 kg |
| dimensions of the machine ca. |
|---|
| 1500x 1000 x 310 mm |
Clamping plates - T-slot plates
1500 x 1000 x 310 mm
If you have not found the size you are looking for, you can also
send us an e-mail with the completed PDF form. With this form we can produce an
individual plate for you.
Number of hookers: 5
Edge distance: 135mm
Hook spacing: 270mm
Hook width: 28mm
cast qualtity HT250
Flatness less than 0.12 mm.
Surface processed according to DIN 876 / III
2x in stock
