GERD WOLFF 3000 x 1500 x 300mm
bolster plate
- BRAND NEW -
| Order-No. | H1129 |
| Make | GERD WOLFF |
| Condition | NEW |
| Location | Ennepetal - Hall 3 |
| Delivery Terms | According to the arrangement |
| Quotation | From stock - free on truck |
| Price | upon request |
| plate width |
|---|
| 3000 mm |
| plate depth |
|---|
| 1500 mm |
| plate height |
|---|
| 300 mm |
| weight |
|---|
| 3580 kg |
| dimensions of the machine ca. |
|---|
| 3000 x 1500 x 300 mm |

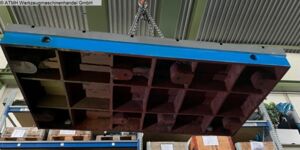

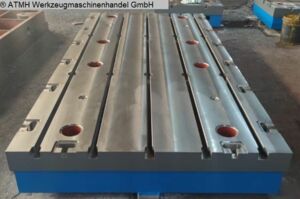

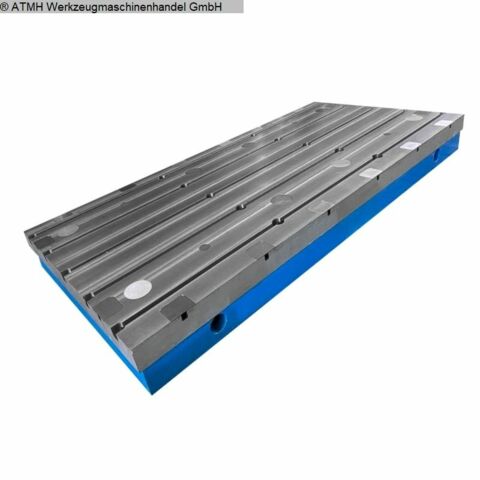

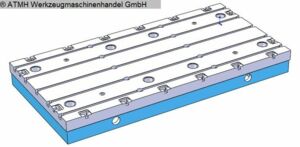

GERD WOLFF clamping plate 3000 x 1500 x 300 mm
If you cannot find the size you need, you can also send us an e-mail
with the completed PDF form (attached). This way, we can
manufacture a clamping plate according to your requirements.
T-slot size: 52 x 28
T-slot spacing: 300
Number of slots: 5
Edge distance: 150
Weight: 3580 kg
Casting quality HT250
Flatness less than 0.12 mm
Surface machined according to DIN 876/III
