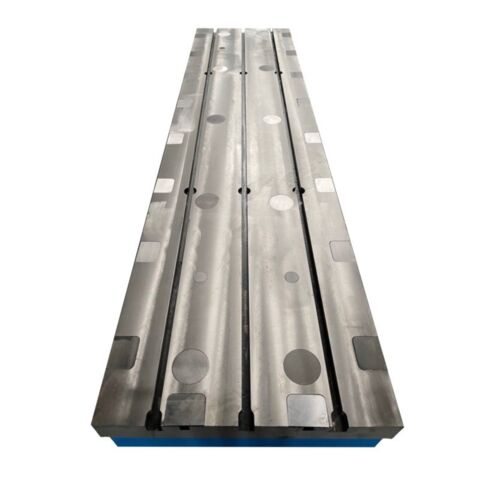

GERD WOLFF 4000 x 1000 x 310mm
bolster plate
- BRAND NEW -
Order-No. | H1127 |
Make | GERD WOLFF |
Built in | 2022 |
Condition | NEW |
Location | Ennepetal - Hall 3 |
Delivery Terms | immediately |
Quotation | From stock - free on truck |
Price | upon request |
plate width |
---|
4000 mm |
plate depth |
---|
1000 mm |
plate height |
---|
310 mm |
weight |
---|
3100 kg |
dimensions of the machine ca. |
---|
4000 x 1000 x 300 mm |
Clamping plates - T-slot plates - plate field
4000 x 1000 x 310 mm
If you have not found the size you are looking for, you can also
send us an e-mail with the completed PDF form. With this we can
to have an individually manufactured panel made for you.
Number of grooves: 3
edge distance: 190mm
groove spacing: 270mm
Groove width: 28mm
Casting quality HT 250
Flatness less than 0.12 mm
Surface machined according to DIN 876/III
