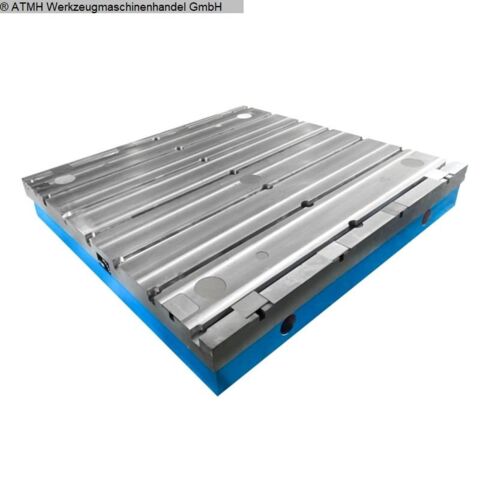

GERD WOLFF 2000 x 2000 x 310mm
bolster plate
- BRAND NEW -
| Order-No. | H1124 |
| Make | GERD WOLFF |
| Built in | 2022 |
| Condition | NEW |
| Location | Ennepetal - Hall 3 |
| Delivery Terms | immediately |
| Quotation | From stock - free on truck |
| Price | upon request |
| plate width |
|---|
| 2000 mm |
| plate depth |
|---|
| 2000 mm |
| plate height |
|---|
| 310 mm |
| weight |
|---|
| 2930 kg |
| dimensions of the machine ca. |
|---|
| 2000 x 2000 x 300 mm |
Clamping plates - Clamping cube - Plate field
2000 x 2000 x 310 mm
If you have not found the size you need, you can also send us an e-mail
send us an e-mail with the filled PDF form. With this we can
to produce an individual panel for you.
Number of grooves: 7
edge distance: 85mm
groove spacing: 270mm
groove width: 28mm
Casting quality HT250
Flatness less than 0,12mm.
Surface machined according to DIN 876/III
2x in stock
