GERD WOLFF 1000 x 1000 x 310mm
bolster plate
- BRAND NEW -
| Order-No. | H1121 |
| Make | GERD WOLFF |
| Built in | 2022 |
| Condition | NEW |
| Location | Ennepetal - Hall 3 |
| Delivery Terms | immediately |
| Quotation | From stock - free on truck |
| Price | upon request |
| plate width |
|---|
| 1000 mm |
| plate depth |
|---|
| 1000 mm |
| plate height |
|---|
| 310 mm |
| weight |
|---|
| 975 kg |
| dimensions of the machine ca. |
|---|
| 1000 x 1000 x 310 mm |

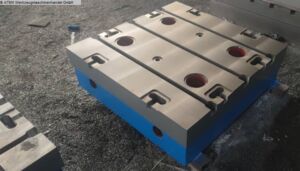

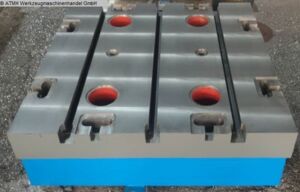

Clamping plates - T-slot plates
1000 x 1000 x 310 mm
If you have not found the size you are looking for, you can also
send us an e-mail with the completed PDF form. With this form we can produce an
individual plate for you.
Number of grooves: 3
edge distance: 185mm
groove spacing: 140mm
Groove width: 14mm
Material: HT250 cast iron.
Flatness less than 0,12 mm.
Surface machined according to DIN 876/III
4 x in stock
