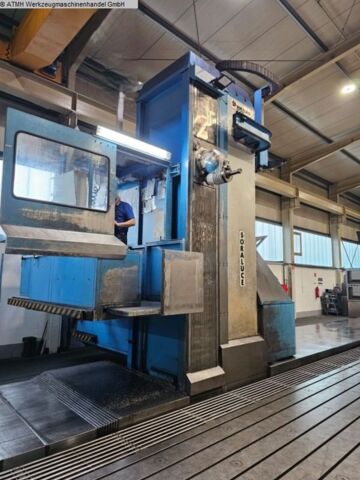

Control: Heidenhain iTNC430
Milling head 2 axes, indexed 2.5°
Vertical (Y-axis): 3600 mm
Transverse (Z-axis): 1500 mm
Longitudinal (X-axis): 12,000 mm
Guide rail length: 14,700 mm
Guide rail width: 1400 mm
Lowest milling position of the spindle nose measured from the floor (head horizontal): 855 mm
Low column design 870 x 900 x 2,625 mm: 3,000 kg
High stand design 870x900x3,025 mm: 3,500 kg
Motor power: 37 kW
Mounting: ISO 50/ DIN 69871-A
Speeds: 11.7:231:3000 rpm
Feed range: 2:2500 mm/min
Rapid traverse
X-axis: 12000 mm/min
Z-Y axis: 15000 mm/min
Feed motor power
X-axis: 55 Nm
Z-axis: 37 Nm
Y-axis: 37 Nm
Accuracy
Positioning accuracy: 0.025 mm
Repeatability: 0.015 mm
Weight: approx. 42,000 kg
Air supply to the machine: 300 L/min at 4.5 bar
NOTE: The clamping plates and chip conveyors are not included in the scope of delivery.
However, we can offer you both used and new clamping plates and chip conveyors on request.
