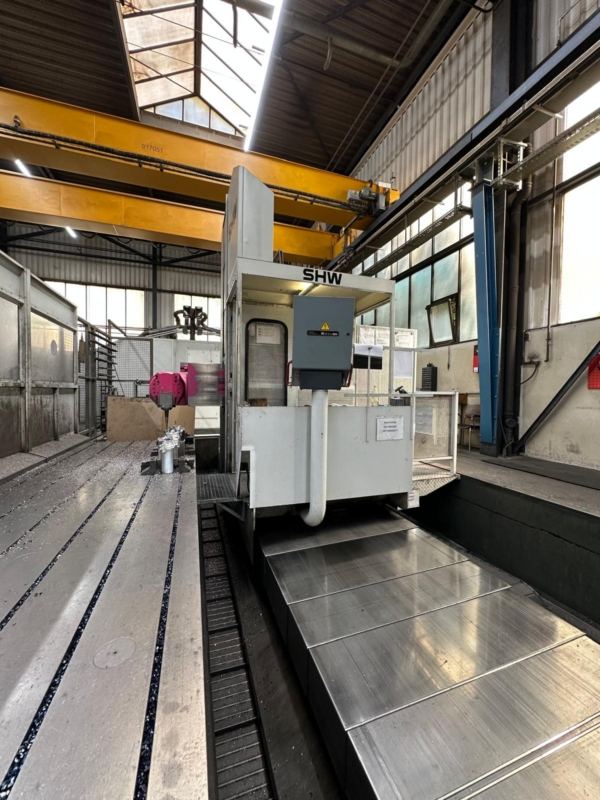

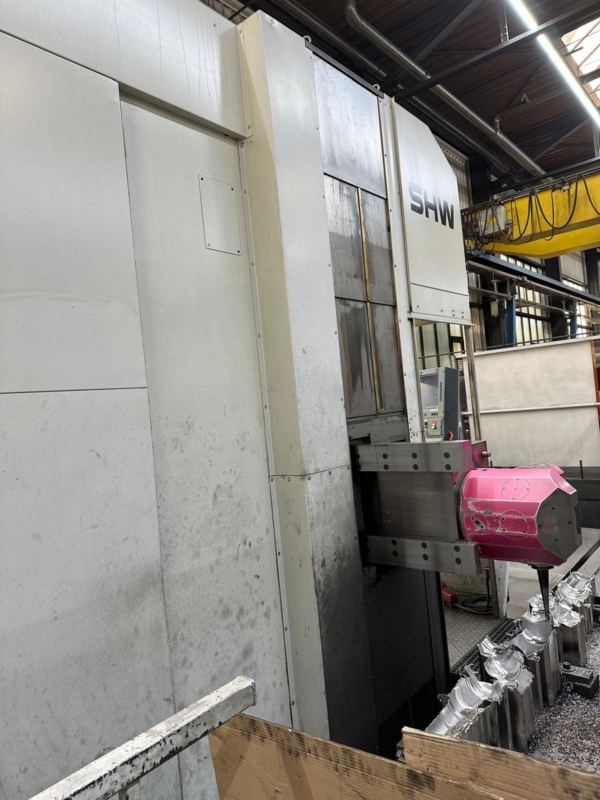

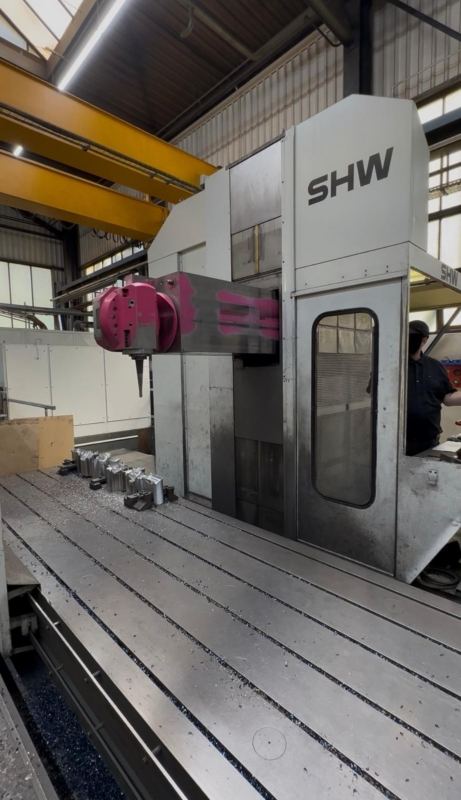

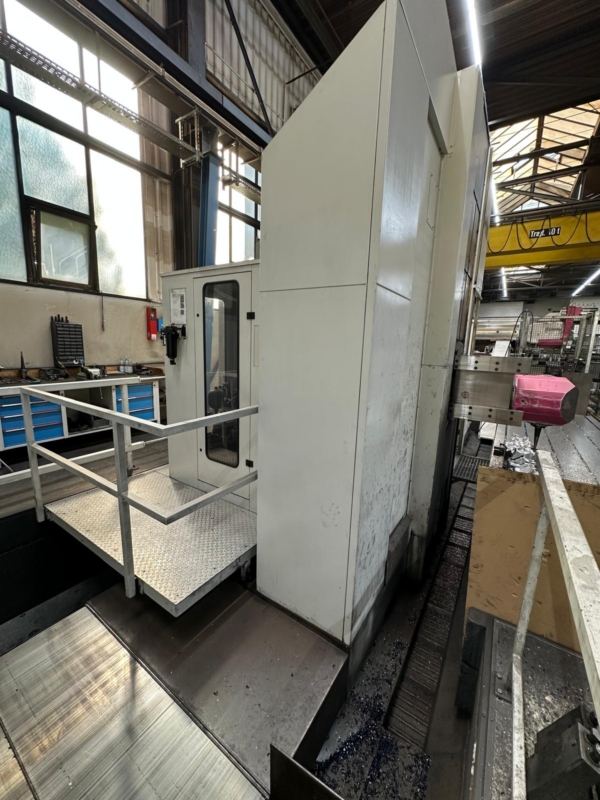

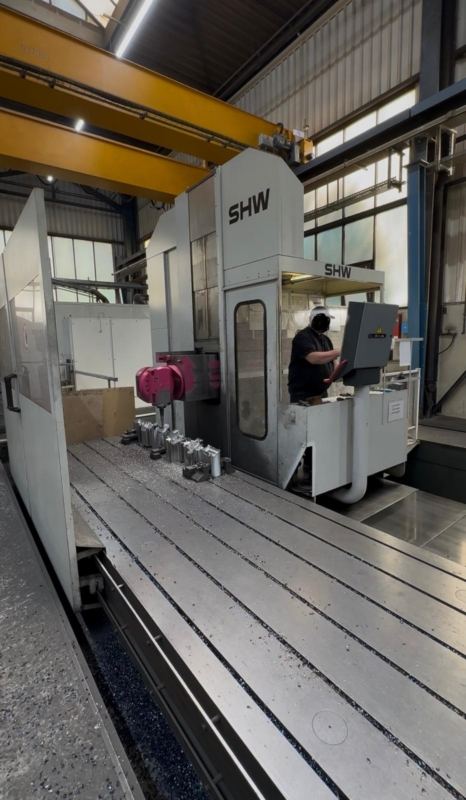

SHW – UFZ5

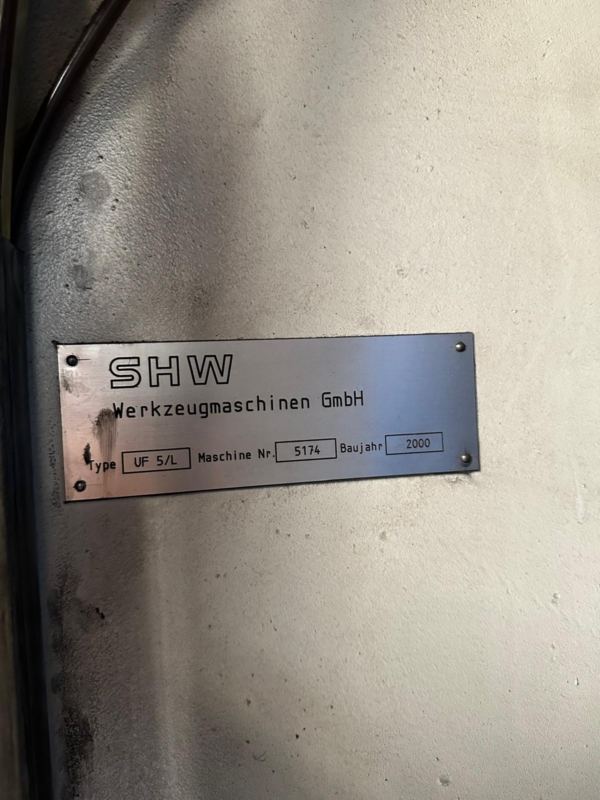

Year of manufacture: 2000
Specifications
X-axis 6000 mm
Y-axis 1600 mm (stroke with vertical head rotated 1900 mm)
Z-axis 1300 mm

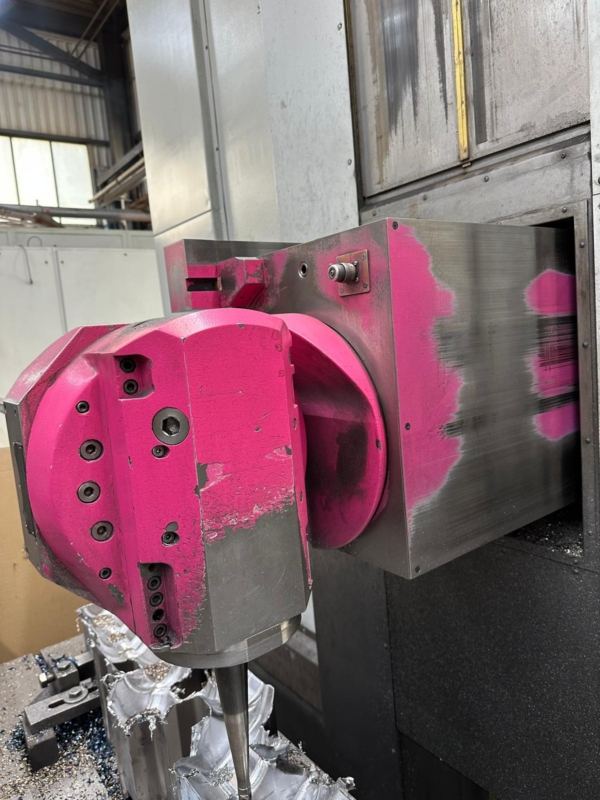

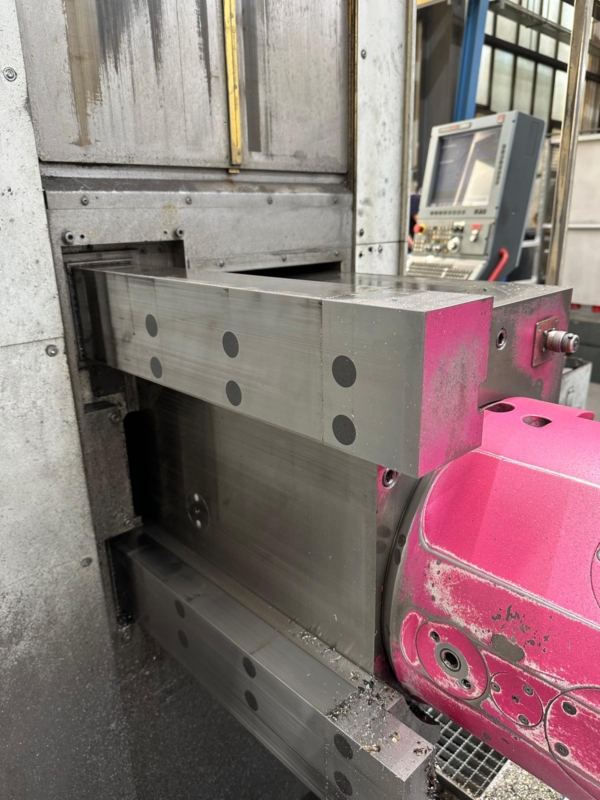

Orthogonal head 2 axes, indexed 1°
Automatically swivelling milling head holder (rear) 360x1 degree
Automatically swivelling milling head holder (front) 180x1 degree

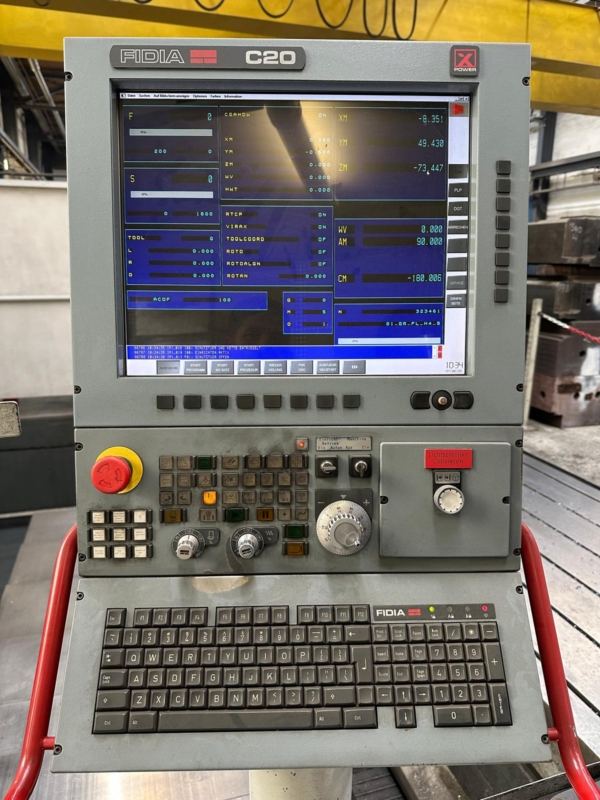

Control: Fidia - C20 / 4H-SB
SK 50 - DIN 69871
Infinitely variable feed range;
X-axis: 2–12,000 mm/min.
Y-axis: 2–18,000 mm/min.
Z-axis: 2–18,000 mm/min.
Rapid traverse;
X-axis: 12,000 mm/min.
Y-axis: 18,000 mm/min.
Z-axis: 18,000 mm/min.
Spindle/auto. Milling head: Speed 22 - 4,000 rpm
Torque max. 1180 Nm

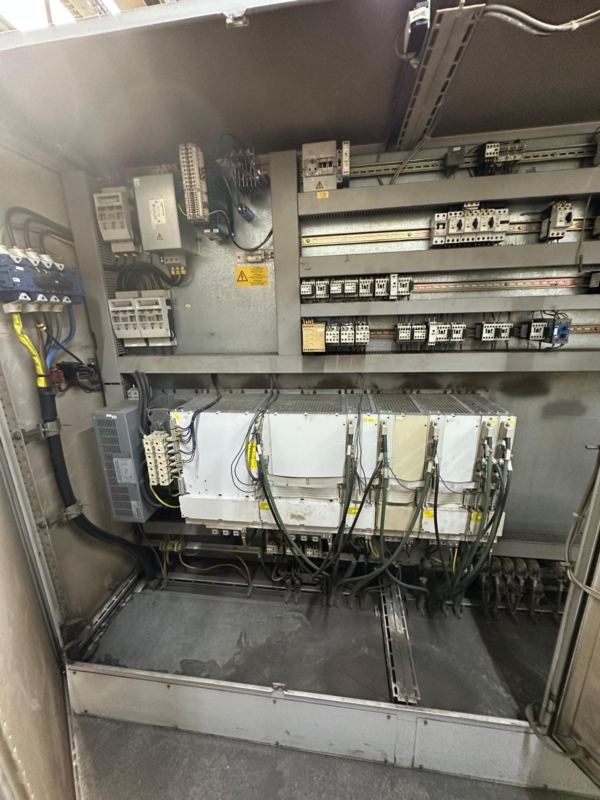

Total current load: approx. 50 kVA/80 A.
Without clamping plate
Without chip conveyor
