Crossbeam travel: 700mm
Crossbeam support Travel from centre of rotation to the right: 700mm
Crossbeam support Travel from centre of rotation to the left: 700mm
Machine table drive
Main drive power: 80kW
Number of gearboxes: 2
Step change: 3.84
Speed range of the 1st gear stage: 2-32-139 rpm
Speed range of the 2nd gear stage: 9-125-500 rpm
Max. Machine table load: 6 tonnes

Feed drive
Cross beam support Horizontal feed speed: 0.1 - 8 m/min
Cross beam support Vertical feed speed: 0.1 - 8 m/min
Cross beam support Rapid traverse speed horizontal/vertical: 8 m/min
Cross beam adjustment speed: 425 mm/min

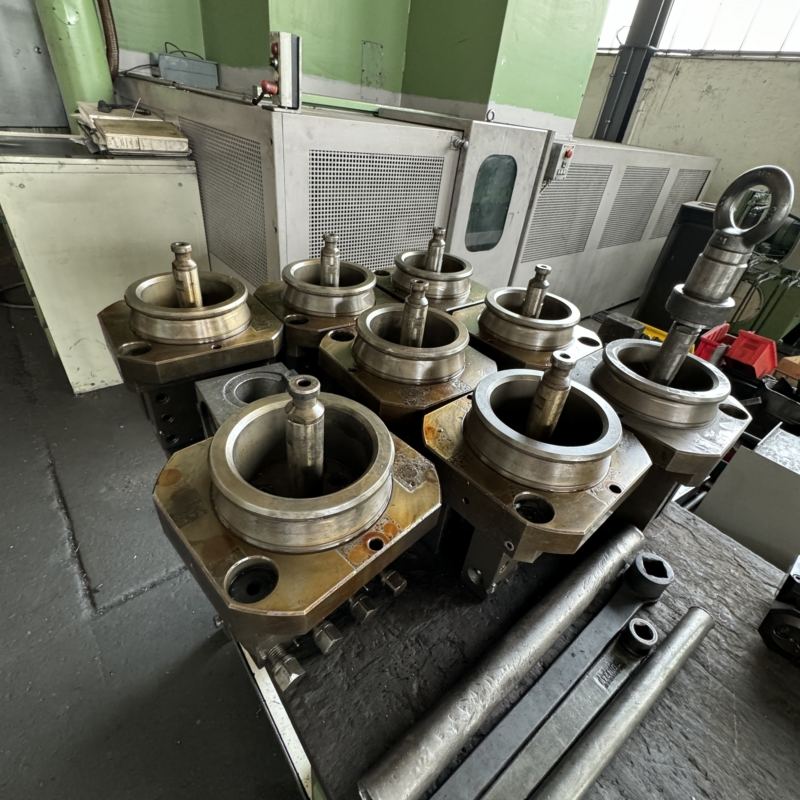

Tool system
Tool system: 180.1
Cutting force on the turning tool: 30 kN
