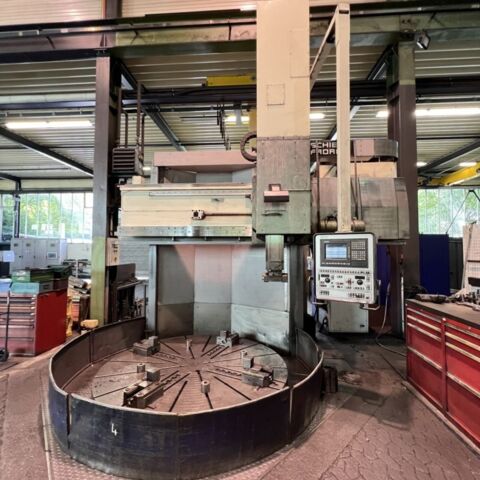

SCHIESS-FRORIEP 27 DE 250 - Retrofit
Vertical Turret Lathe - Single Column
| Order-No. | ARK3 |
| Make | SCHIESS-FRORIEP |
| Built in | 1977 |
| Control Name | Siemens Sinumerik 840 |
| Condition | Used |
| Location | Siegen |
| Delivery Terms | available immediately |
| Quotation | From foundation |
| Price | upon request |
| faceplate diameter |
|---|
| 2500 mm |
| swing diameter |
|---|
| 2700 mm |
| turning height |
|---|
| 2000 mm |
| cross rail - adjustment |
|---|
| 1500 mm |
| workpiece weight max. |
|---|
| 20.000 kg |
| total power requirement |
|---|
| 71 kW |
| Control |
|---|
| Siemens Sinumerik 840 |
Single-column vertical lathe 2000 x 2000mm
Retrofit: 1997
Gr. turning diameter: 2700mm
Gr. distance f. face plate to bottom of toolholder: 2150mm chisel holder: 2150mm
Support swivelling up to 30°
Chisel cross-section: 240x240mm
small plunging diameter: 300mm
Special equipment:
Re-moulding, taper turning, thread cutting, constant cutting speed
