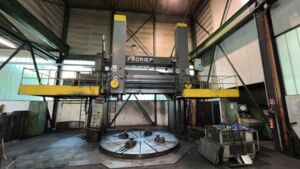

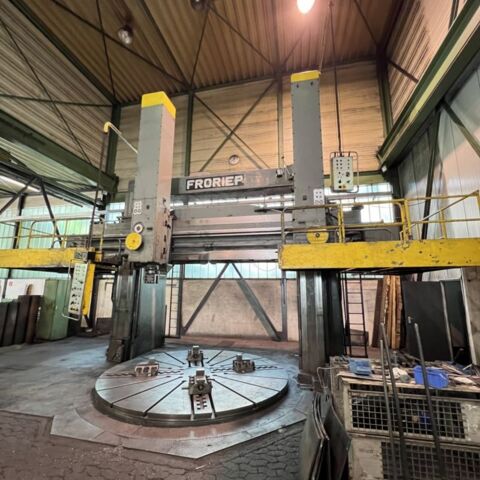

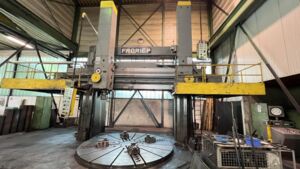

FRORIEP KE 370
Vertical Turret Lathe - Double Column
| Order-No. | ARK10 |
| Make | FRORIEP |
| Built in | 1961 |
| Condition | Used |
| Location | Siegen |
| Delivery Terms | According to the arrangement |
| Quotation | From foundation |
| Price | upon request |
| turning diameter |
|---|
| Max. 4200 mm |
| faceplate diameter |
|---|
| 3700 mm |
| turning height |
|---|
| Max. 2600 mm |
| workpiece weight |
|---|
| Max. 35 t |
| Power |
|---|
| 80 PS |
| turning speeds |
|---|
| 125-500-1500 U/min |
DIGITAL CONTROL DISPLAY
Largest diameter with the crossbeam supports: 4200mm
Largest turning diameter with side support: 3900mm
Largest turning height above faceplate: 2500
Side support
1 vertical grinding ram: 1200mm stroke (out of operation)
1 turning ram: 1400mm stroke
