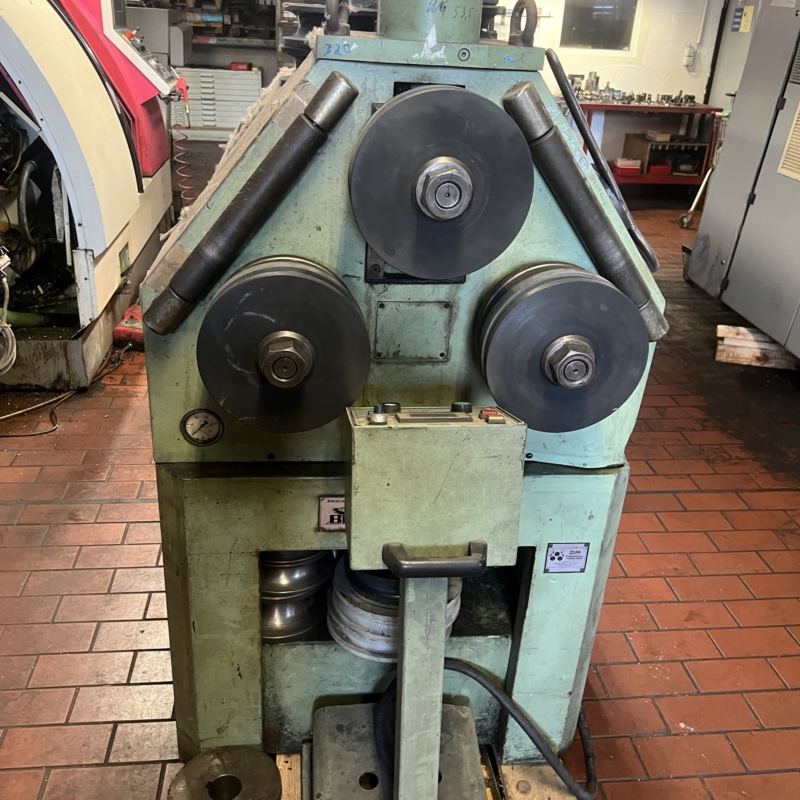

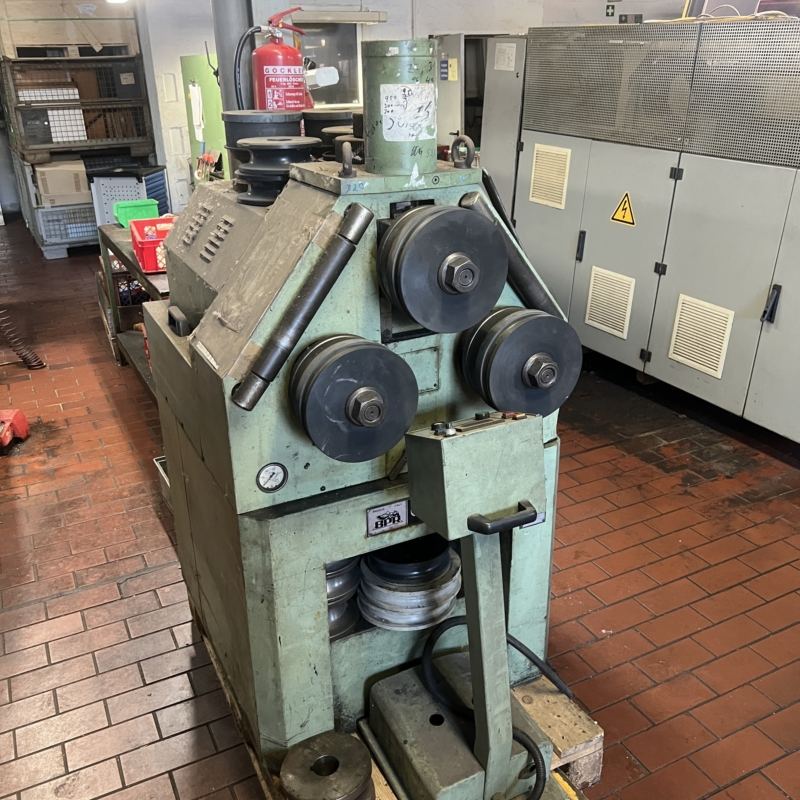

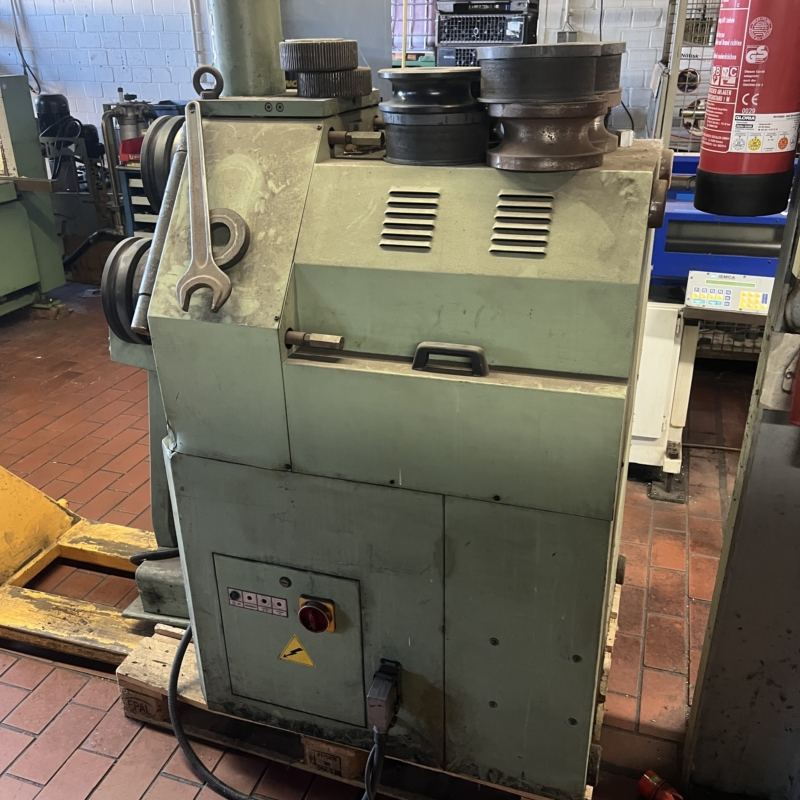

BPR Brescia – Model C-602-HE, hydraulic 3-roll profile and pipe bending machine
Technical Data BPR C-602-HE
Specifications

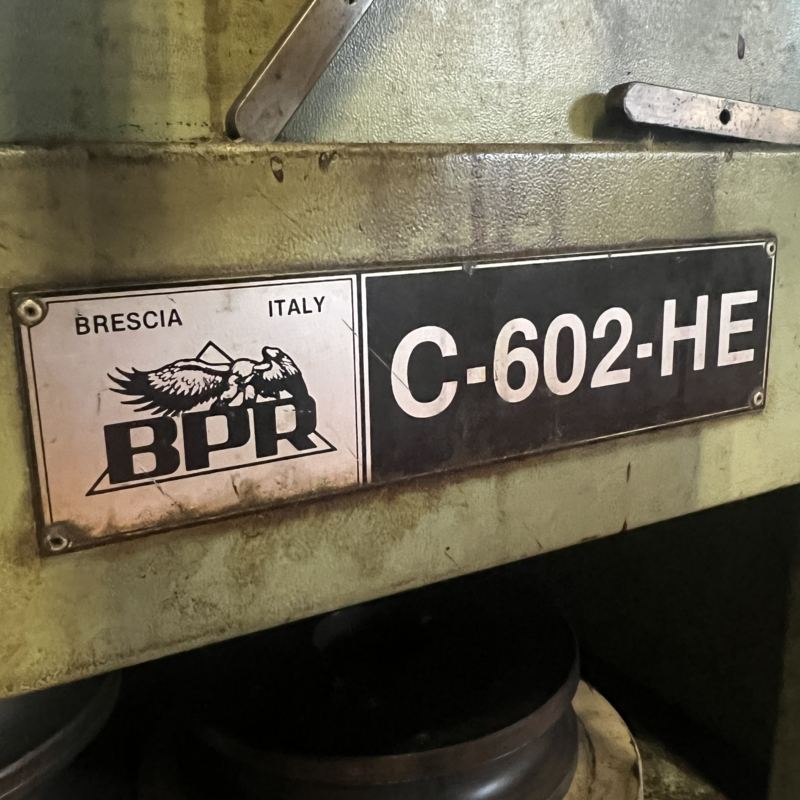

Manufacturer BPR – Brescia, Italy
Model C-602-HE
Type Hydraulic 3-roll bending machine
Operation Horizontal and vertical
Number of rolls 3
Roll diameter 100 mm
Shaft diameter 60 mm
Shaft length 150 mm
Max. roll spacing (center-to-center) 400 mm
Motor power 2.2 kW
Mains voltage 380 V
Dimensions approx. 850 × 1,120 × 1,700 mm
Weight approx. 1,100 kg
Hydraulic feed Yes
Rotation direction Clockwise/counter-clockwise

Information subject to change / without guarantee
