Technical Data – MAZAK QTN-30

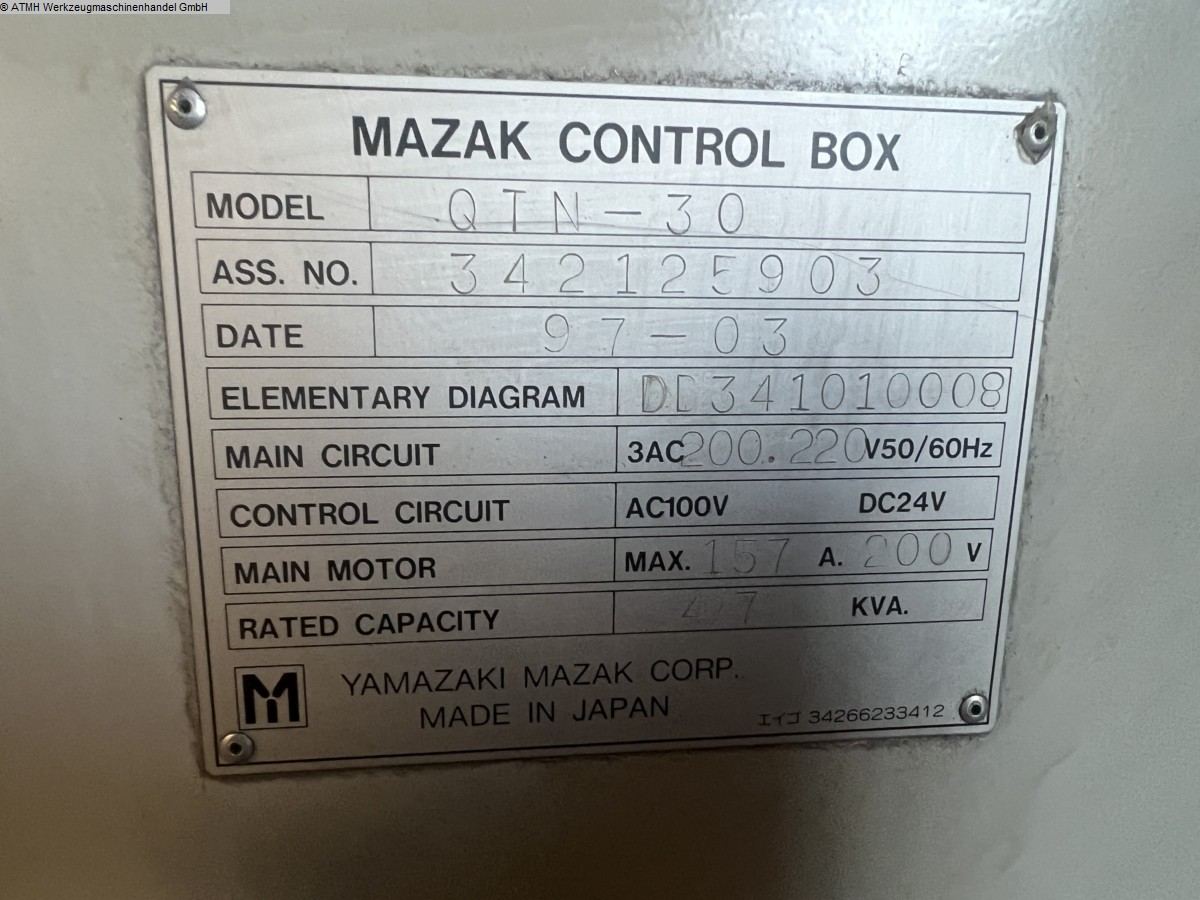

Manufacturer: MAZAK / Yamazaki Mazak
Type: QTN-30
Year of manufacture: 1997

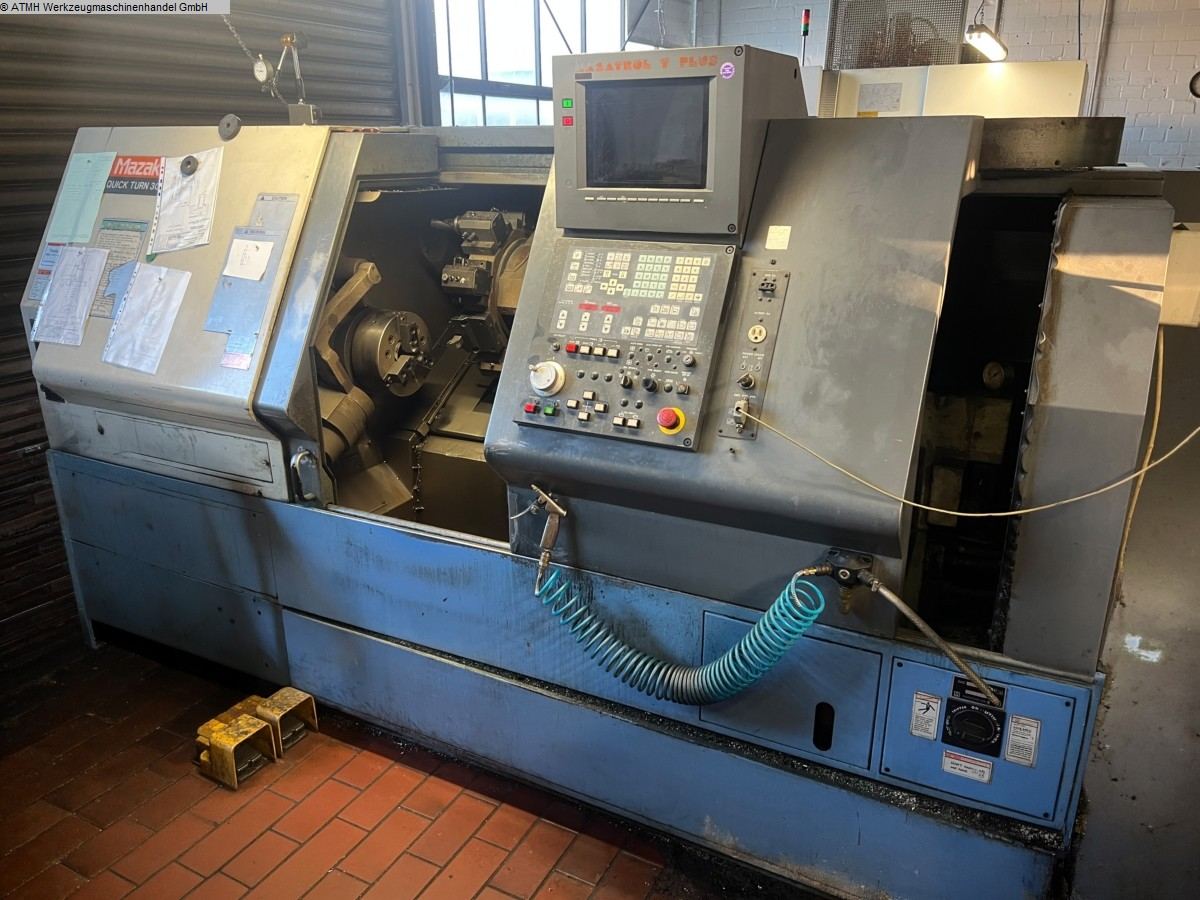

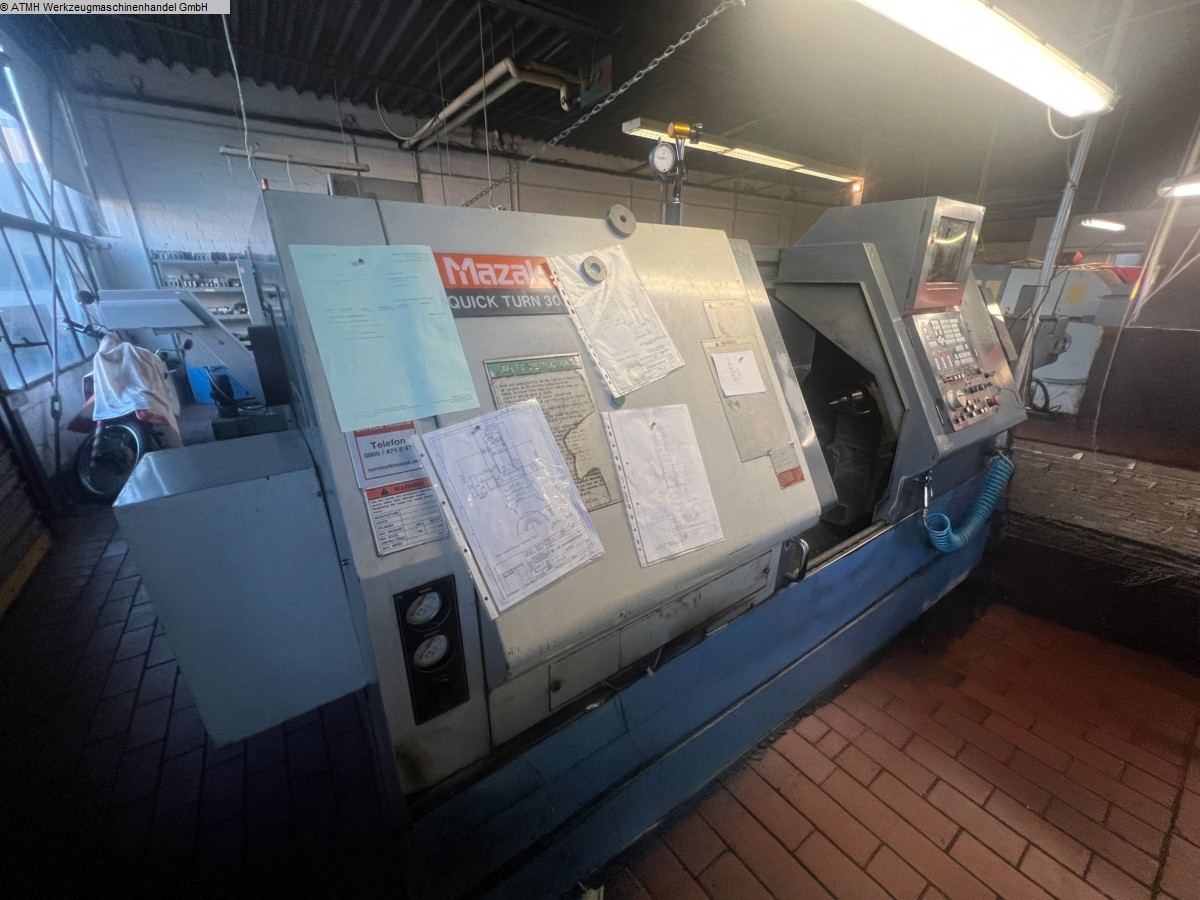

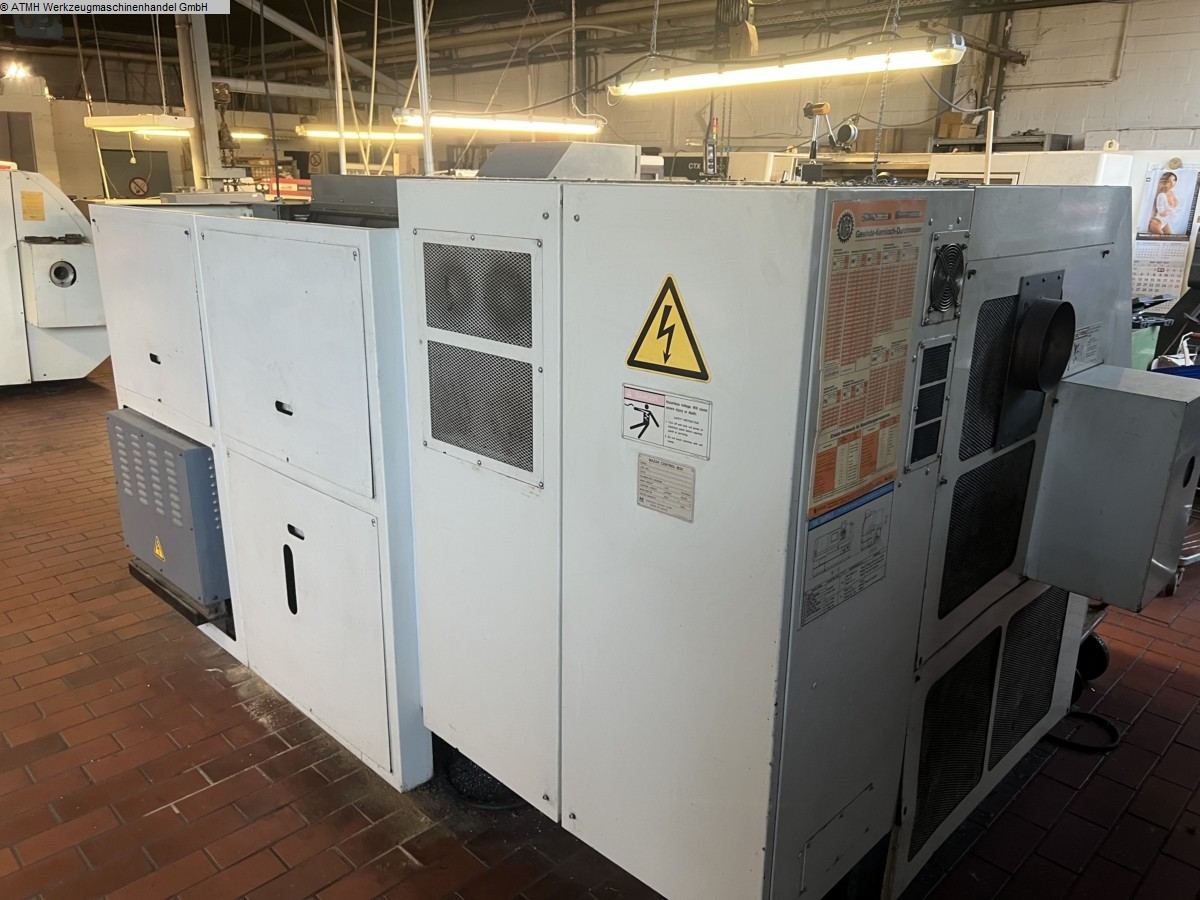

Machine type: Horizontal CNC turning center

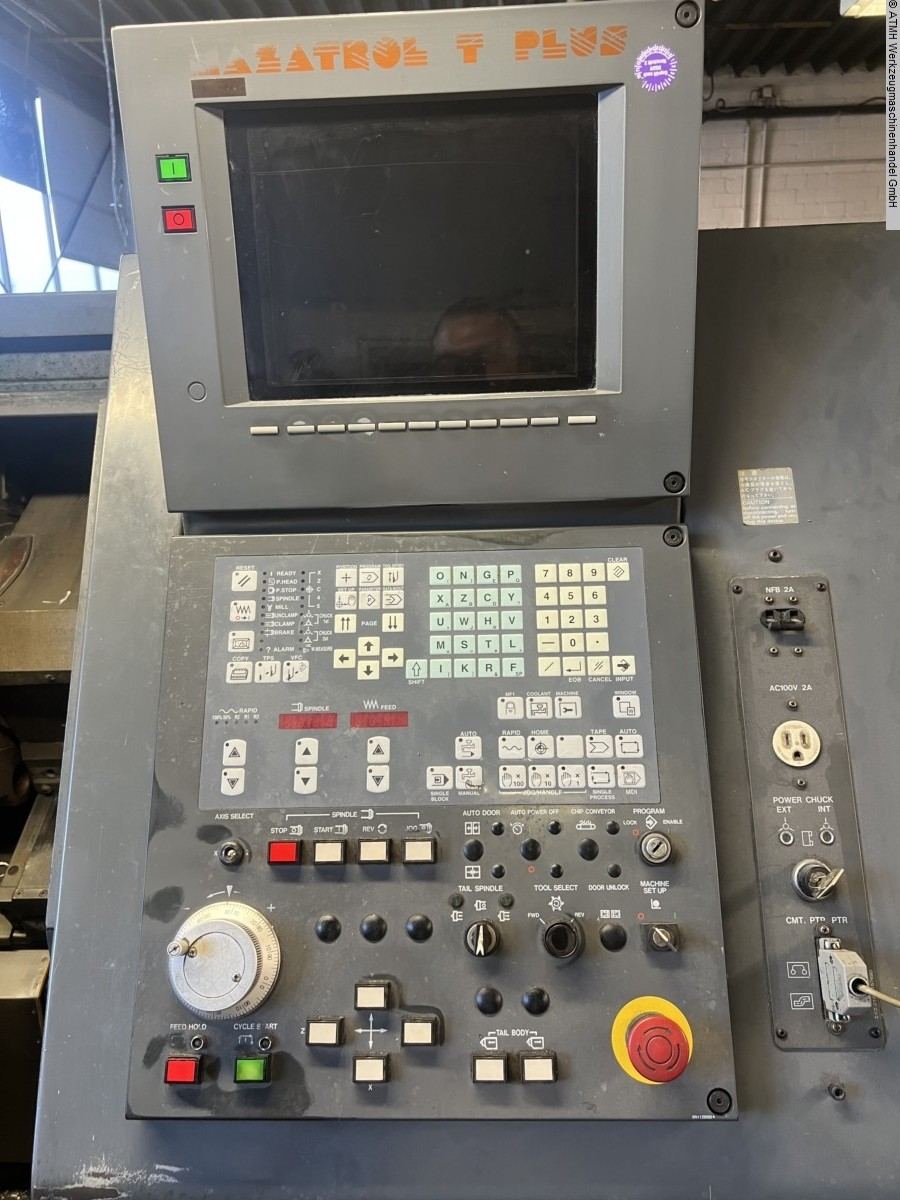

Control system: MAZATROL T PLUS
Number of axes: 2
Max. swing diameter: approx. 510 mm
Max. machining diameter: approx. 310–320 mm
Max. machining length: approx. 1,000 mm
X-axis travel: approx. 200–201 mm
Z-axis travel: approx. 1,010 mm
Spindle speed: approx. 33–3,300 rpm
Spindle bore: approx. 80 mm
Spindle nose: A2-8
Spindle motor: approx. 22 kW

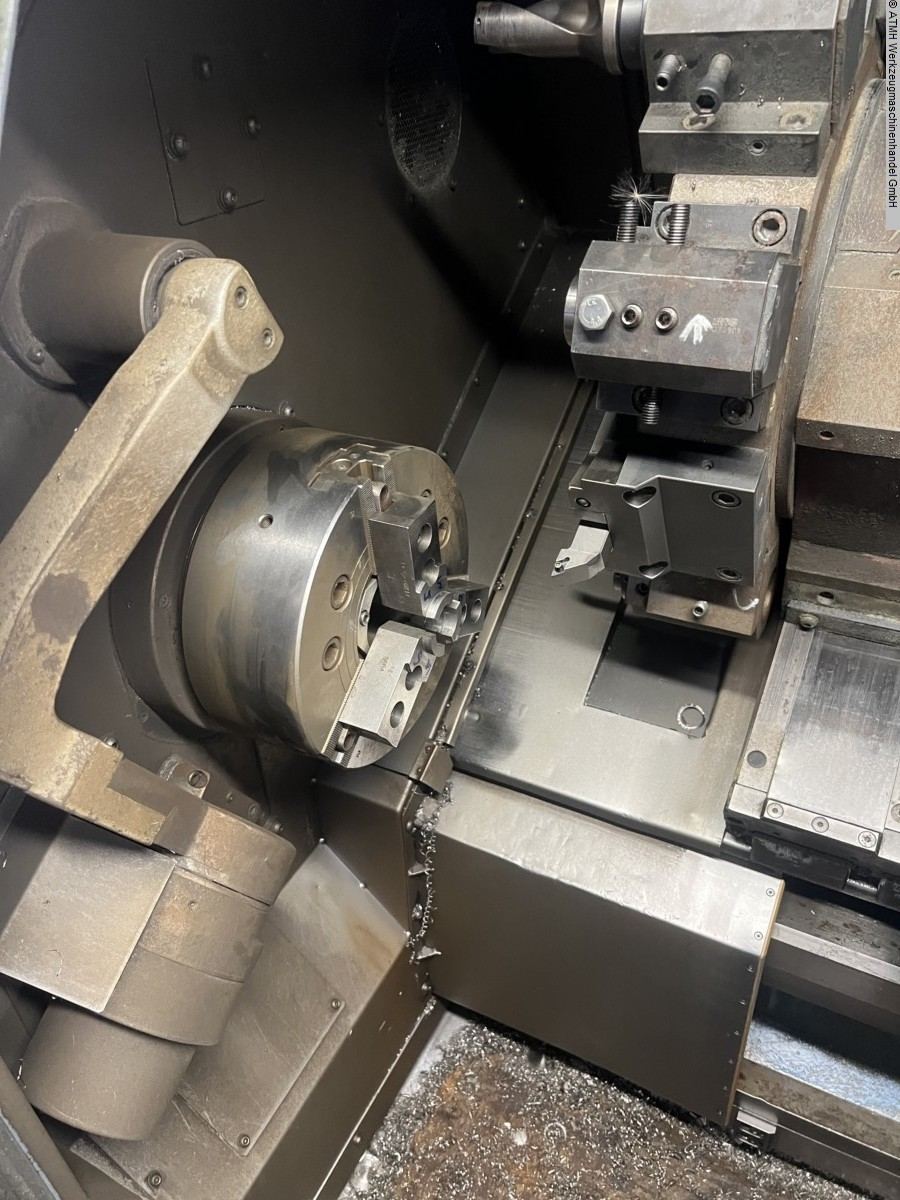

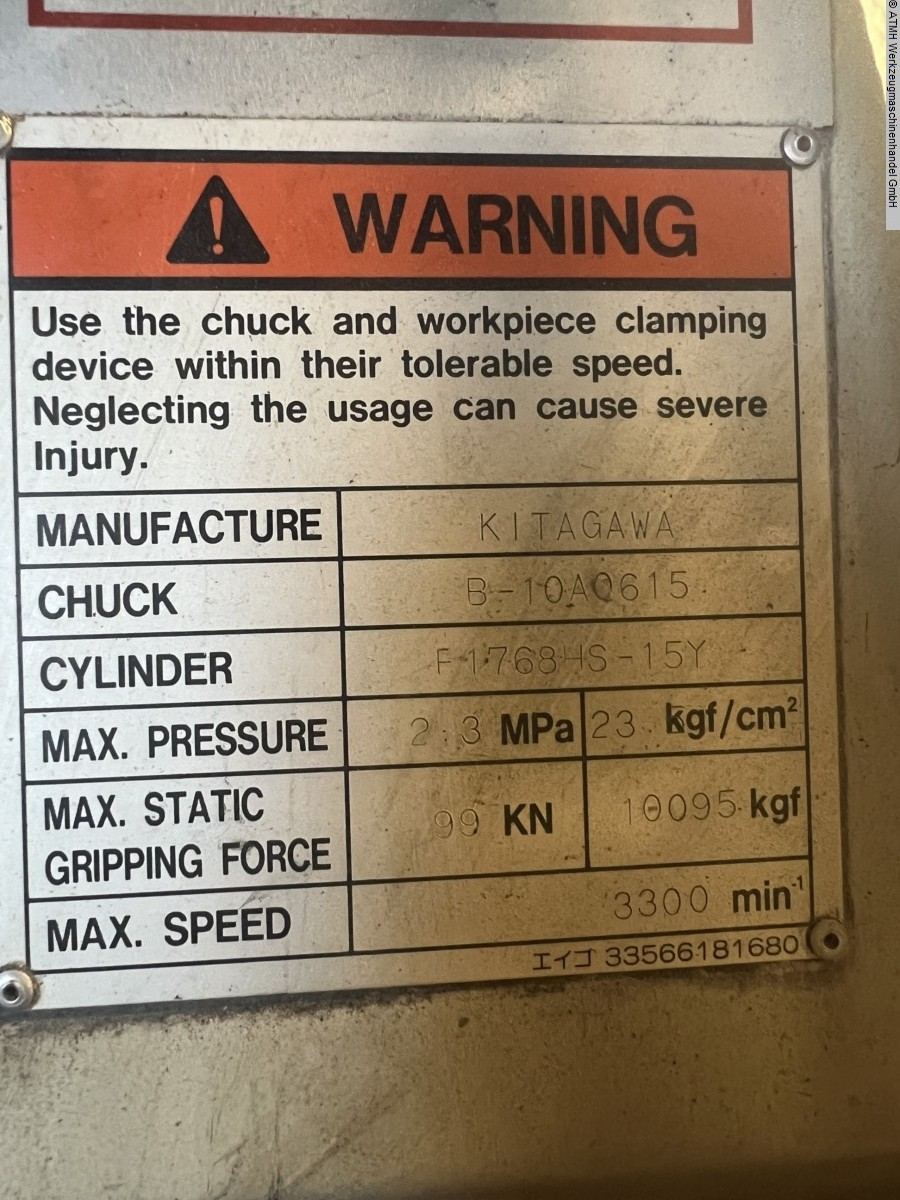

Chuck: Hydraulic, approx. 250–300 mm
Turret: 8-station / 16 tool positions, depending on configuration
Tool holder: approx. 25 × 25 mm

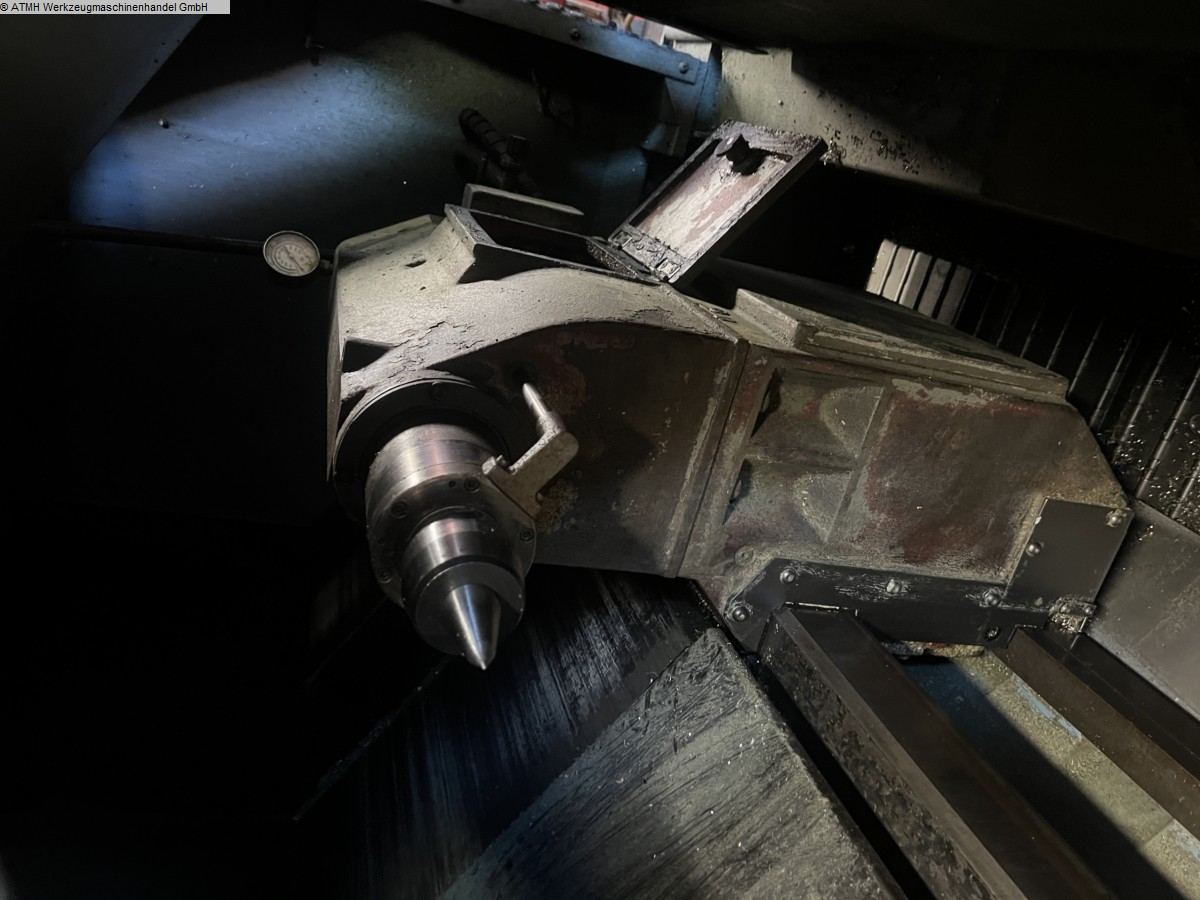

Tailstock: Fully automatic, MT 5
Automatic tailstock: Included
Chip conveyor: Included
Coolant system: Included (depending on equipment)
Machine weight: approx. 4,300–5,300 kg (depending on configuration)
Dimensions: approx. 2,800 × 1,950 × 1,950 mm (depending on configuration)
The specifications regarding the 1997 model year and the QTN-30—featuring MAZATROL T PLUS, Ø510 × 1,000 mm capacity, Ø80 mm spindle bore, 33–3,300 rpm speed range, and a 22 kW spindle motor—are confirmed by a specific QTN-30 offer from 1997. Subject to change and without guarantee – Technical data
