Manufacturer: KASTO
Type: HBA 360 AU
Year of manufacture: 1996
Machine number: 6016 109 181
Weight: approx. 2,600 kg
Electrical connection: 400 V
Frequency: 50 Hz
Power supply: 3~ (three-phase current)
Connected load: 10.0 kW
Rated current: 35.0 A
Maximum cutting range: approx. 360 × 360 mm
Maximum round cut: approx. 360 mm
Saw band length: approx. 5,334 mm
Saw band dimensions: approx. 41 × 1.30 mm (depending on version)
Cutting speed: approx. 14–102 m/min
Automatic material feed: approx. 600 mm stroke
Saw band drive: approx. 5.5–6.0 kW

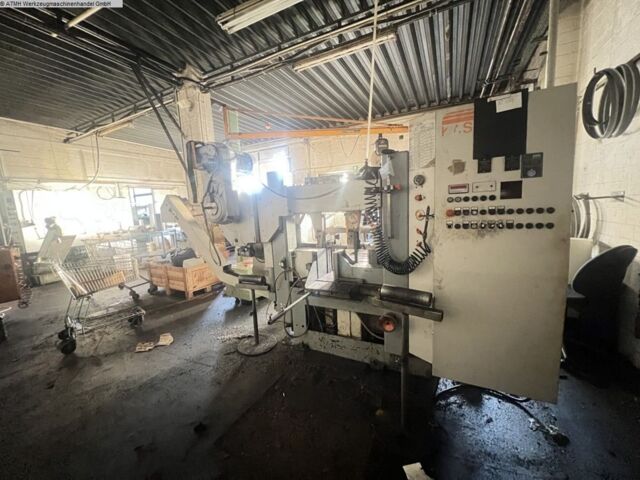

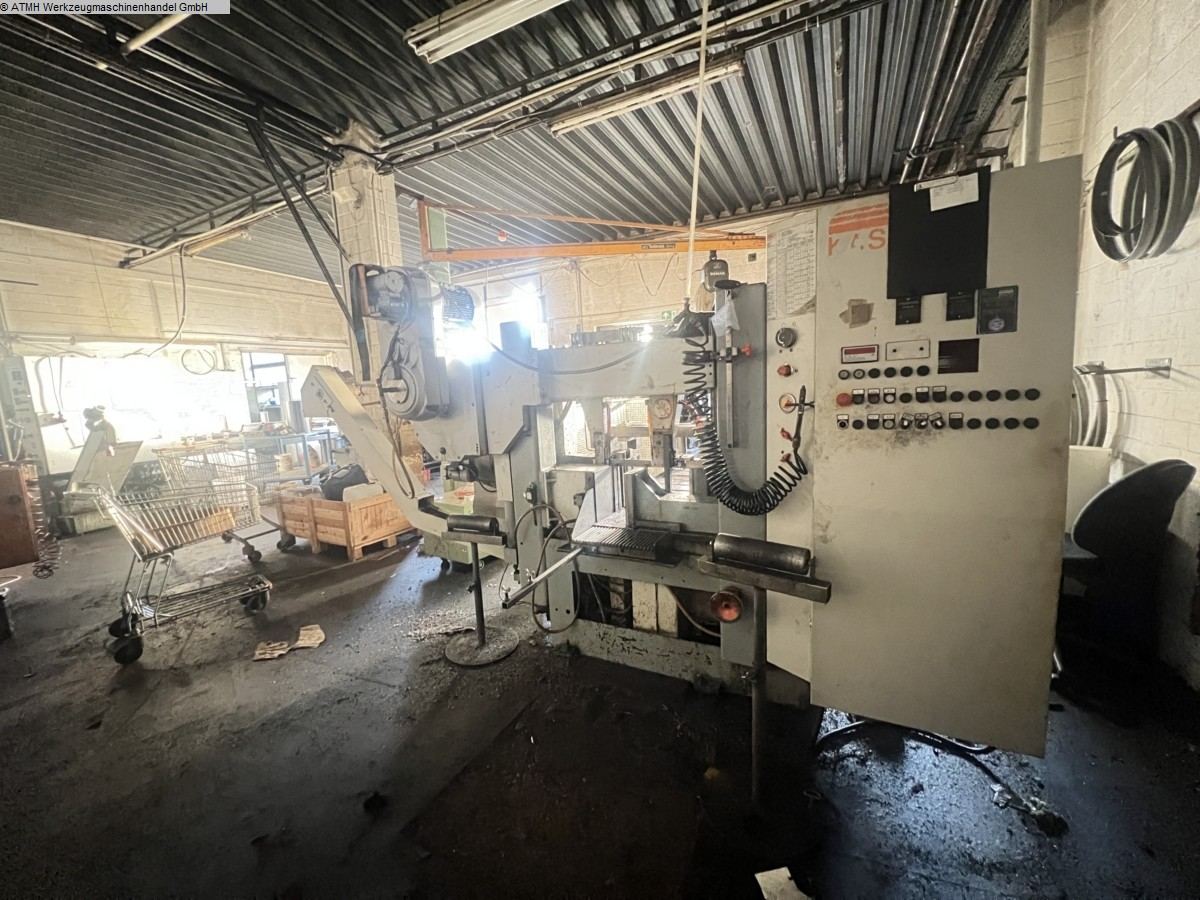

Version: automatic high-performance band saw machine
Suitable for sawing round, square, and profile material
CE marking present

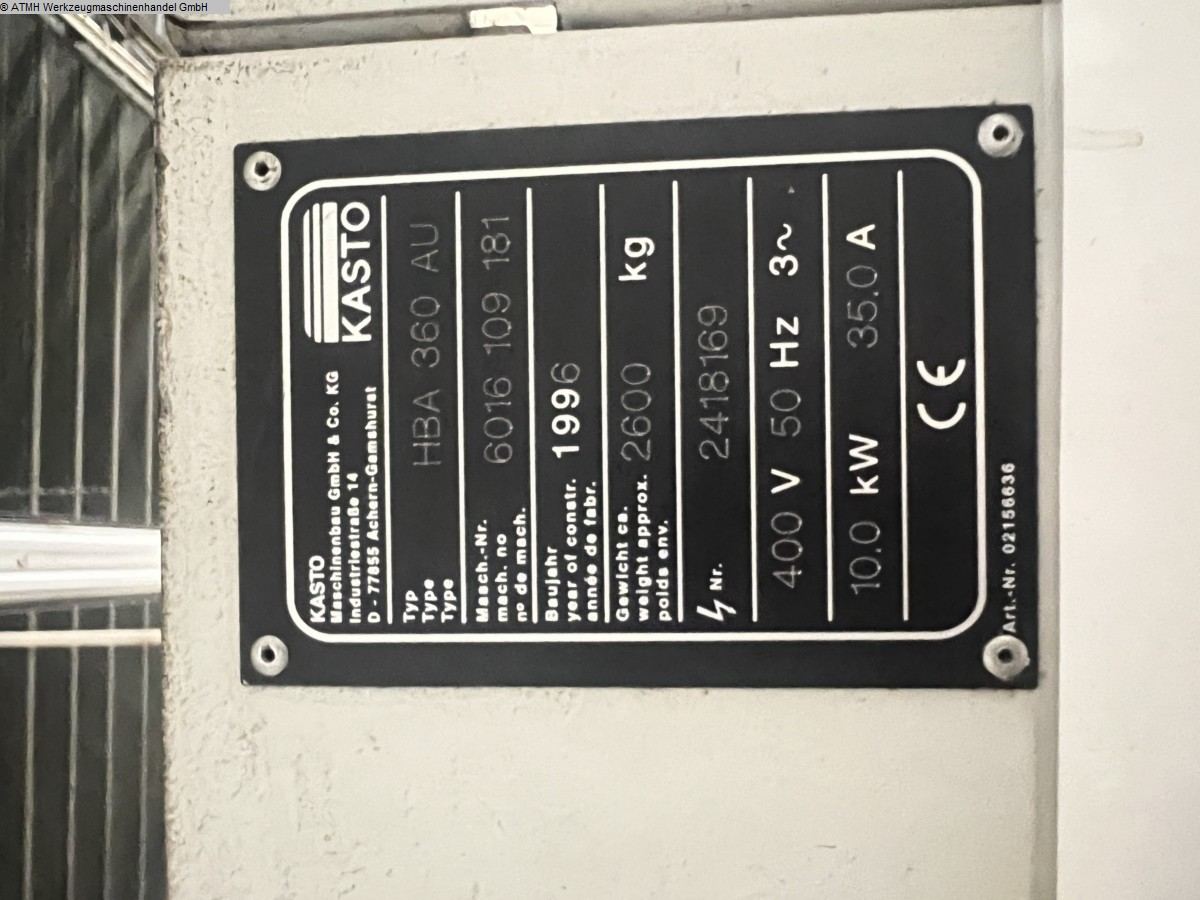

Note: The technical data listed above has been compiled based on the nameplate of the specific machine and available information regarding the KASTO HBA 360 AU. Individual technical specifications may vary depending on the year of manufacture, serial number, and equipment configuration.
SUBJECT TO CHANGE AND WITHOUT GUARANTEE – TECHNICAL DATA
