Manufacturer: DMG GILDEMEISTER

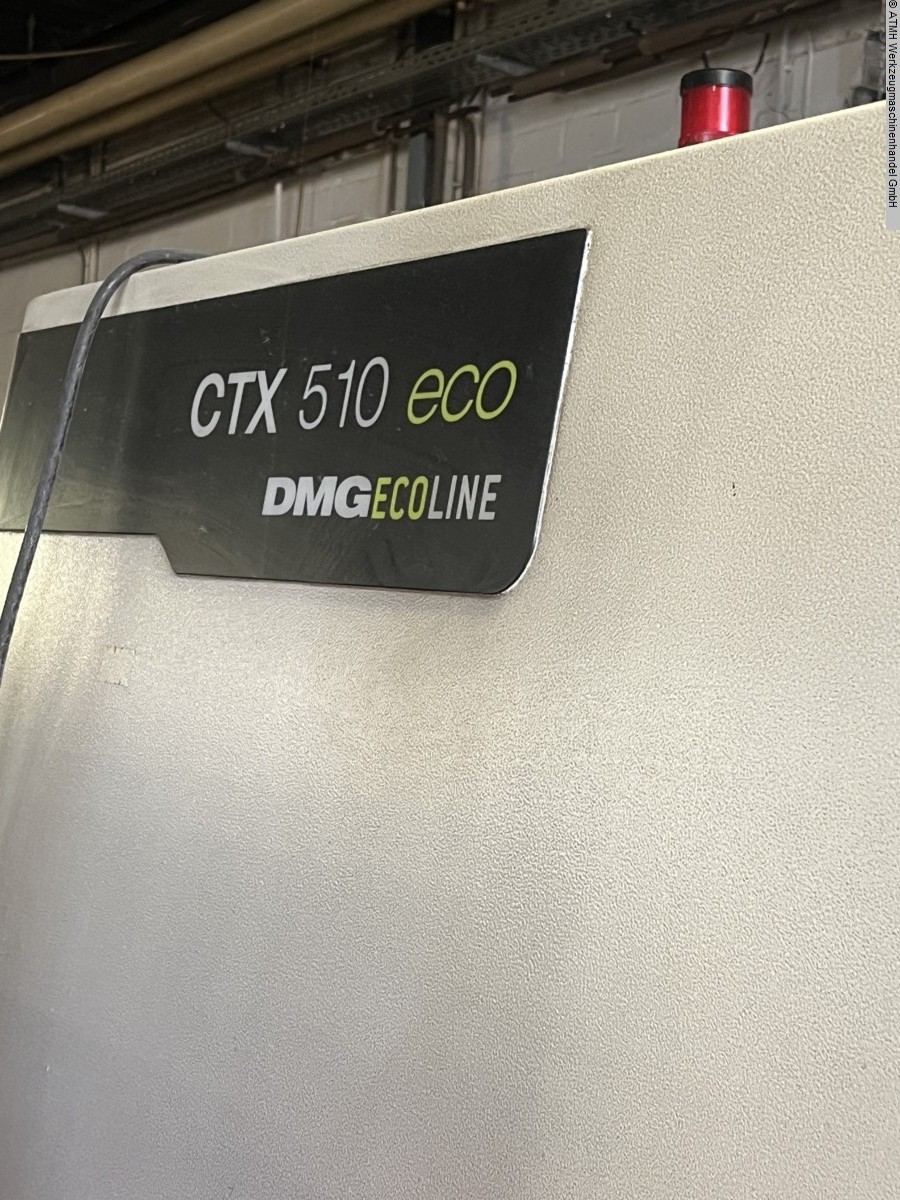

Model: CTX 510 eco
Year of manufacture: 2008

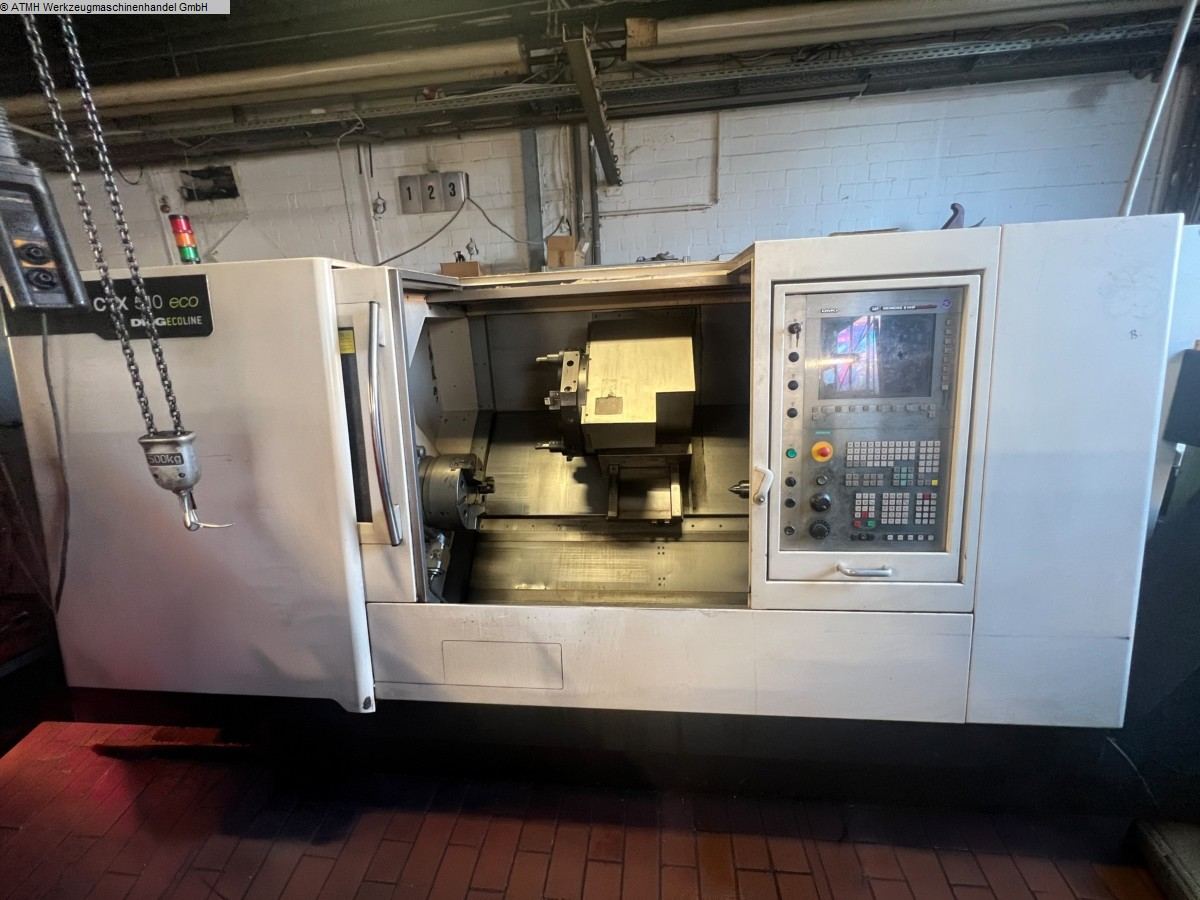

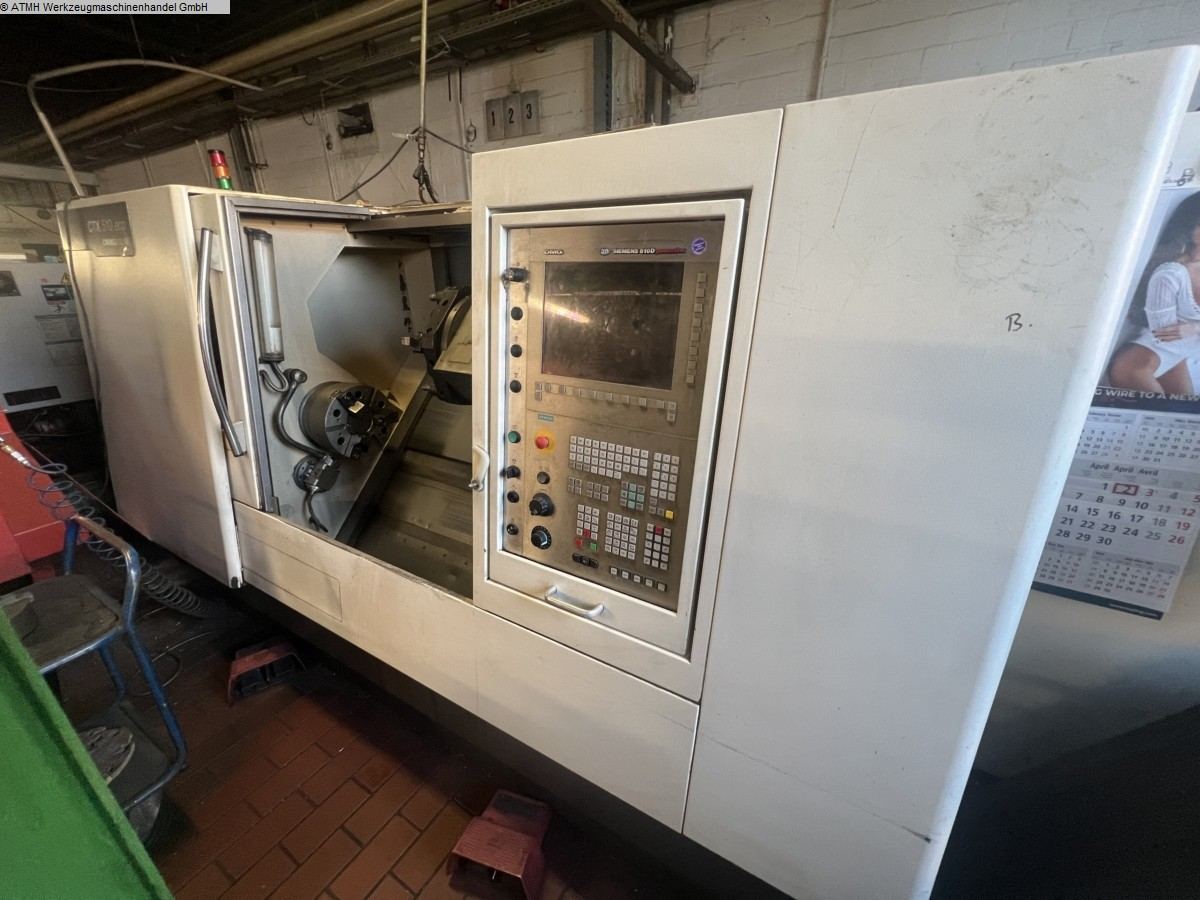

Machine type: CNC lathe / turning center

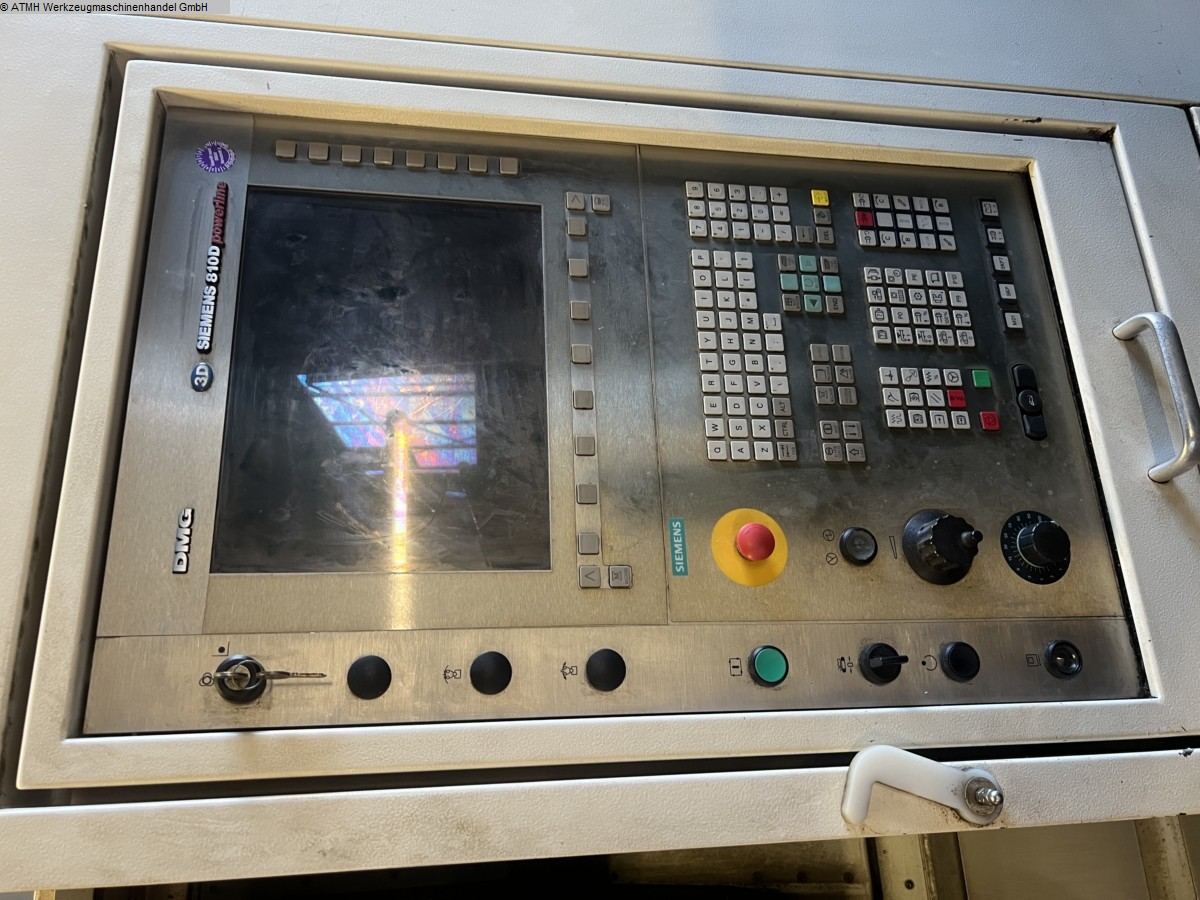

Control system: Siemens SINUMERIK 810D Powerline
Max. spindle speed: 3,250 rpm
Spindle speed range: approx. 500–3,250 rpm
Spindle power: 33 kW at 40% duty cycle / 22 kW at 100% duty cycle
Spindle torque: 630 Nm at 40% duty cycle / 420 Nm at 100% duty cycle
X-axis travel: 300 mm
Z-axis travel: 1,050 mm
Max. turning diameter: 465 mm
Max. swing / turning diameter: 680 mm
Spindle bore / bar capacity: approx. 76–92 mm (depending on configuration)
Front spindle diameter: 140 mm

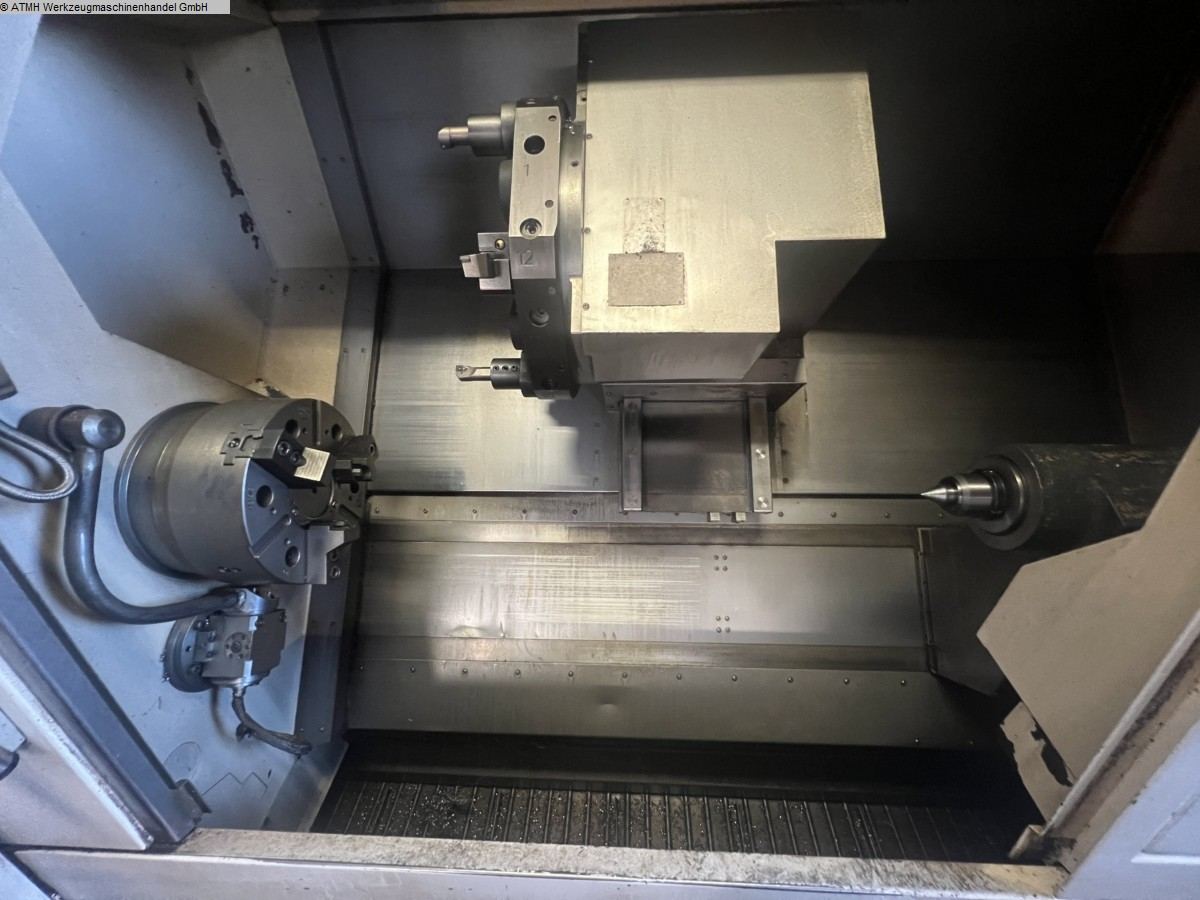

Turret: 12-station
Driven tools: Depending on equipment
Driven tool speed: up to 4,000 rpm
Driven tool power: approx. 8.4 kW
Chuck: 250 mm or 315 mm
Max. workpiece weight between centers: 350 kg

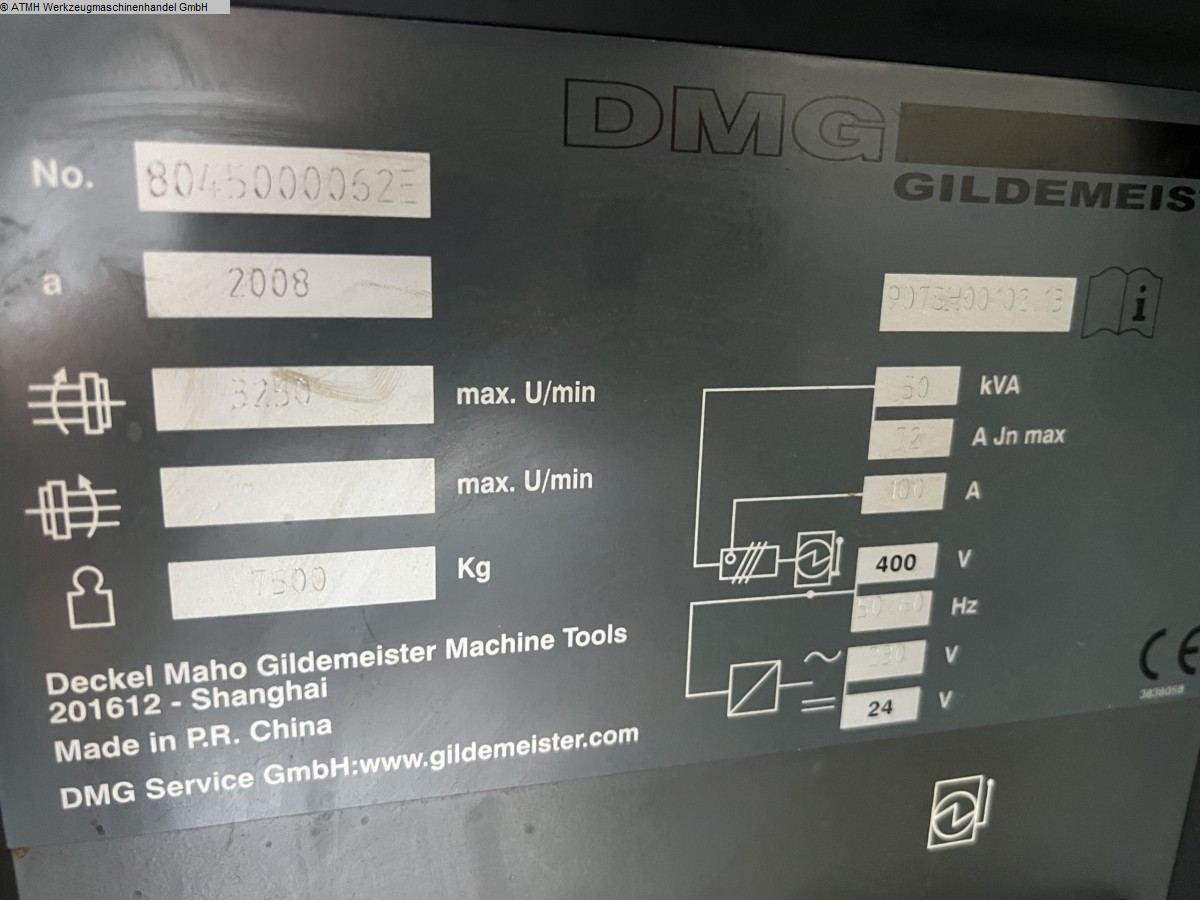

Total power requirement: approx. 50 kVA
Power supply: 400 V, 50/60 Hz
Machine weight: 7,500 kg

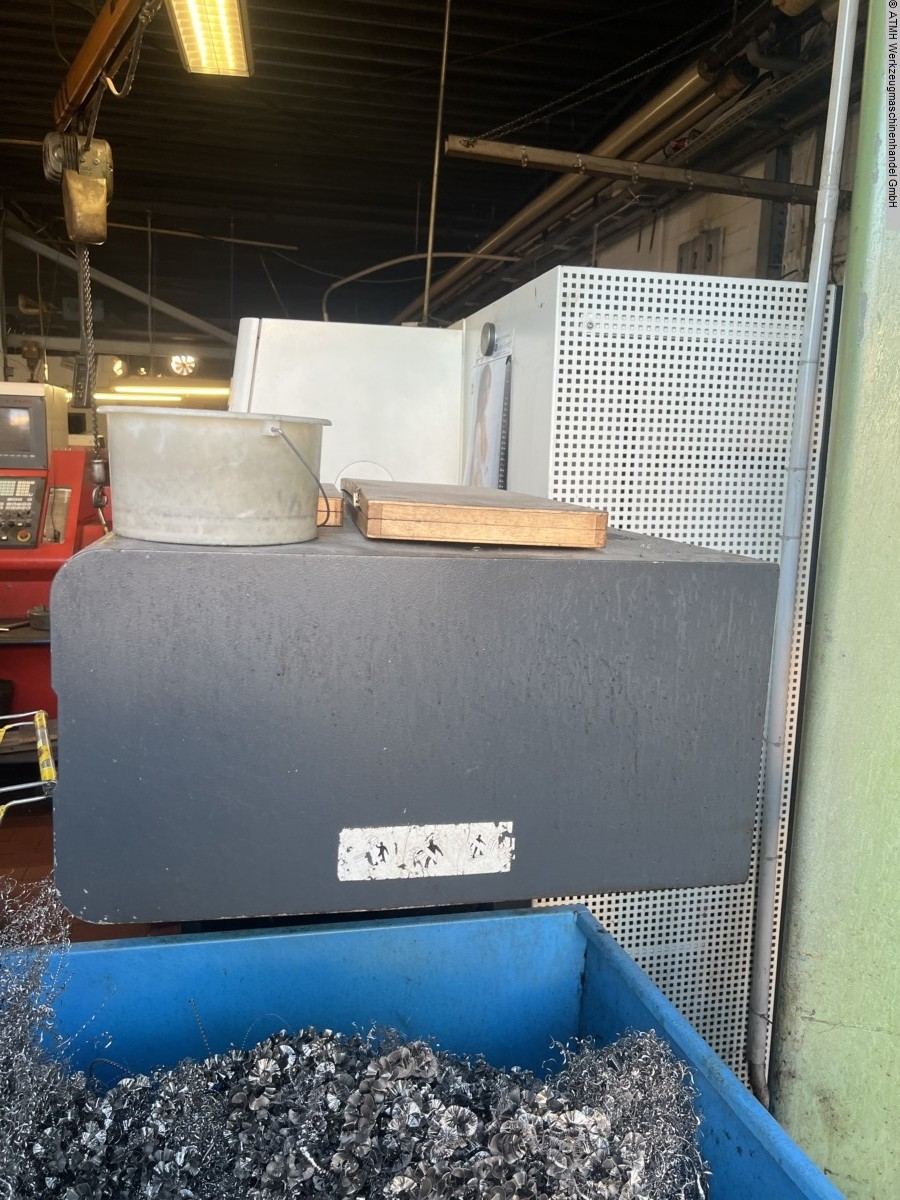

Incl. chip conveyor
Note: All technical specifications are for guidance only and are subject to change. Actual machine data may vary due to different equipment variants and subsequent modifications. No warranty or guarantee is provided regarding the accuracy or completeness of the technical specifications. The specifications and actual condition of the offered machine are the sole determining factors.
